SECURITRON EMB-TDM
ELECTRO-MECHANICAL BAR - THROUGH DOOR MOUNT KIT
INSTALLATION INSTRUCTIONS
1. PRODUCT DESCRIPTION

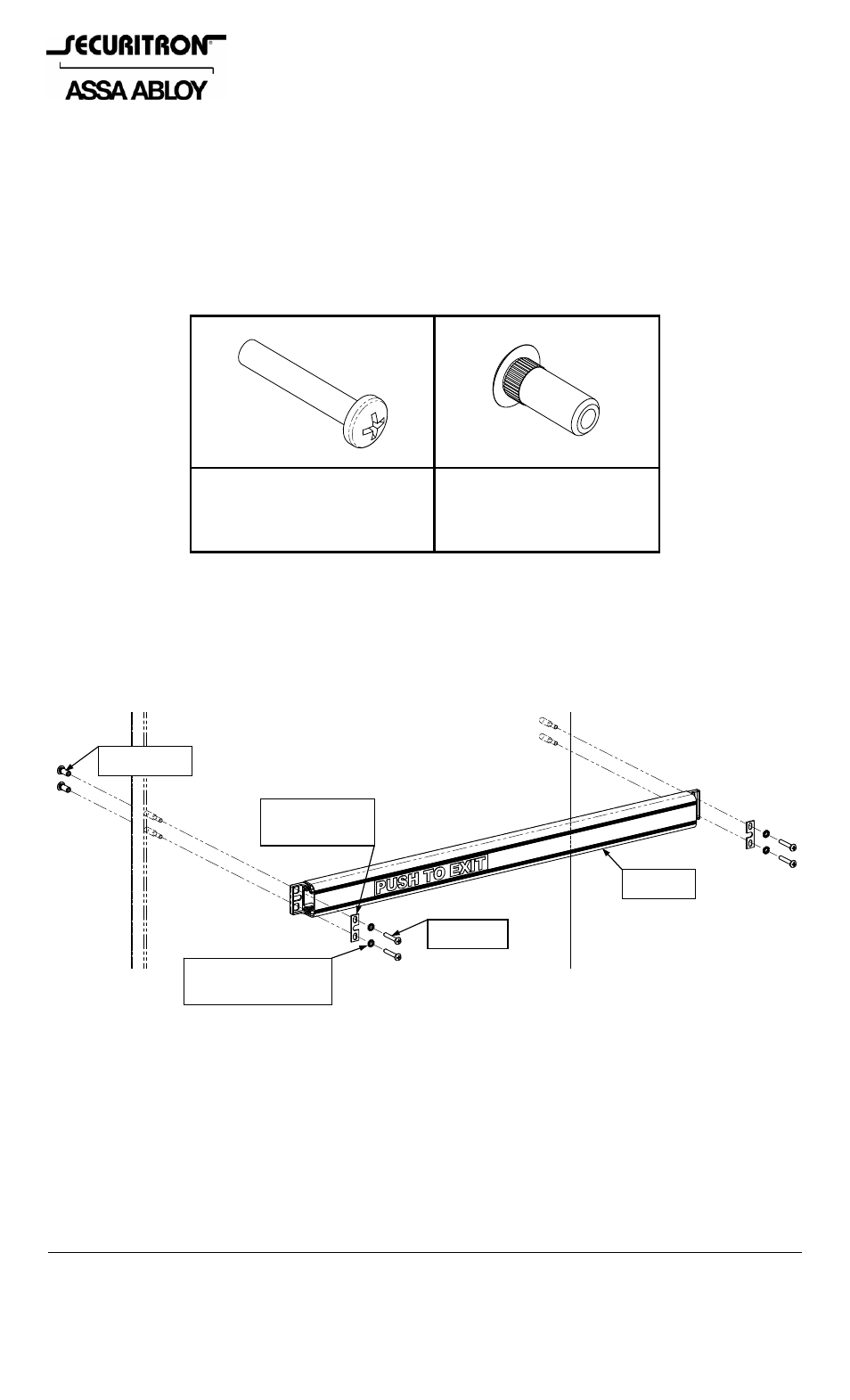

The EMB-TDM kit has been developed to provide the necessary components to create a very
secure through-the-door attachment of the EMB to a solid wood or hollow metal door. Along
with these instructions, the kit should include the following items:
4X
1/4-20 X 1-1/2” Long
Phillips Pan Head Screws
4X
1/4-20 Sex Bolts
2. RECOMMENDED TOOLS
Power Drill Drill Bits: 9/32” [7.0mm] and 3/8” [9.5mm]
Center Punch Screwdriver: #2 or #3 Phillips
3. INSTALLATION INSTRUCTIONS
* The end mount retainers and external tooth washers shown are provided with the
original EMB hardware.
3.1. BAR POSITIONING AND MOUNTING HOLE MARKING
All marking and door preparation should be performed in accordance with the EMB Series
product installation instruction manual.
Screws
EMB
*External Tooth
Washers
Sex Bolts
*End Mount
Retainers
