RECON 26419 Xenon Strobe Light Kit - Manual (Page 9)

*** Be Sure To Insulate Wires Where They Enter Firewall, Failure To Do So
May Cause SEVERE Damage To Controller, or To The Vehicles Computer
System. ***
‐
Run Them Up To Location Where The Power Supply Will Be Mounted.
‐
Attach Positive and Negative Wires To Supplied Harness (Red: 12V Power,
Black: Ground (-) Purple: Low Power)
‐
*If Low Power Option Is Not Desired Be Sure To Cut And Cap
Wire. Along With The Second Harness In The Kit (Blue, Yellow, Green)
This Will Not Be Used In This Install.
‐

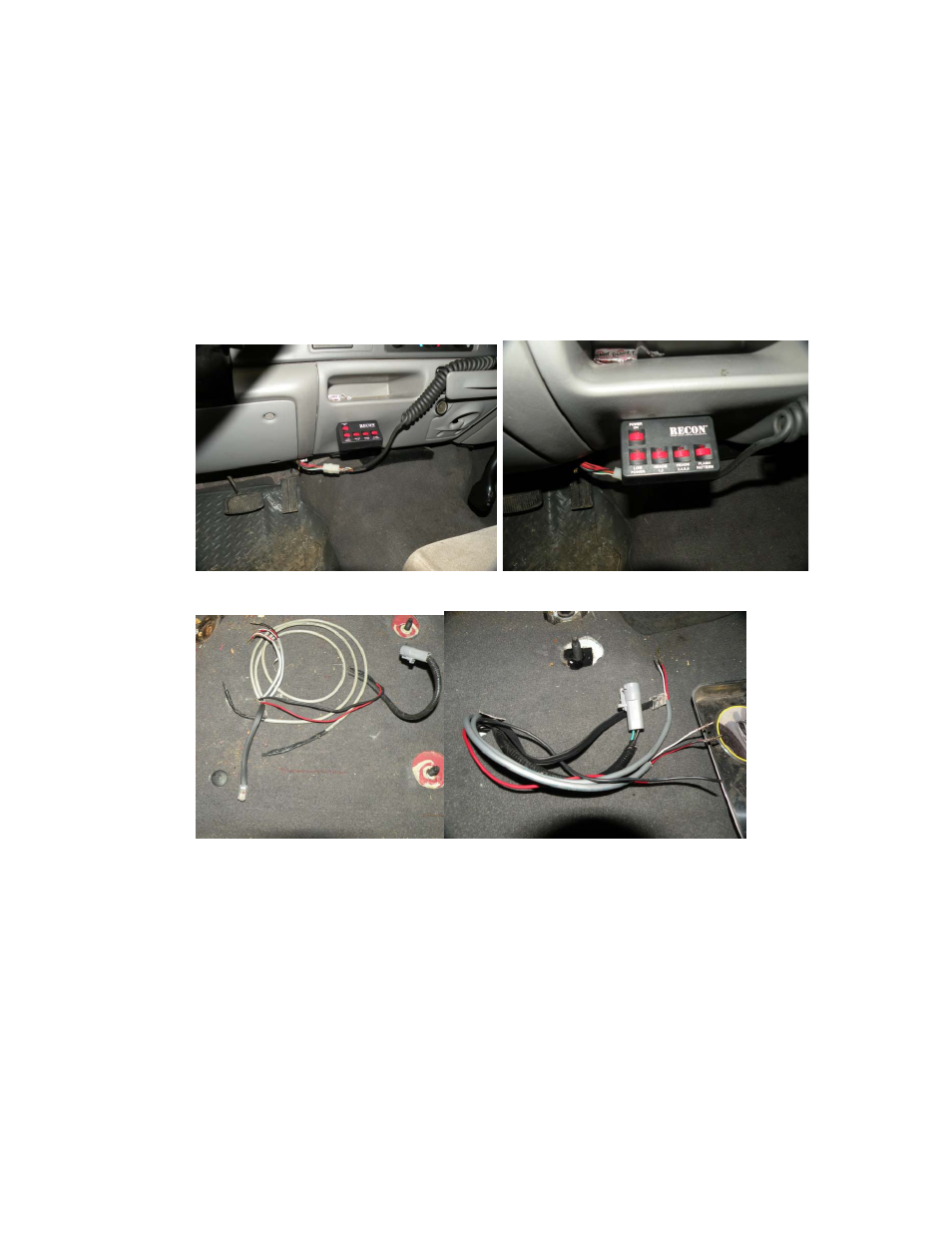

Find The Desired Location To Mount The Controller Head.
‐
Using The Supplied 2 Screws and 2 Washers Attach Controller.
‐
Using The Data Cable Supplied In the Kit, Run Once End From The
Controller To The Power Supply.
‐
Once All Required Wires Are Ran Mount The Power Supply Using
Conductive Self Tapping Screws (Not Included In Kit). Avoid All Exposed
Wires While Drilling Into Location.
‐
Using The Same Method Of Connection For Connecting The Strobe End of
The Cables, Install Supplied Clips On The Male Ends Of The Cable.
‐
Connect The Cables To The Power Supply, Plug In According To Picture
Displayed On The Power Supply. * Depending On Application &
Preference, Heads 1 & 2 Control The Front, 3,4,5,6 Control The Rear. (If
No Additional Strobes Are Purchased, 5&6 Will Remain Unused At This
Time.)
