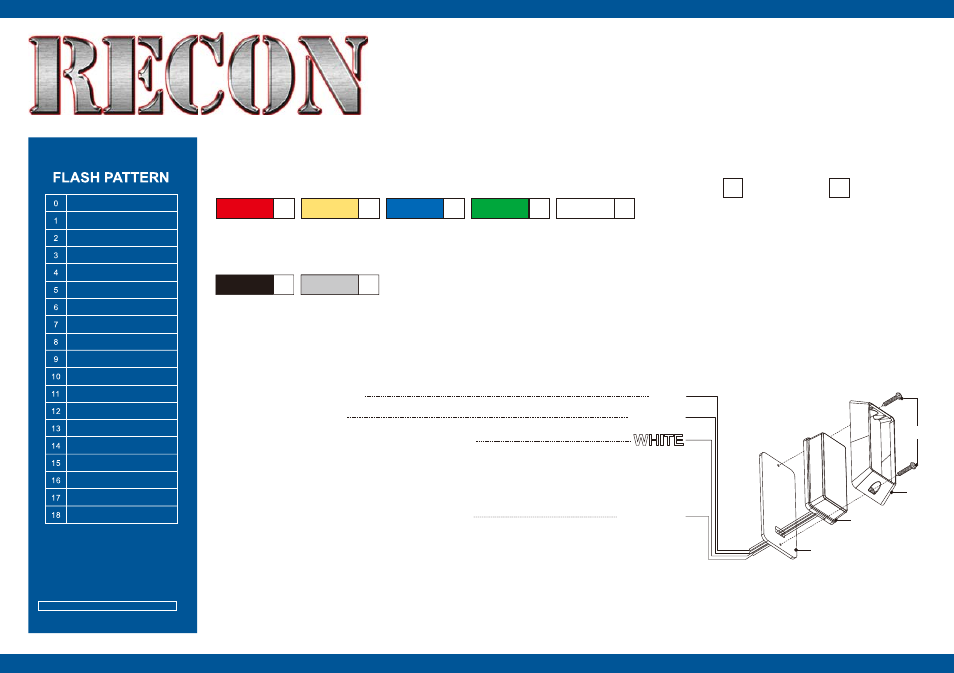

RECON 26422 LED Strobes User Manual
Led color, Flange color, 24 vdc 12 vdc

090320
WHITE
RED
AMBER
BLUE
GREEN
LED COLOR
CHROME
BLACK
FLANGE COLOR
BLACK
RED
YELLOW
To +VDC (fuse @ 3A)
To Chassis Ground
For Synchronization & Flash Patterns
Group1 Heads: (Wiring- WHITE connected to RED) will flash together
Group2 Heads: (Wiring- WHITE not connected to RED) will flash together
*Group1 Heads will alternate with Group2 Heads*
Connect YELLOW wires of all heads together for synchronization
*All heads must be set at the same pattern
For Simultaneous or Alternating Flash
SCREWS
LIGHTHEAD
FLANGE
FOAM RUBBER
24 VDC
12 VDC
Random (default)
Single (split)
Double (split)
Quad (split)
Quint (split)
Mega (split)
Ultra (split)
Single-Quad (split)
Single H/L (split)
Single (all)
Double (all)
Quad (all)
Quint (all)
Mega (all)
Ultra (all)
Single-Quad (all)
Single H/L (all)
Steady 2 (california)
Steady 4 (all)
Momentarily apply +VDC
to YELLOW wire:
ȅonce for next pattern
ȅquickly three times for reset
Note: This unit is not factory set at pattern 0
