30
Robot Waterbase Applicator - Maintenance

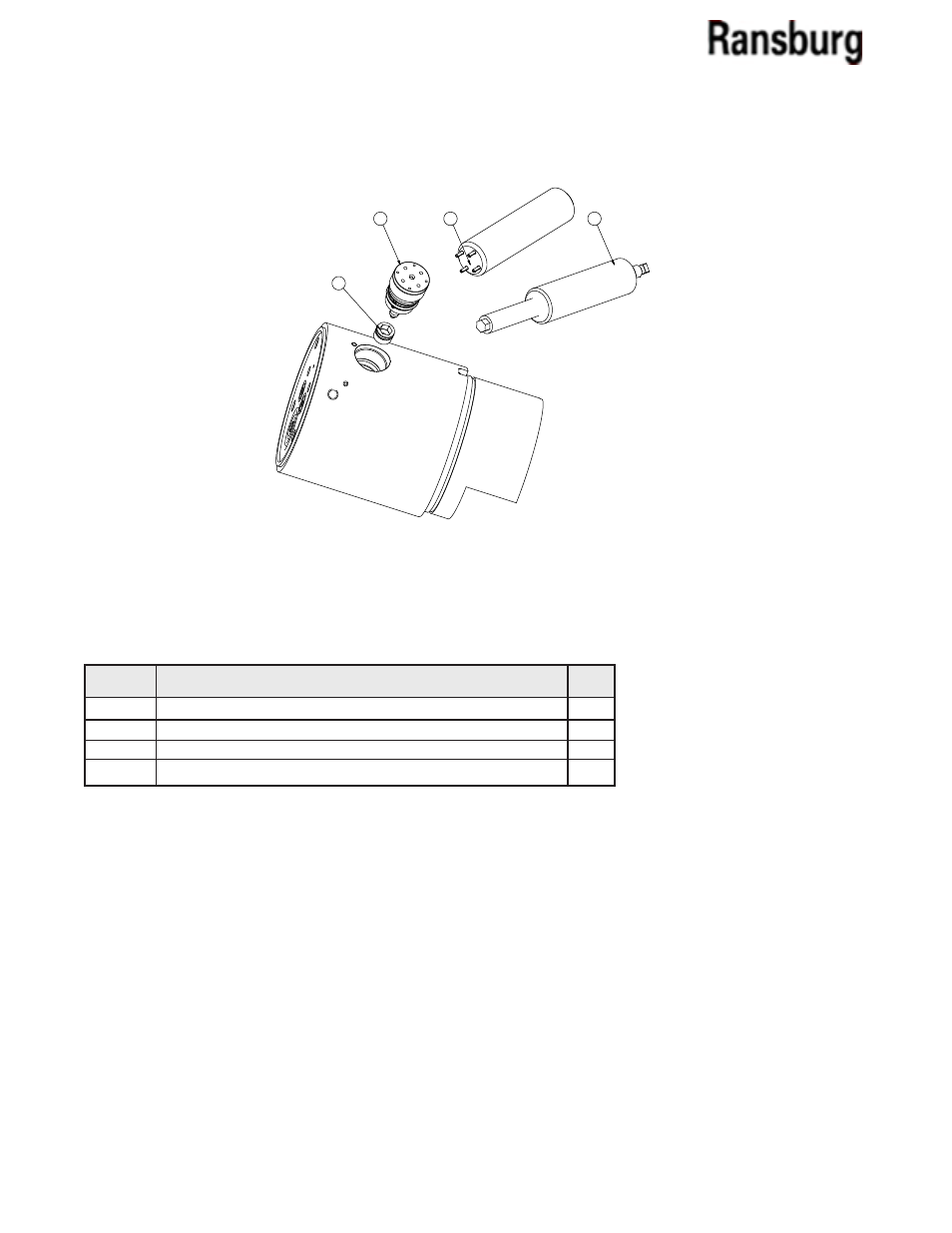

Figure 17: Dump Valve Removal
2
1 4 3
1 Valve Assembly 1
2 Valve Seat Assembly 1
3 Valve Seat Removal Tool 1
4 Valve Removal Tool 1
Item # Description Qty.
18. Refer to Figure 17 to remove the dump valve.
Using the valve removal tool (78985-00) [4], re-move
the valve assembly [1] by turning counter-clockwise.
Using the valve seat removal tool (77872-00) [2],
remove the seat. Replace parts as required. Torque
seats [2] to 20 lbs•in torque. Tighten valves down till
they are tight in the valve body.
AA-03-01.1
