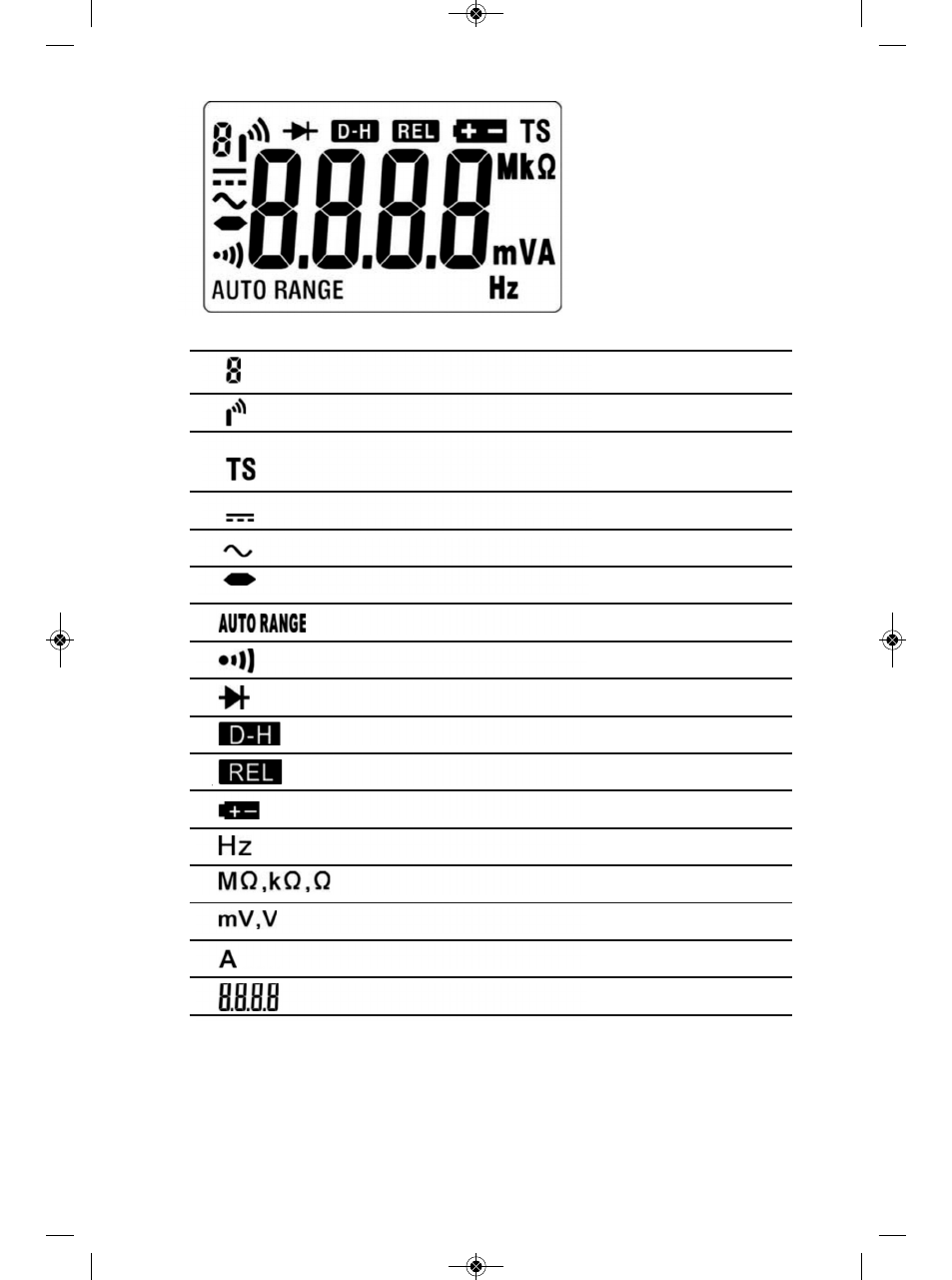

Fig. 2. Symbols used on the transmitter’s liquid-crystal display
6
Symbol Description
Transmission ID code (Channel) setting
Antenna blinking while in the process of transmitting
Transmission span selection; options are
2, 10, 30, 60, and 120 seconds
Lit in DC voltage measurement mode
Lit in AC voltage measurement mode
Lit when measuring negative polarity
Autoranging on indicator
Lit in continuity check mode
Lit in diode check mode
Data hold indicator
Lit in relative mode or when zeroing display
Lit when battery voltage is low
Lit in frequency measurement mode
Unit of resistance measurement
Unit of voltage measurement
Unit of current measurement
Measured value
