Part 1 Control Unit

Model 3010MA

Teledyne Analytical Instruments

42

The

Enter

button is used to accept any new entries on the VFD

screen. The

Escape

button is used to abort any new entries on the VFD

screen that are not yet accepted by use of the

Enter

button.

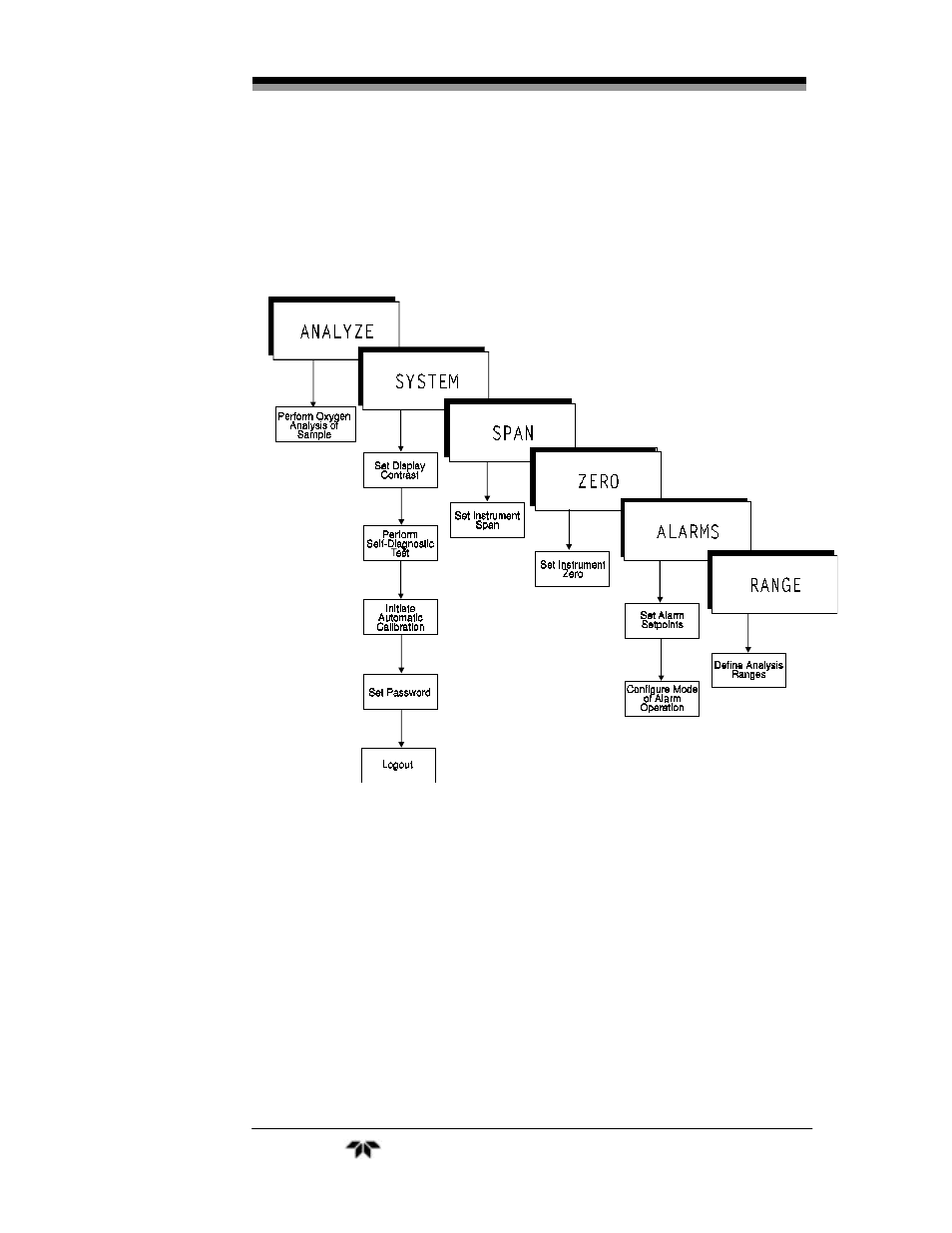

Figure 4-1 shows the hierarchy of functions available to the operator

via the function buttons.

Figure 4-1: Hierarchy of Functions Available on the Model 3010MA

The six function buttons on the analyzer are:

Analyze.

This is the normal operating mode. The analyzer

monitors the oxygen content of the sample, displays the percent
of oxygen, and warns of any alarm conditions.

System.

The system function consists of six subfunctions that

regulate the internal operations of the analyzer:

• Set

LCD

screen

contrast
