Paramagnetic O2 Purity Analyzer

Installation

Teledyne Analytical Instruments

27

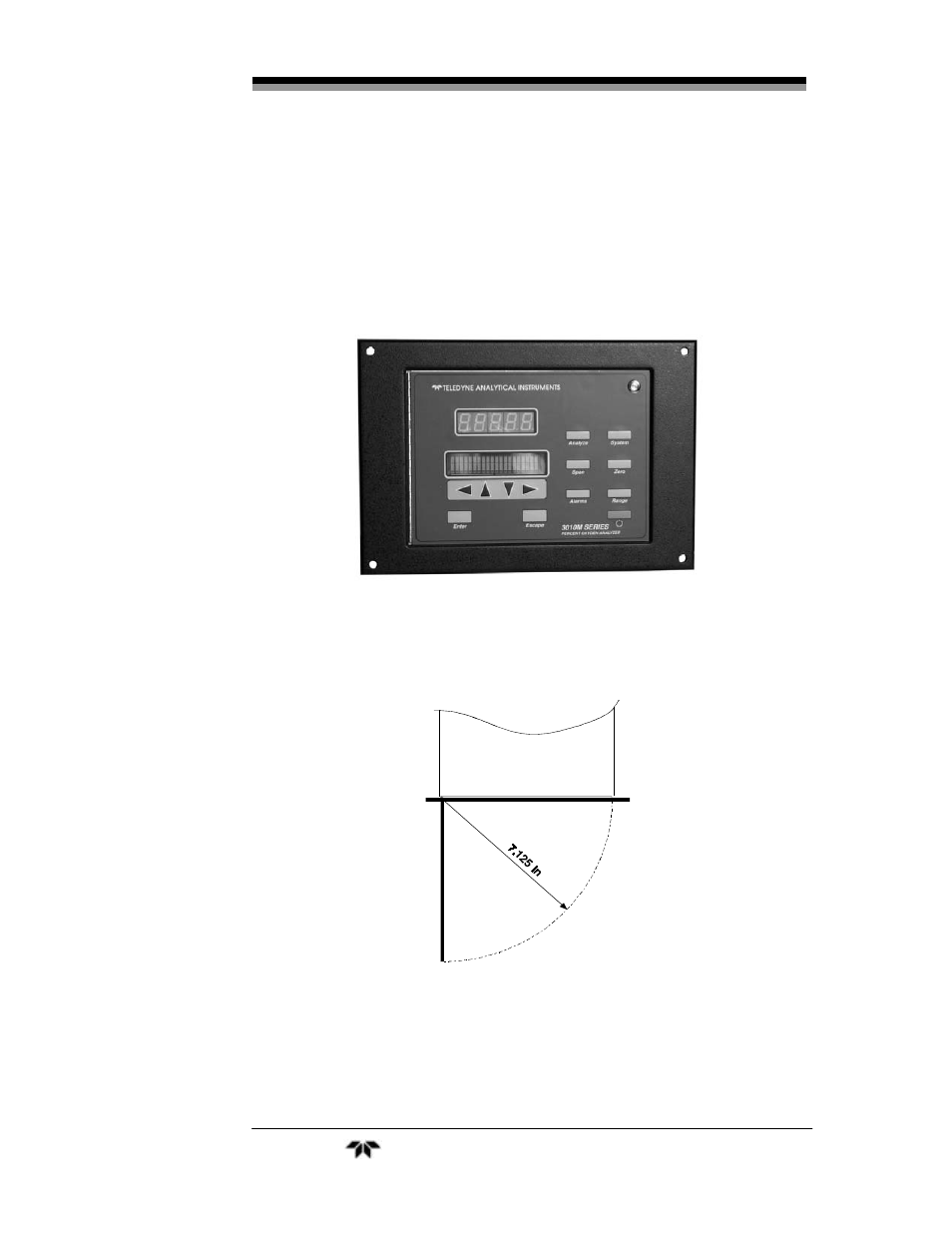

All operator controls are mounted on the control panel which is

shown in Figure 3-2. The panel is hinged on the left edge and doubles as a
door to provides access to the display electronics, PCB’s and temperature
controller inside the instrument. The door is spring loaded and will swing
open when the button in the center of the latch (upper right corner) is
pressed all the way in with a narrow gauge tool (less than 0.18 inch wide),
such as a small hex wrench or screwdriver Allow clearance for the door to
open in a 90-degree arc of radius 7.125 inches. See Figure 3 -2.

Figure 3-2: Front Panel of the Model 3010MA

Figure 3-3: Required Front Door Clearance
