Trace Nitrogen in Argon Analyzer Introduction
Teledyne Analytical Instruments 7
and identifies specific components of the analyzer. See also Figure 1-4
for internal components inside the card cage.

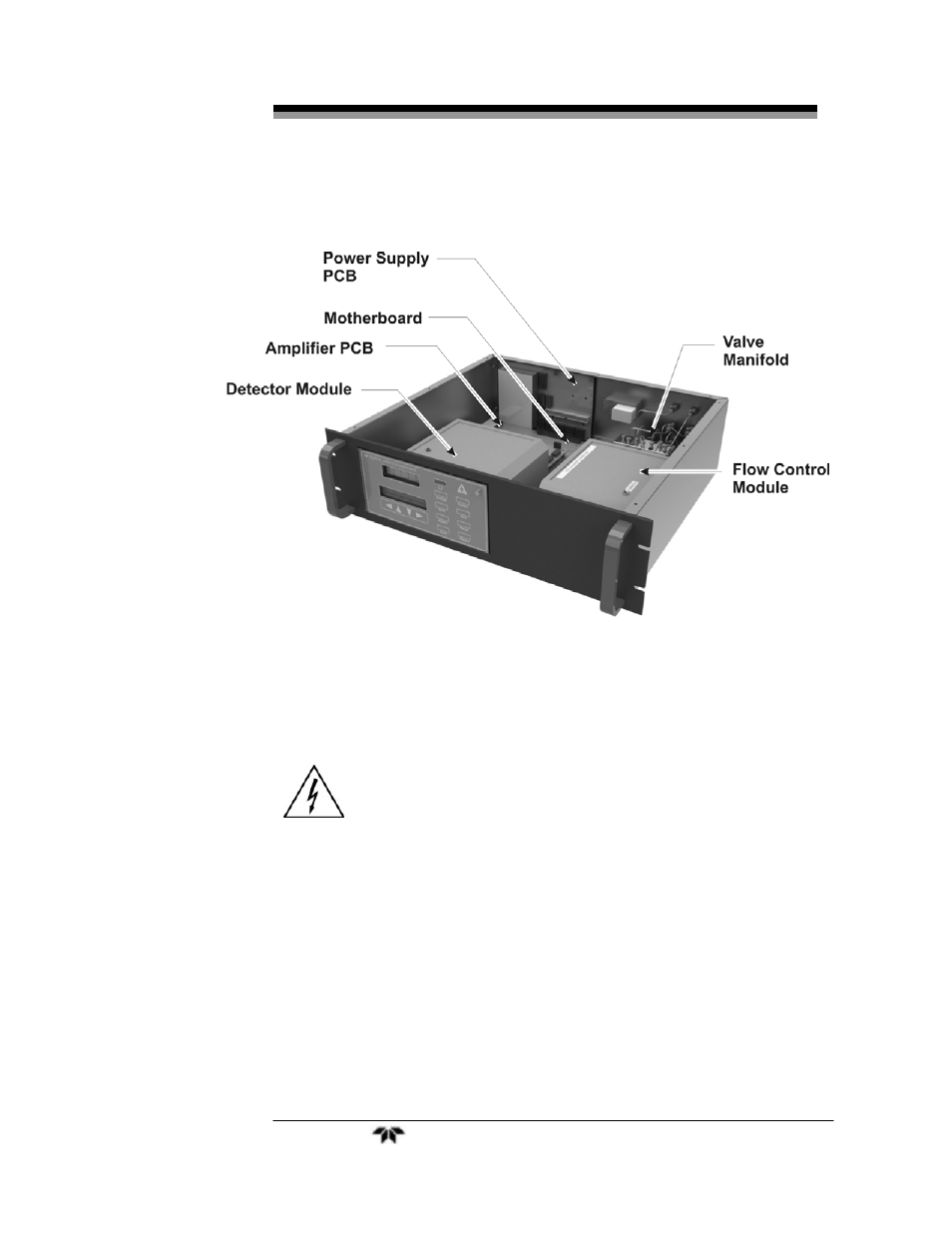

Figure 1-3: Internal Component Identification
WARNING: HIGH VOLTAGE. ELECTROCUTION HAZARD.
UNPLUG THE ANALYZER BEFORE REMOVING THE
COVER. THE OUTPUT OF THE HIGH-VOLTAGE
TRANSFORMER AND THE ANALYTICAL CELL
ELECTRODES CAN APPROACH VOLTAGES OF
10,000 VAC. THE ANALYZER SHOULD BE SERVICED
ONLY BY A QUALIFIED SERVICE TECHNICIAN.
1.7 Additional Safety Information
Note: The material provided in this section contains information
to promote safety in the operation and maintenance of this
equipment. It is not intended to supersede, replicate, or
replace any safety documentation or procedures provided
from or established
by official safety sources.
