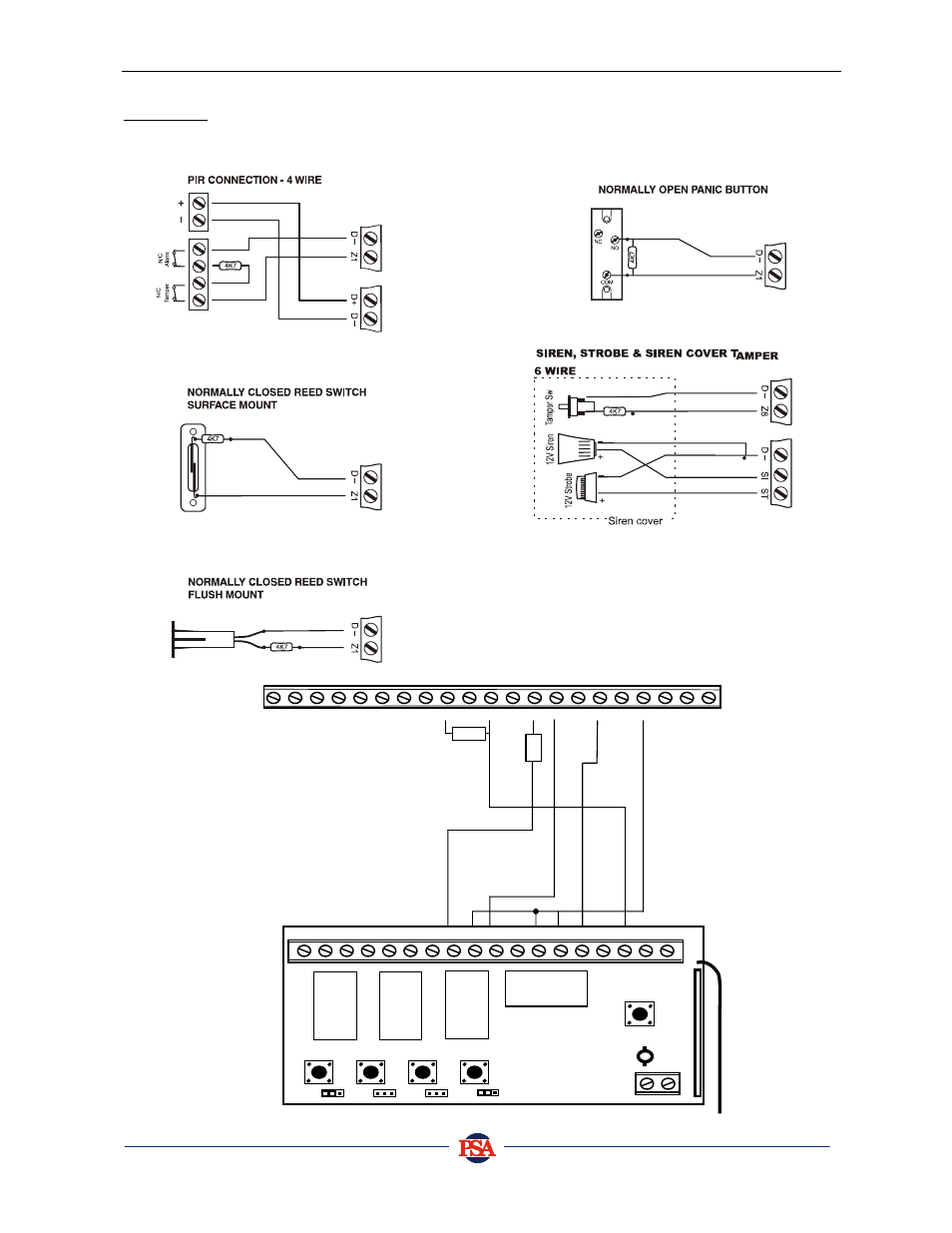

PINKERTON Z ONE I NPUT C ONNECTION E XAMPLES
Please Note:
These wiring diagrams are general examples only. Refer to the installation guidelines supplied with each
device.
AC AC KP D- Z1 Z2 Z3 Z4 D- Z5 Z6 Z7 Z8 KY AX D+ D+ D- D- SI ST
NO4 NC4 C4 NO3 NC3 C3 NO2 NC2 C2 NO1 NC1 C1 COM+12V SS LV AL AR
D1
PRG4 PRG3 PRG2 PRG1
RX4K
4.
7k
Ω
4 7kΩ
Wireless Arm/Disarm
and Panic Remote
connection to
Pinkerton Receiver
RX2K / RX4K.
