PROLiNK® WNR1008 www.prolink2u.com
Version 1.00 2 English
WPS WPS Green
ON WPS setup successfully
OFF WPS is disabled
Blinking WPS is enabled to make a connection
Wireless LAN WLAN Green
OFF WLAN off
ON WLAN link / active
Blinking WLAN traffic transmitting
LAN Green
OFF LAN function off
ON LAN link / active
Blinking LAN traffic transmitting
USB WPS Green
ON USB is connected
OFF USB is disconnected

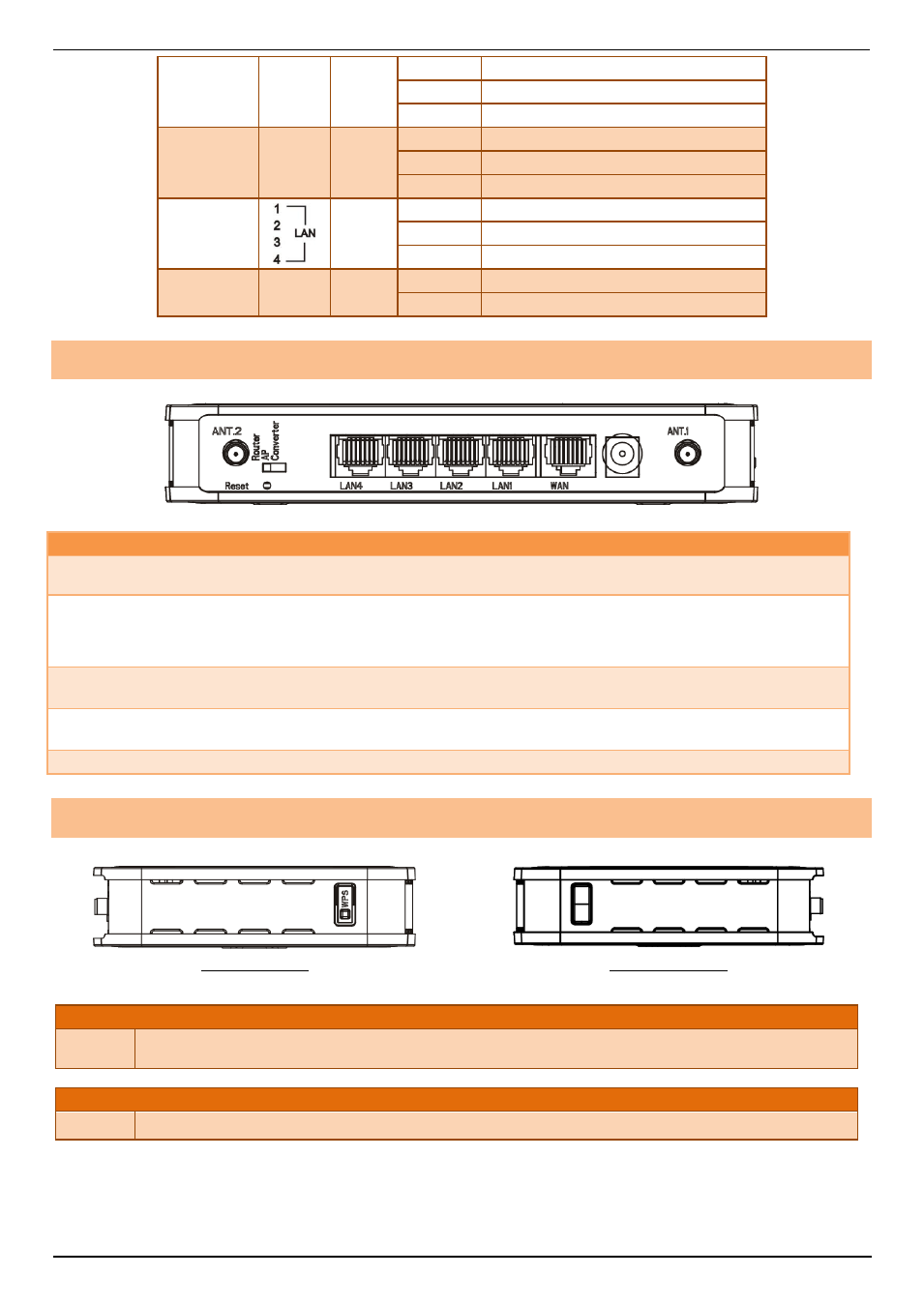

Ports and Buttons (Rear view)
Ports and buttons
Ant. 1
Ant. 2
Install the appending antennas here.
Reset
 Press 2 seconds, the LED will be off.
 Keep on pressing reset button 2~5 seconds, the system will reboot automatically.
 Keep on pressing the reset button more than 5 seconds, the Wireless Router will set all setting back to factory
default.
LAN 1-4
Use standard LAN cables (RJ45 connectors) to connect your PCs to this port. If required, any port can be connected to
another hub. Any LAN port will automatically function as an "Uplink" port when necessary.
WAN
Connect the ADSL or Cable Modem here with RJ45 cable. If your modem came with a cable, use the supplied cable,
otherwise, use a standard LAN cable (RJ45 connectors).
DC 12V Connect the supplied power adapter here.
Side Panel (Side view)
(Left sideview) (Right sideview)
Left-sideview
WPS
To enable the WPS function press the physical WPS button on the Wireless Router once, then the LED will start to flash.
Please make a connection with other WPS supported device within 2 minutes.
Right-sideview
USB Insert the USB 3.5G card that provided by your ISP (Internet Service Provider) or USB network attached storage here.
