Page 3

16490 N.W. 13th Avenue
Miami, FL 33169-5707
Scale: None
Date: 9/9/82
Revised: 12/2/08
Drawn By: D. Beutler

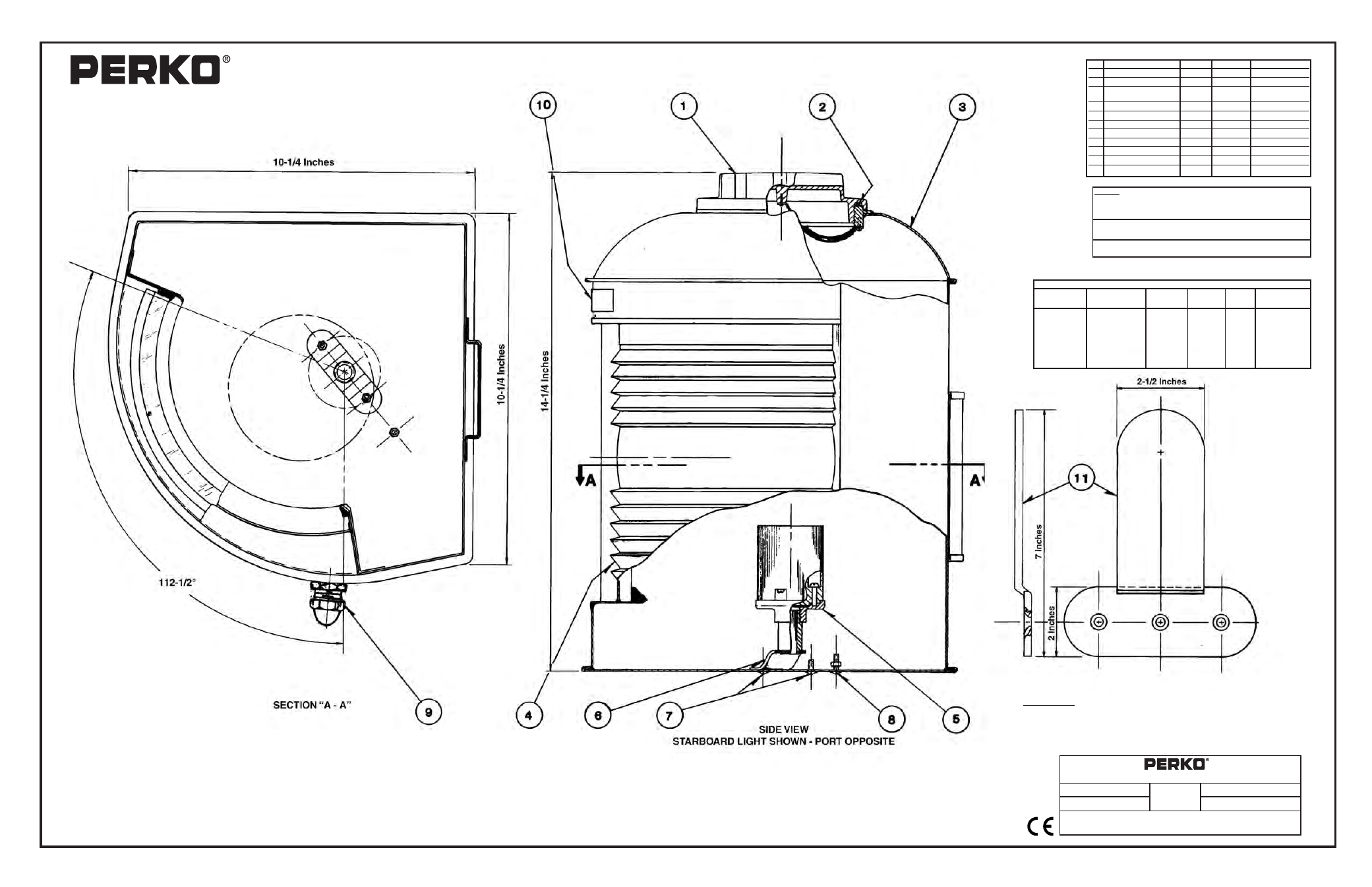

FIG. 1150RE2 AND 1150GE2
PORT AND STARBOARD SIDE NAVIGATION LIGHTS
No.
Name of Piece
No. Req.
Material
Size & Spec.
1
Cap & Cable
1
Polycarb.
Fig. No. 1105
2
O-Ring Fig. No. 1119
1
Neoprene
4-5/8x4-1/4x1/8
3
Body
1
Brass or
20 GA-.032
Galv. Steel
4
Lens
1
Polycarb.
See Note #1
5
Socket
1
Phenolic
See Note #2
6
Socket Support Stand
1
Brass
Fig. No. 0341-01A
7
Socket, Mounting Screws
2
S/S
8-32 x 3/4” R.H.
8
Ground Screw & Nut
1
S/S
8-32 x 3/4” R.H.
9
Packing Nut & Gland Ring
1
Plastic
for 7/16” Cable
10
Certification Plate
1
Brass
Not Available As Repl Pt.
11
Mounting Bracket
1
Aluminum
Fig. No. 0143
Bill of Material
NOTES:
1. Lens
- American Made Fresnel, 112-1/2°,
Red - Port Side: Cat. No. 0259002RED
Green - Starboard Side: Cat. No. 0259002GRN
2. Socket - Medium PrefocusPhenolic 250 Volts -Cat. No. 0347A00
1000 Watts Btyant #3743 U.L. Listed
3. Weight - 7 Lbs. - 9 ozs
For Vessels over 20 Meters (65.6 Ft.) in Length
Cat. No.
Description
Visible
Visible
Reg.
Lamp
Arc
Miles
Watts
Cat. No.
1150RE2GAL
Red Sidelight
112-1/2°
2
60
0342004CLR
1150RE2PLB
Red Sidelight
112-1/2°
2
60
0342004CLR
1150RE2POL
Red Sidelight
112-1/2°
2
60
0342004CLR
1150GE2GAL Green Sidelight
112-1/2°
2
60
0342004CLR
1150GE2PLB Green Sidelight
112-1/2°
2
60
0342004CLR
1150GE2POL Green Sidelight
112-1/2°
2
60
0342004CLR
VISIBILITY AND WATTAGE SPECIFICATIONS*
These navigation lights meet the U.S. Coast Guard Requirements
under the ‘72 COLREGS and are classified by Underwriters’
Laboratories Standard U.L. 1104 to meet the ‘72 COLREGS.
NOTE:
WIRE ONLY THROUGH TERMINAL TUBE USING 16/3
SJO CABLE WITH 7/16 INCH NOMINAL O.D. TO
RETAIN WATERTIGHT INTEGRITY AND COMPLY
WITH U.L. 1104.
*Bulb Data - These are special PERKO Navigation Lamps, 120
Volts, T-10, Medium Prefocus Base, C-8 Filament,
Clear 2-3/8 Inch L.C.L., and must be used to meet
the ‘72 COLREGS.
Cast Aluminum Hanger
