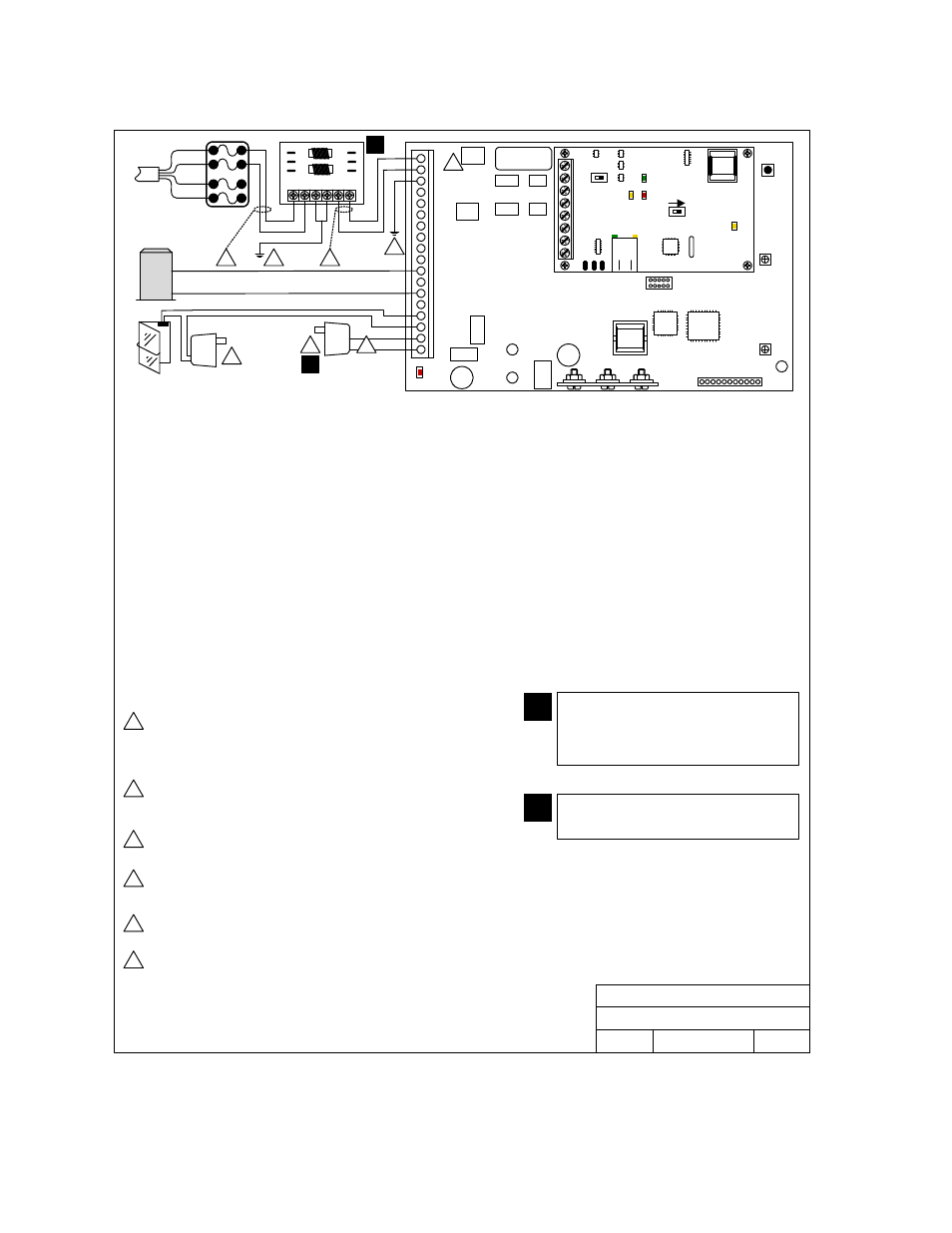

1.4 Telephone Auto-Dialer Wiring – Single Unit
DOORKING, INC., INGLEWOOD, CA 90301
Date: Dwg. No. Rev.
Title:
1/12
C
M1810-AP-6-C
Access Plus System Auto-Dialer Wiring
Basic wire connections – single unit.
1
Magnetic locks or electric strikes must be powered from a separate UL Listed
power transformer. Do not power strikes or magnetic locks from the 1810 power
transformer.
3
1
2
2
A
Use supplied 16.5 VAC, 20 VA power transformer or UL Listed equivalent.
DO NOT Power this device with a 24 Volt transformer or source voltage.
Use only twisted pair telephone wire that is rated for direct underground burial.
DO NOT use wire that is intended for indoor applications . Recommend
Cat5e Gel Filled (flooded) UV Resistant Direct Burial Cable in conduit. DO
NOT run telephone wires and high voltage wires in the same conduit .
Check the phone wire chart for wire size / distance.
Check for polarity on the phone "IN" wires, terminals 1 and 2. Terminal 2 must be
positive with respect to terminal 1. Set a VOM meter to measure DC volts. Place
the positive lead on terminal 2 and the negative lead on terminal 1. If the meter
shows a positive voltage - OK. If the meter shows a negative voltage (needle
moves off scale to the left), reverse the wires on terminals 1 and 2.
4
5
6
Use minimum 18 AWG wire for runs up to 100 feet; 16 AWG wire for runs up to
200 feet. It is recommended to keep power wire runs as short as possible.
Check the power wire chart for wire size / distance.
Be sure to properly ground all devices. Minimum 12 AWG wire. Surge devices
must have a ground point within 3-ft of the device.
B
Optional DoorKing Surge Suppresser P/N 1877-010 (or
equivalent) highly recommended.
For best protection, surge suppresser ground wire must be
3-ft. or less in length. Use minimum 12 AWG wire.
Ring is Positive with respect to Tip terminal. See
6
This device is powered by a 16.5 VAC
transformer. DO NOT power this device with a
24 VAC transformer or power source.
Ri
n g
Ti
p
Ri
n g
Ti
p
Gn
d
Gn
d
From Phone
Company Blue/White
Orange/White
White/Orange
White/Blue
Blue/White
White/Blue
3
16.5 VAC
20 VA
White/Blue
Blue/White
Vehicular Gate
Operator
Pedestrian
Gate / Door
Mag Lock
Power
4
A
5
B
1
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Mic
Vol
Master
Code
1 2 3 4 5 6 7 8 9 1011
Speaker
Vol
Keypad
ON
SW1 MODEM / TCP ENB
1
2
3
4
5
6
7
8
BAD DNS
RS-485 RX
LAN DOWN
Phone Line
In Use
L AN C onn
ecti
o n
Da
ta
T ran
smi
t
SW2
ON
TERMINATION
OFF
Page 20 1810-162-J-1-12
