#6047703

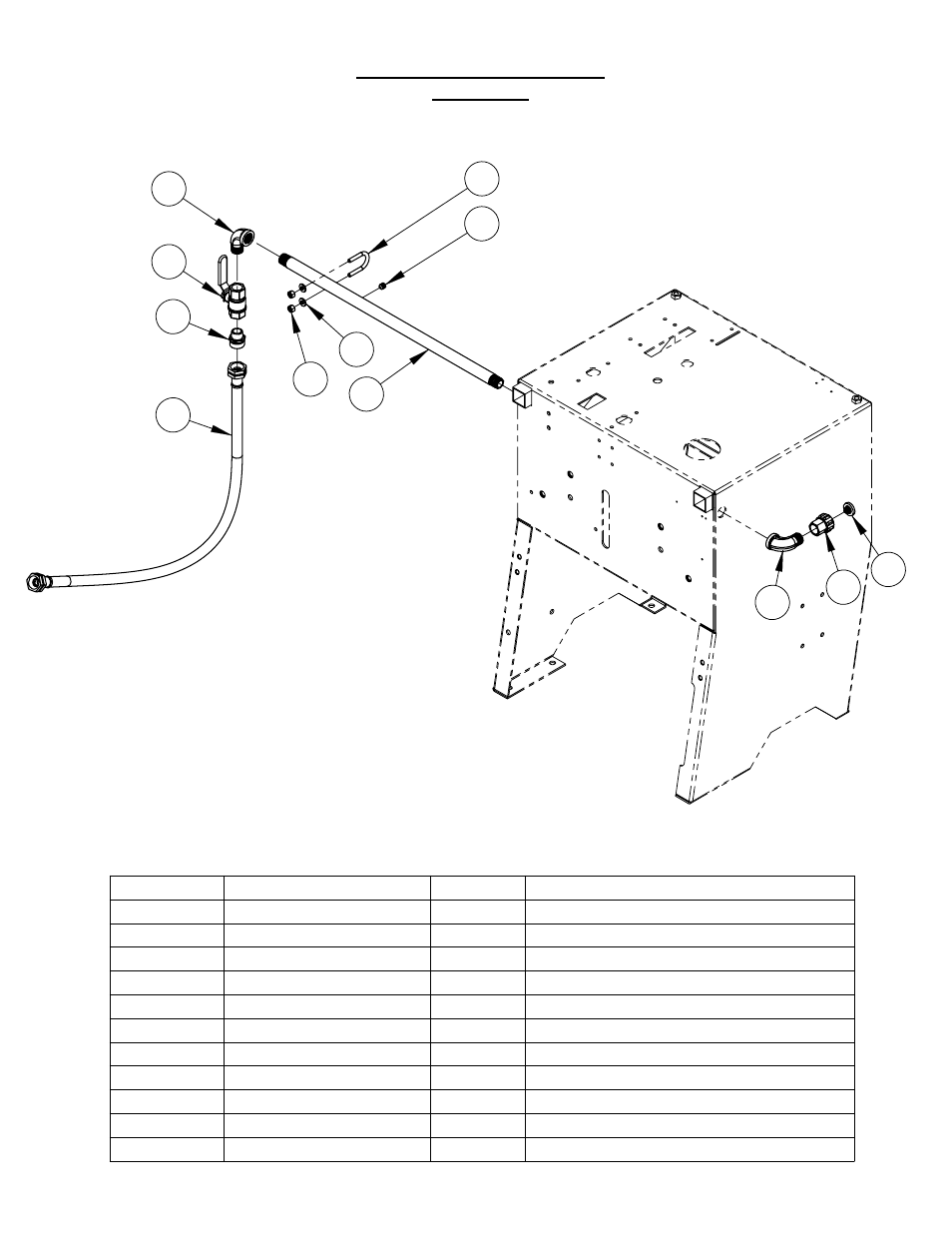

Water Supply Assembly

ITEM PART

NO.

QTY.

DESCRIPTION

1

6047938

1

Water Supply Tube

2

2900241

1

U-Bolt, 1/2" Pipe

3

2900009

2

Flat Washer, 1/4" SAE

4

2900010

2

Lock Nut, 1/4-20 Nylon

5

3200001

1

Plug, 1/8" NPT

6

3200013

2

Street Elbow, 1/2" NPT

7

3200022

1

Fitting, 1/2" F. Pipe to 3/4" F. Garden

8

3200025

1

Hose Filter Washer

9

3200027

1

Water Valve

10

3200155

1

Fitting, 1/2" M. Pipe to 3/4" M. Garden

11

6010021

1

Water Hose Assembly, 42" Long
