Diamond Products CC2500 (Gas) - Manual (Page 45)

ITEM PART NO. QTY. DESCRIPTION
1 6010107 1 Light Bar Mount Bracket
2 6010106 1 Light Bar
3 6011719 1 Light, 12V Spot Assy.
4 2400157 2 Hand Lock Knob, 5/16-18 x 1"
5 2800062 1 Toggle Switch On/Off
6 2800063 1 Toggle Switch Boot
7 2900310 2 Cap Screw, Hex Hd., M6-1.0 x 20mm
8 2900302 2 Lock Nut, M6-1.0 Nylon Insert
9 6010859 1 Wire Assy., 16 Ga., White, 13"
10 6010852 1 Wire Assy., 18 Gage, Black, 41-1/4"

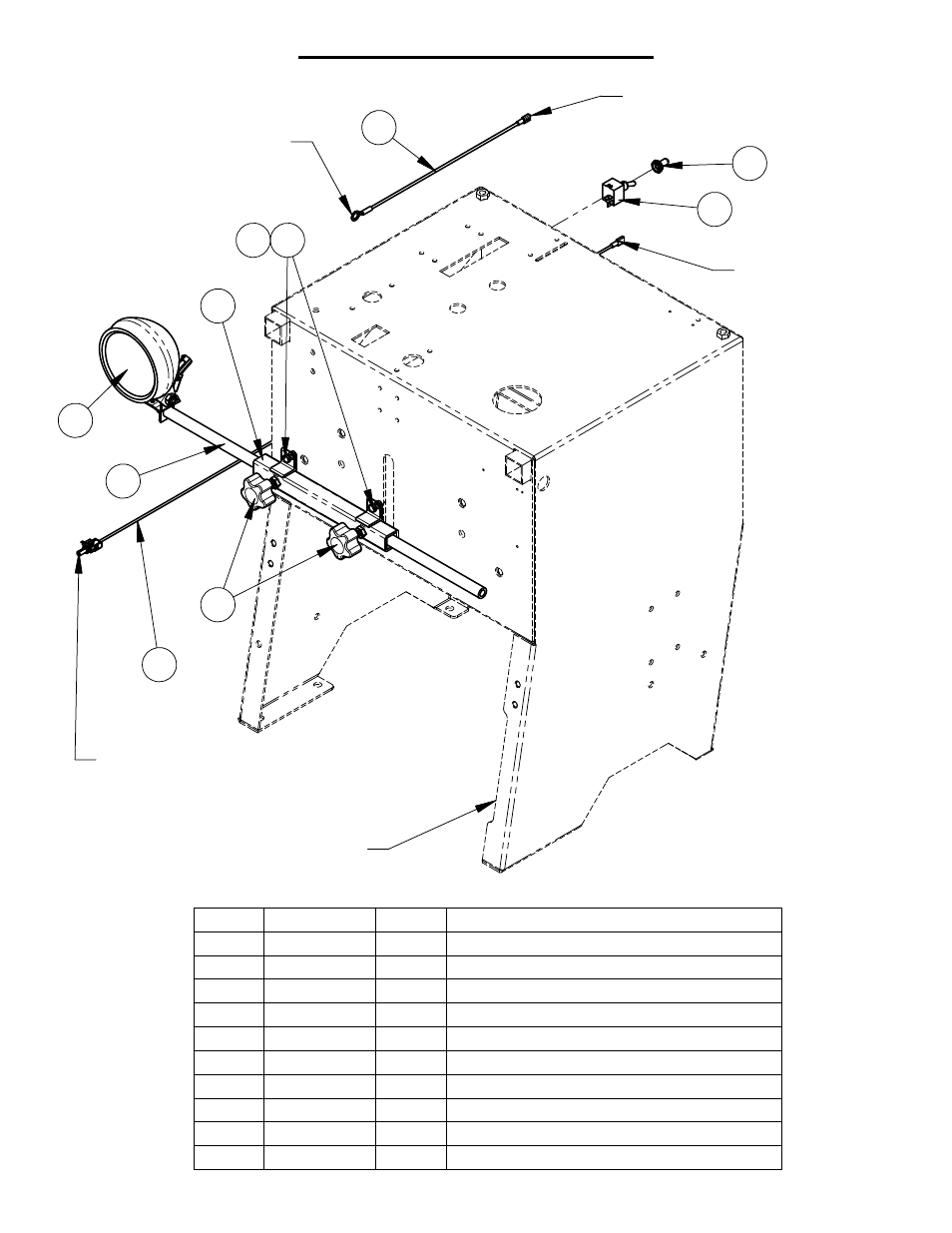

6047934 CC2500 SPOT LIGHT KIT
TO LIGHT
2
TO BATTERY+
3
5
4
6
9
8 7
1
10
AS REFERENCE
TO SWITCH
FRAME SHOWN
TO SWITCH
45
