Diamond Products CC2500 (Gas) User Manual

Page 7

background image

#6047707

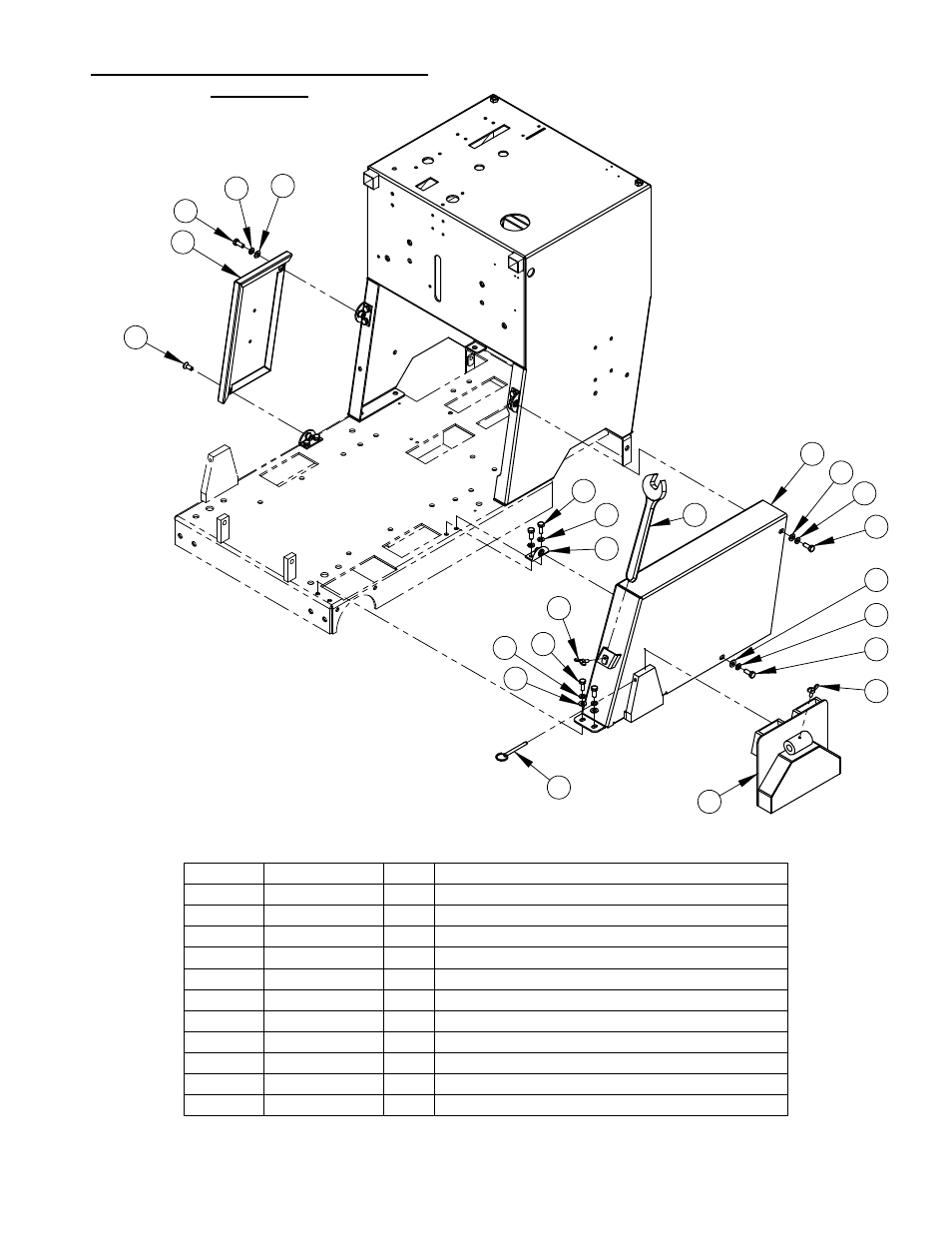

Belt and Shield Guard Assembly

ITEM

PART NO.

QTY.

DESCRIPTION

1

6047917A 1 Belt Guard Weldment

2

6010555

1

Shaft/Flange Guard (Narrow)

3

6048062

1

Slurry Shield

4

6048064

4

Guard Mounting Tab Assembly, 90 Deg.

5

2900031

13 Lock Washer, 5/16" Split

6

2900329

13 Cap Screw, Hex Hd., M8-1.25 x 20mm

7

2900022

5

Flat Washer, 5/16" SAE

8

2500211

1

Wrench, 15/16" Open End

9

2900307

2

Wing Screw, M6 x 16mm

10

2900156

1

Lock Pin with Ring

11

2900611

1

Cap Screw, Flat Hd., M8-1.25 x 20mm

5

2

6

9

5

5

6

7

4

1

8

10

7

6

6

5

9

5

6

3

7

7

11

7
