Diamond Products CC2500 (Gas) - Manual (Page 4)

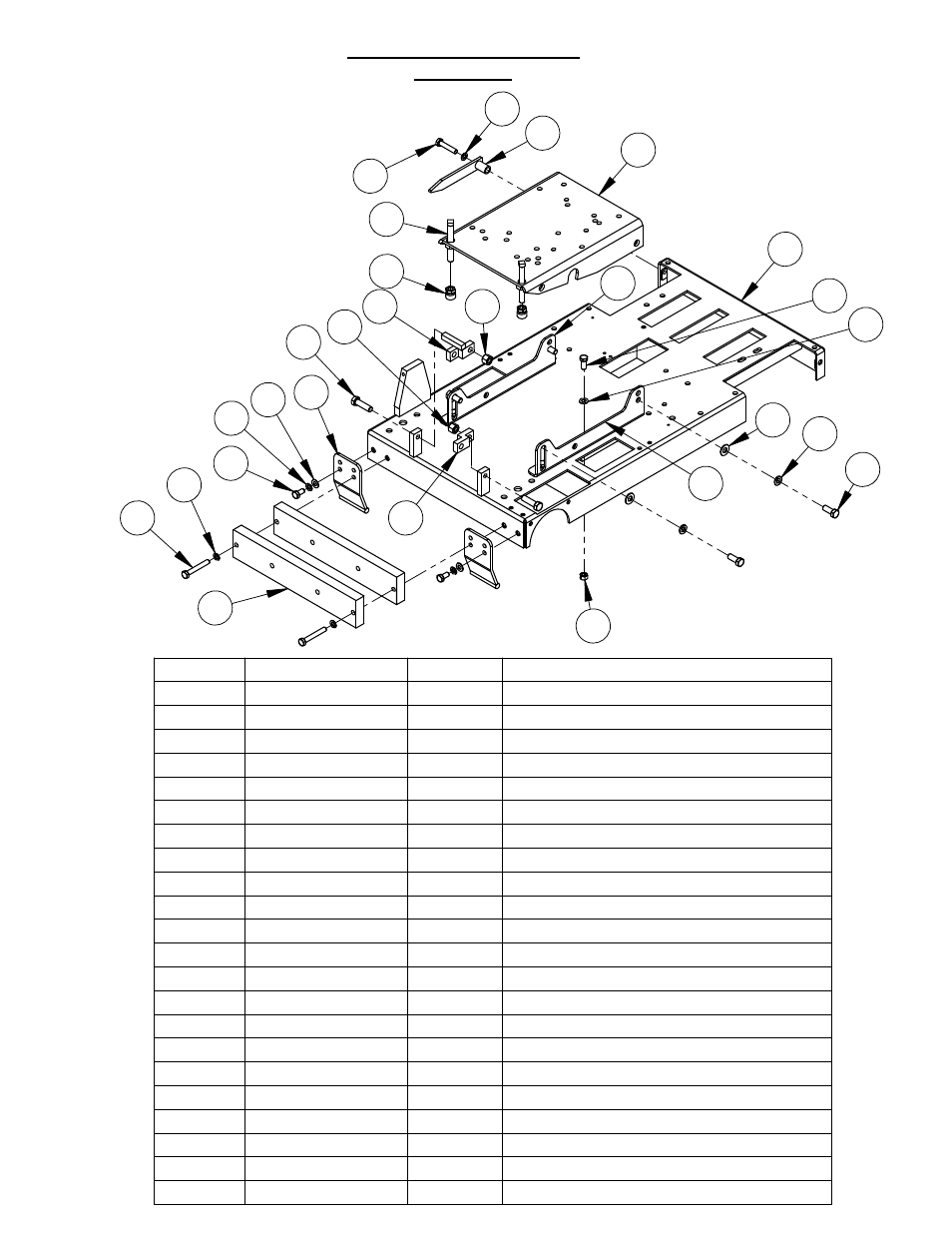

Frame Base Assembly
#6047700
ITEM PART NO. QTY. DESCRIPTION
1 6047900A 1 Frame Base
2 6011021 2 Skid Plate
3 6048067 2 Saw Weight, 13 Pound
4 6047949 1 Pointer Extension with Stop
5 6047976 1 Pointer Extension
6 6010022 1 Rear Pointer
7 2900014 8 Flat Washer, 3/8" SAE
8 2900321 5 Lock Washer, M10 Split
9 2900314 2 Cap Screw, Hex Hd., M10-1.5 x 20mm
10 2900334 2 Cap Screw, Hex Hd., M10-1.5 x 70mm
11 2900318 1 Cap Screw, Hex Hd., M10-1.5 x 50mm
12 2900139 2 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
13 2900026 2 Lock Nut, 1/2-13 Nylon
14 6041164 1 Engine Base Assembly
15 6047909 2 Engine Base Mount
16 2900027 2 Set Screw, Sq. Hd., 1/2-13 x 4"
17 2900722 2 Swivel Pad, 1/2-13
18 2900304 6 Lock Nut, M10-1.5 Nylon Insert
19 2900333 6 Cap Screw, Hex Hd., M10-1.5 x 25mm
20 2900330 4 Cap Screw, Hex Hd., M12-1.75 x 30mm
21 2900084 4 Lock Washer, 1/2" Split
22 2900058 4 Flat Washer, 1/2" SAE
15
19
1
3
10
8
9
8
7
2
12
4 13
5
13
6
8
11
17
16
14
18
22
21
20
15
7
4
