Diamond Products CC2500 (Gas) - Manual (Page 5)

#6047701

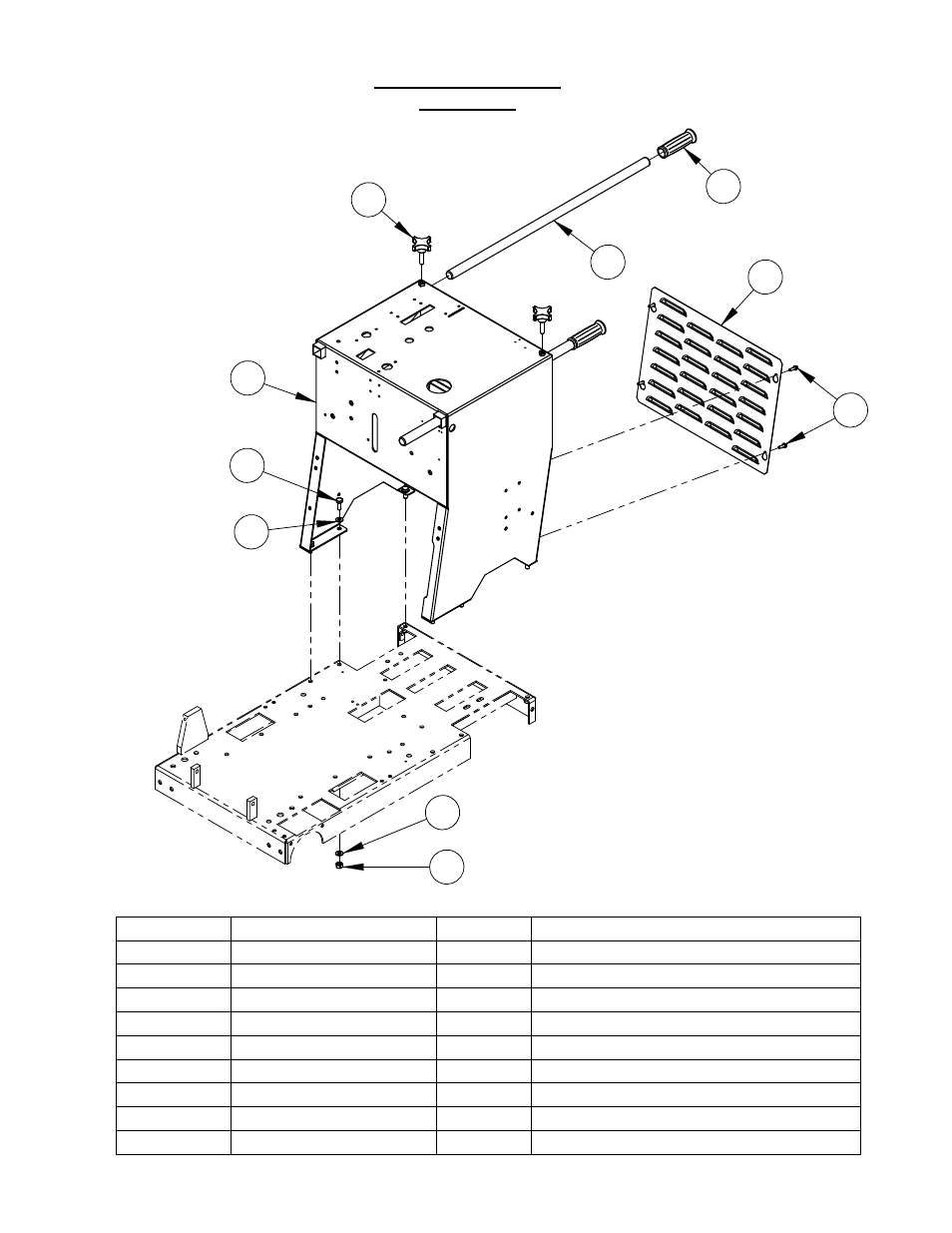

Upright Assembly
ITEM PART NO. QTY. DESCRIPTION
1 6047901 1 Frame Upright Weldment
2 2900333 6 Cap Screw, Hex Hd., M10 x 25mm
3 2900014 12 Flat Washer, 3/8" SAE
4 2900304 6 Lock Nut, M10-1.5 Nylon Insert
5 6047919 1 Rear Cover Screen
6 2900328 4 Cap Screw, Hex Flange Hd., M6 x 20mm
7 6013054 2 Handle Bar, 30" Long
8 2500636 2 Handle Grip
9 2900234 2 Hand Lock Knob, 3/8"-16
4
7
1
2
3
3
8
5
6
9
5
