2
AT ENGINE
TO GAS FILTER
12
5
AS REFERENCE
3
4
FRAME SHOWN
6
ITEM PART NO. QTY. DESCRIPTION
1 6047916 2 Fuel Tank Mount Bar
2 6010869 1 Fuel Tank, 4.4 Gallon
3 2506716 1 Grommet
4 2502484 1 Roll Over Vent, 1/4" Hose Barb
5 2500205 1 Fuel Tank Grommet
6 2503294 1 Fuel Tank Cap, W/Gage
7 3200108 1 Ball Valve, 1/4" NPT
8 3200057 1 Elbow, 1/4" M. Pipe to 1/4" M. JIC
9 2901336 8 Flat Washer, M8
10 2900763 8 Lock Washer, M8 Split
11 2900329 4 Cap Screw, Hex Hd., M8-1.25 x 20mm
12 6010485 1 Hose Assy., Fuel, 1/4 x 24-1/2"
13 2900360 4 Cap Screw, Hex Hd., M8-1.25 x 25mm
14 1801716 1 Decal, EPA EVAP Standard

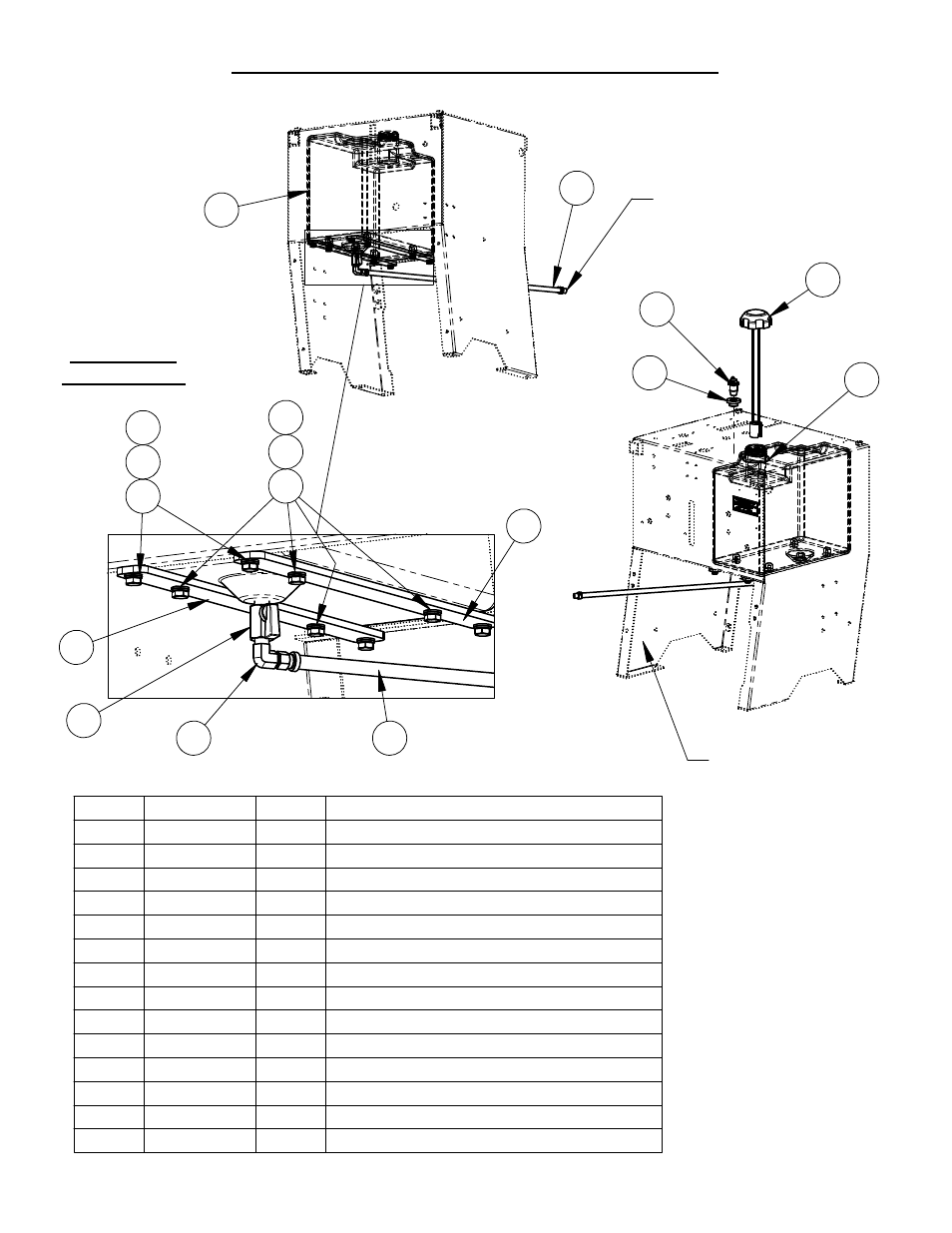

6048292: CC2500 FUEL TANK ASSEMBLY
11
DETAIL A
SCALE 1 : 4
1
7
8
10
13
9
12
10
9
1
20
