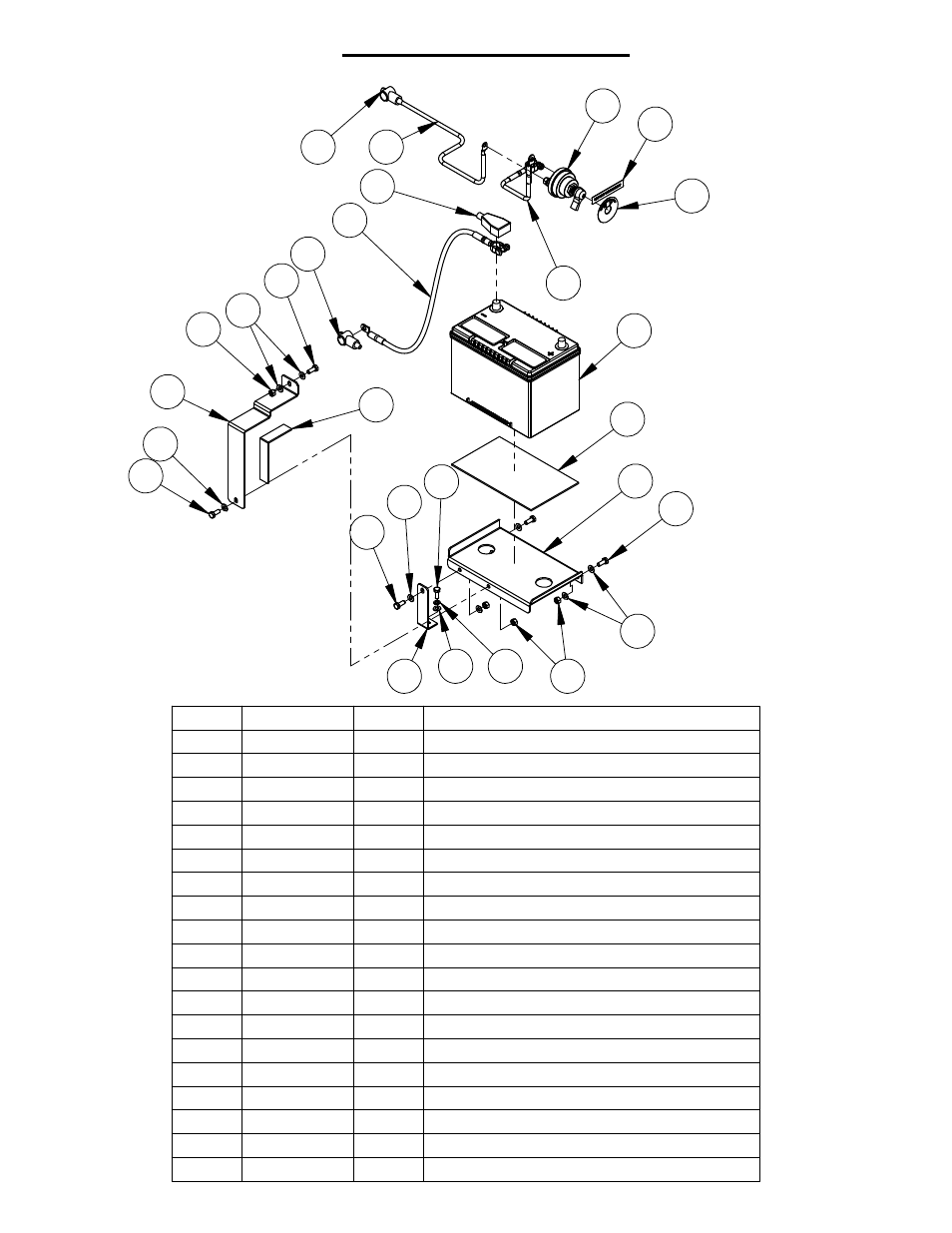

Battery Assembly #6047958
ITEM PART NO. QTY. DESCRIPTION
1 6047920 1 Battery Holder
2 6010016 1 Battery Pad
3 2700208 1 Battery, 12 Volt Group Size 34
4 6048077 1 Rubber Strip
5 6047922 1 Battery Strap
6 6047921 1 Battery Support Brace
7 2900022 10 Flat Washer, 5/16" SAE
8 2900329 6 Cap Screw, Hex Hd., M8-1.25 x 20mm
9 2900303 5 Lock Nut, M8-1.25 Nylon Insert
10 2800072 1 Battery Cable, 30" Negative (Black)
11 2800257 1 Battery Boot, Large (Black)
12 2800198 1 Battery Boot, Small (Black)
13 2800565 1 Battery Disconnect Switch
14 2800572 1 Battery Cable, 9" Positive (Red)
15 2800566 1 Face Plate, Battery Disconnect
16 6048091 1 Battery Cable Assy., Red
17 1800846 1 Label, Battery Disconnect
18 2800197 1 Battery Boot, Small (Red)
19 2900763 1 Lock Washer, M8 Split
