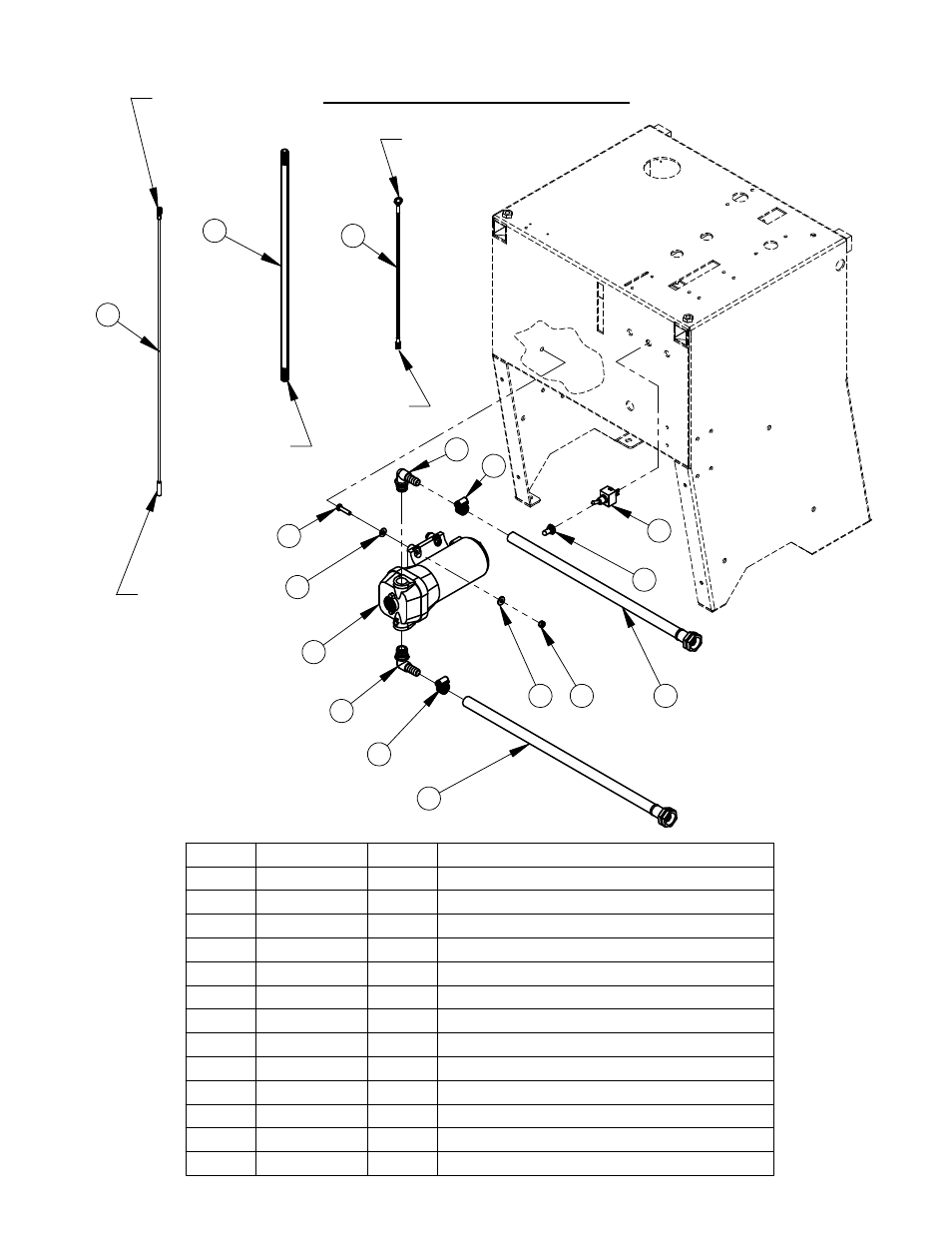

ITEM PART NO. QTY. DESCRIPTION
1 2600200 1 Water Pump, 12V Diaphragm
2 2900311 4 Cap Screw, Hex Hd., M6-1.0 x 25mm
3 2900009 8 Flat Washer, 1/4" SAE
4 2900302 4 Lock Nut, M6-1.0 Nylon Insert
5 2701694 2 Port Fitting, 1/2" Barb x 90 Degree
6 3200016 2 Hose Clamp #8
7 6048167 1 Hose Assy., 3 Foot
8 6010302 1 Hose Assy., 4 Foot
9 2800062 1 Toggle Switch On/Off
10 2800063 1 Toggle Switch Boot
11 6040371 1 Wire Assy., 14 GA., Green 24"
12 6040372 1 Wire Assy., 14 GA., White 12"
13 4600087 1 Wire Cover, 3/8 x 20"
Water Pump Option #6047933
Switch
5
To
6
12
To
9
11
To Battery
To Pump
10
1
8
6
Red Wire
7 4 3
+
5
3
2
Switch
13
Run
Wires
Thru
