Diamond Products CC2500 (Gas) - Manual (Page 32)

2
1
3

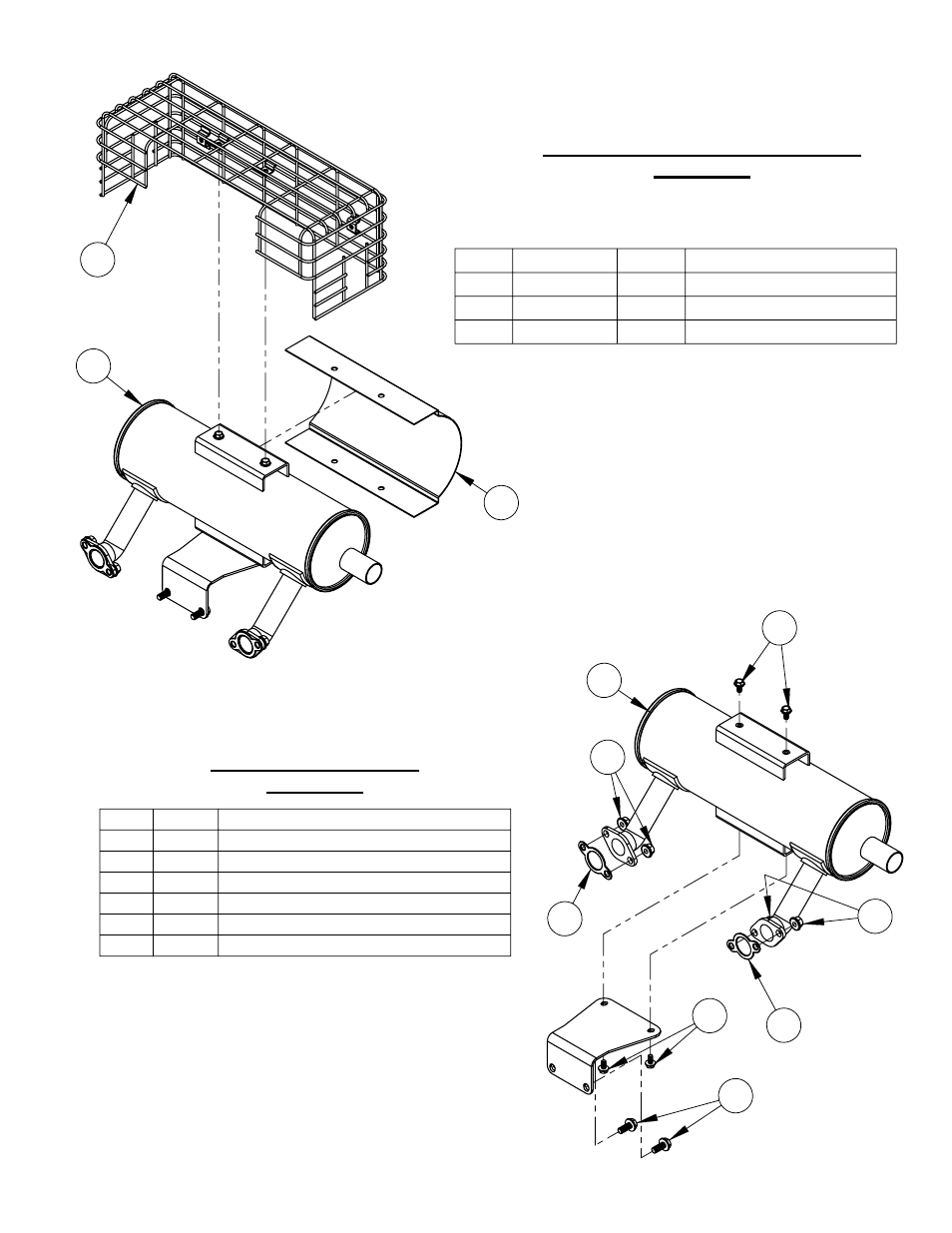

Muffler
1 2 Muffler Mounting Bracket
#6047897
27HP Kohler Muffler Assembly
#2701252
27HP Kohler Muffler
3 2 Exhaust Gasket
4 4 Cap Screw, Hex Flange Hd., M6 x 12mm
5 2 Cap Screw, Hex Flange Hd., M8 x 20mm
6 4 Hex Nut Flanged, M8
ITEM QTY. DESCRIPTION
1 1
ITEM PART NO. QTY. DESCRIPTION
1 2701252 1 Muffler Assembly
2 2701277 1 Heat Shield
3 2701253 1 Muffler Guard
6
1
4
4
3
5
3
6
32
