Gun Handle Rebuild:
Remove Chopper Elbow Assembly
1.
If the elbow fitting has not already been removed, do the following procedures:
A. Use a wrench to loosen the pipe seal on the elbow assembly.
B. Unscrew the elbow assembly by hand.
4
Male Elbow 7701-6-18 is used on Gelcoaters and saturtars with special valving.
Pipe Plug 09990 is used on Hydrajectors, Saturators and Casting units without special vavling.

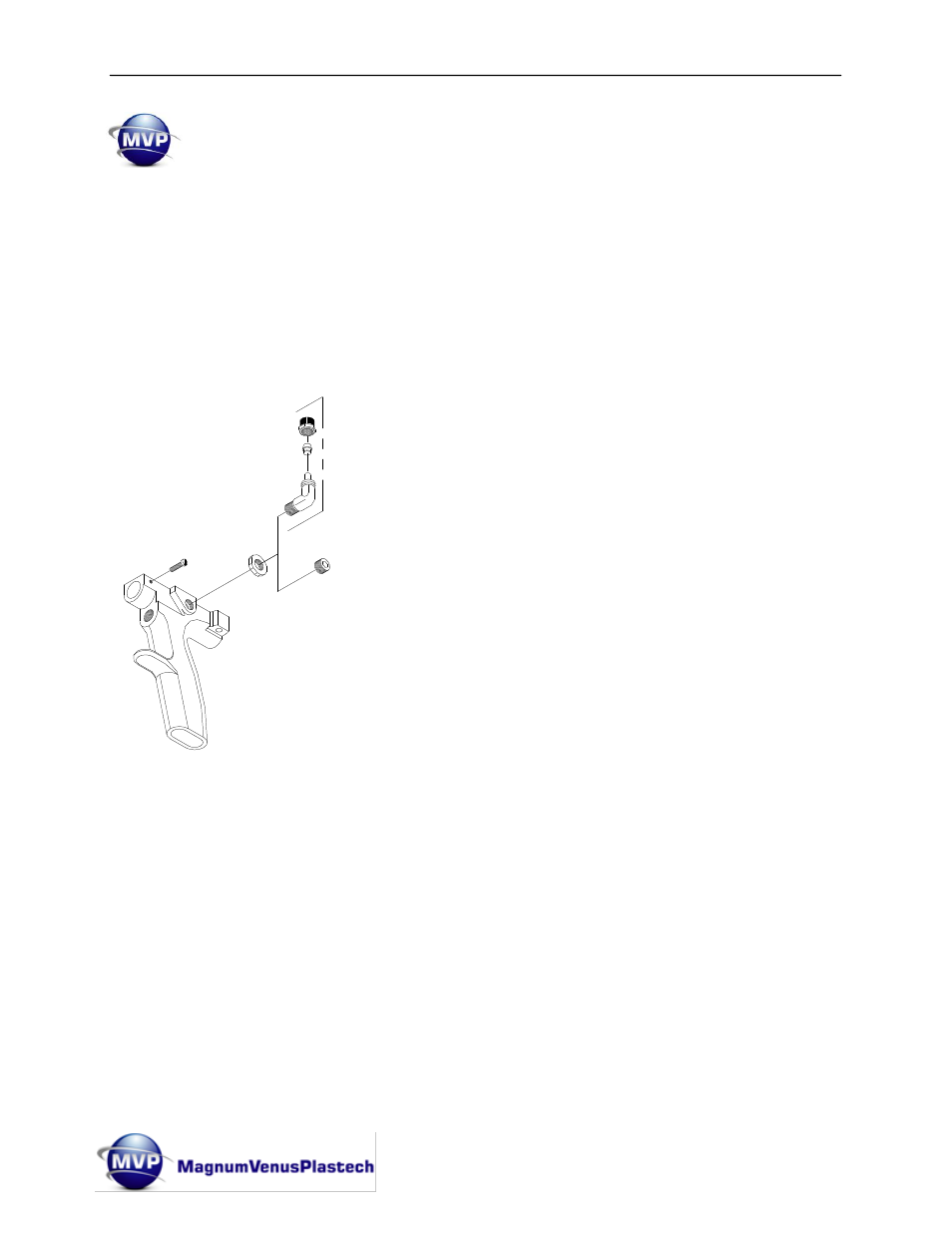

Note: This elbow assembly is used to supply air to the chopper. The gel coater
gun’s elbow assembly has different part numbers and also includes a plug. If
ordering replacement parts, please make sure you use the correct parts drawing.
Remove Trigger Assembly
1.
Remove trigger locking hairpin.
2.
Remove the fillister-head screw (F-FS-540-08) on the side of the gun-head.
3.
Pull the trigger retainer and spool assembly from the gun handle interior.
