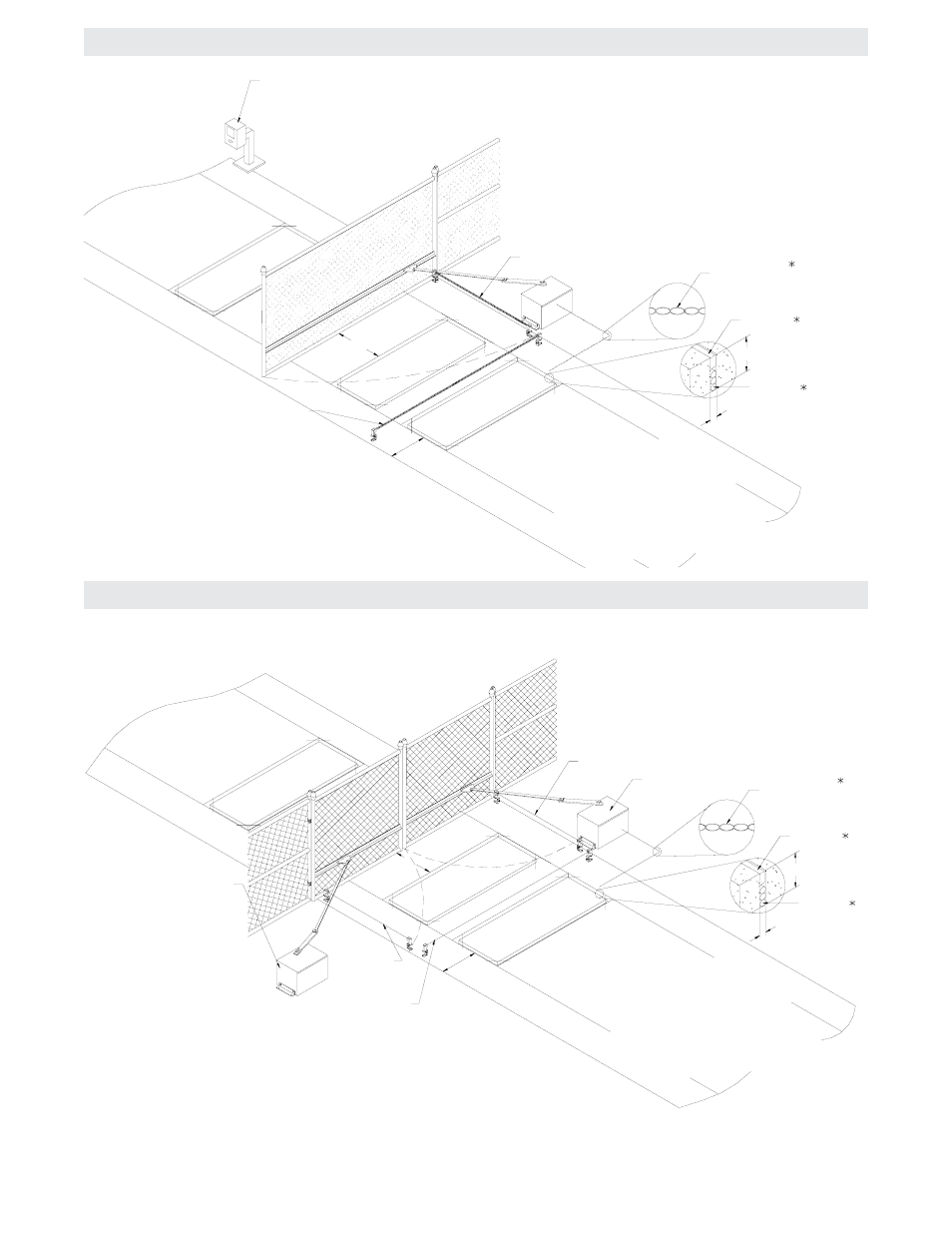

GATE SYSTEM (COMMERCIAL SWING GATE)
GATE SYSTEM (MASTER/SECOND SWING GATE)
1-1/2"
1/4" OR LARGER
DEPENDING ON LOOP
WIRE SIZE
STREET
COMPLEX
OR
PARKING LOT
INTERRUPT
LOOP
4'
TYPICAL
4'
TYPICAL
RUN TWISTED WIRE
FROM LOOP
TO OPERATOR
SEAL LOOPS
LOOP WIRE
LAYER
INTERRUPT
LOOP
PHOTO EYE FOR
OPEN CYCLE
TELEPHONE
ENTRY
SYSTEM
SHADOW
LOOP
PHOTE EYE FOR
OPEN CYCLE
STREET
MASTER
UNIT
SECOND
UNIT
INTERRUPT
LOOP
PHOTO EYE FOR
OPEN CYCLE
PHOTO EYE FOR
OPEN CYCLE
4'
TYPICAL
PHOTO EYE FOR
OPEN CYCLE COMPLEX
OR
PARKING LOT
INTERRUPT
LOOP
4'
TYPICAL
SHADOW
LOOP
RUN TWISTED WIRE
FROM LOOP
TO OPERATOR
LOOP WIRE
LAYER
SEAL LOOPS
1/4" OR LARGER
DEPENDING ON LOOP
WIRE SIZE
1-1/2"
* REFER TO LOOP MANUFACTURER’S INSTRUCTIONS FOR DETAILED INSTALLATION & LOOP
WIRING INSTRUCTIONS.
