Controlled Products Systems Group I8 - Manual (Page 20)

TECHNICAL SUPPORT 1 800 908 0884 15 16

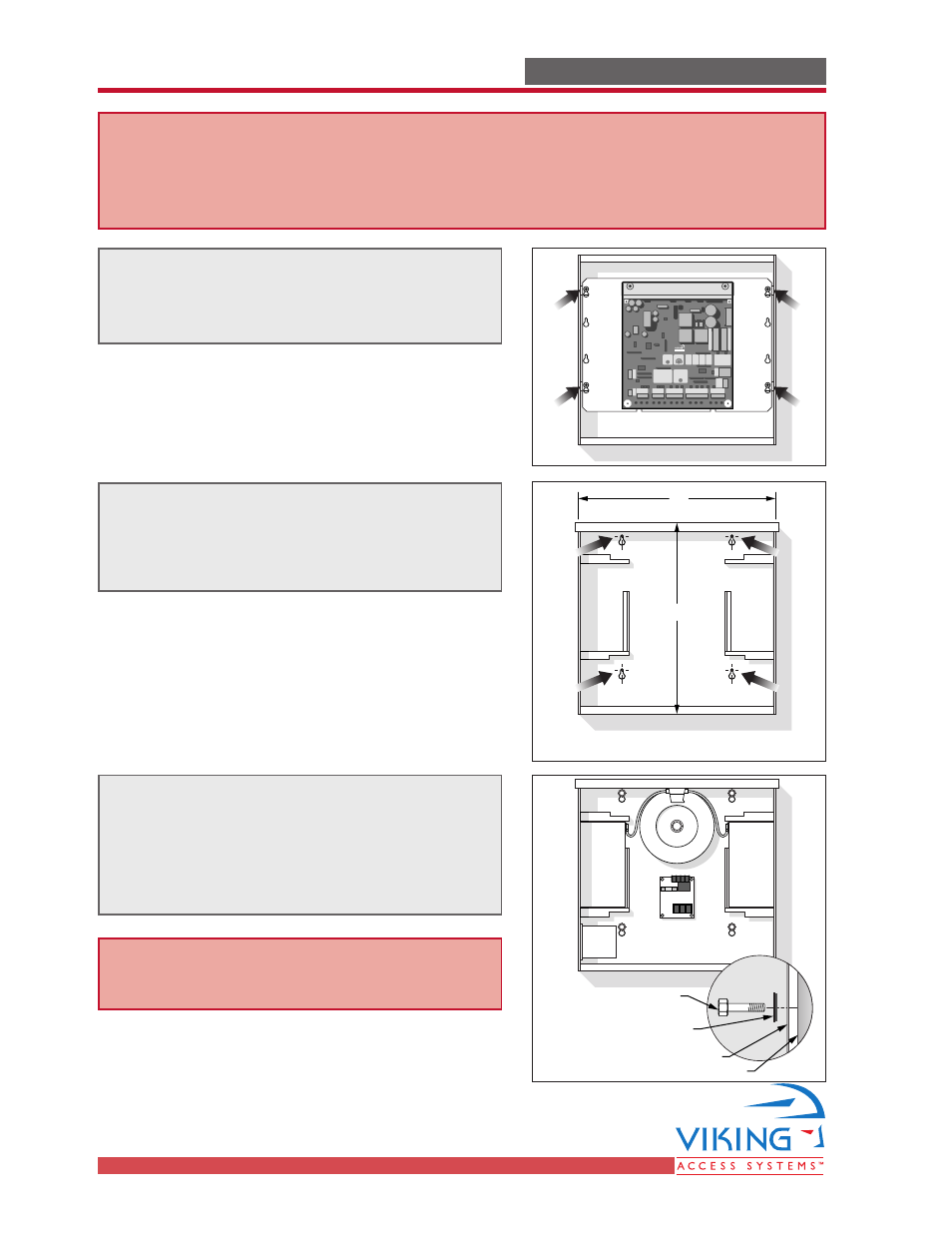

CONTROL BOX INSTALLATION CONTROL BOX INSTALLATION
2. Position the control box in the desired
place and mark the mounting holes.
Prepare the holes to receive the
anchors/fasteners.
17"
Depth: 6.5"
16"
1. Remove the control board mounting plate.
The plate is held in the box by four
screws.
3. Position the control box and secure it to
the mounting surface using the sealed
washers provided (place the rubber side
of the washers against the inside of the
control box).
Mounting Surface
Control Box
Sealed Washer
(Supplied with Unit)
Mounting Fastener
(Customer Supplied)
WARNING - If the control box is not mounted properly it may fall, causing damage
and/or injury. The control box weight is approximately 40 lbs. Be sure that the
substrate being mounted to and the fasteners being used are appropriate to
support the weight of the control box.
Note: Depending on type of anchor used, it
may be necessary to enlarge the
mounting holes in the control box.
