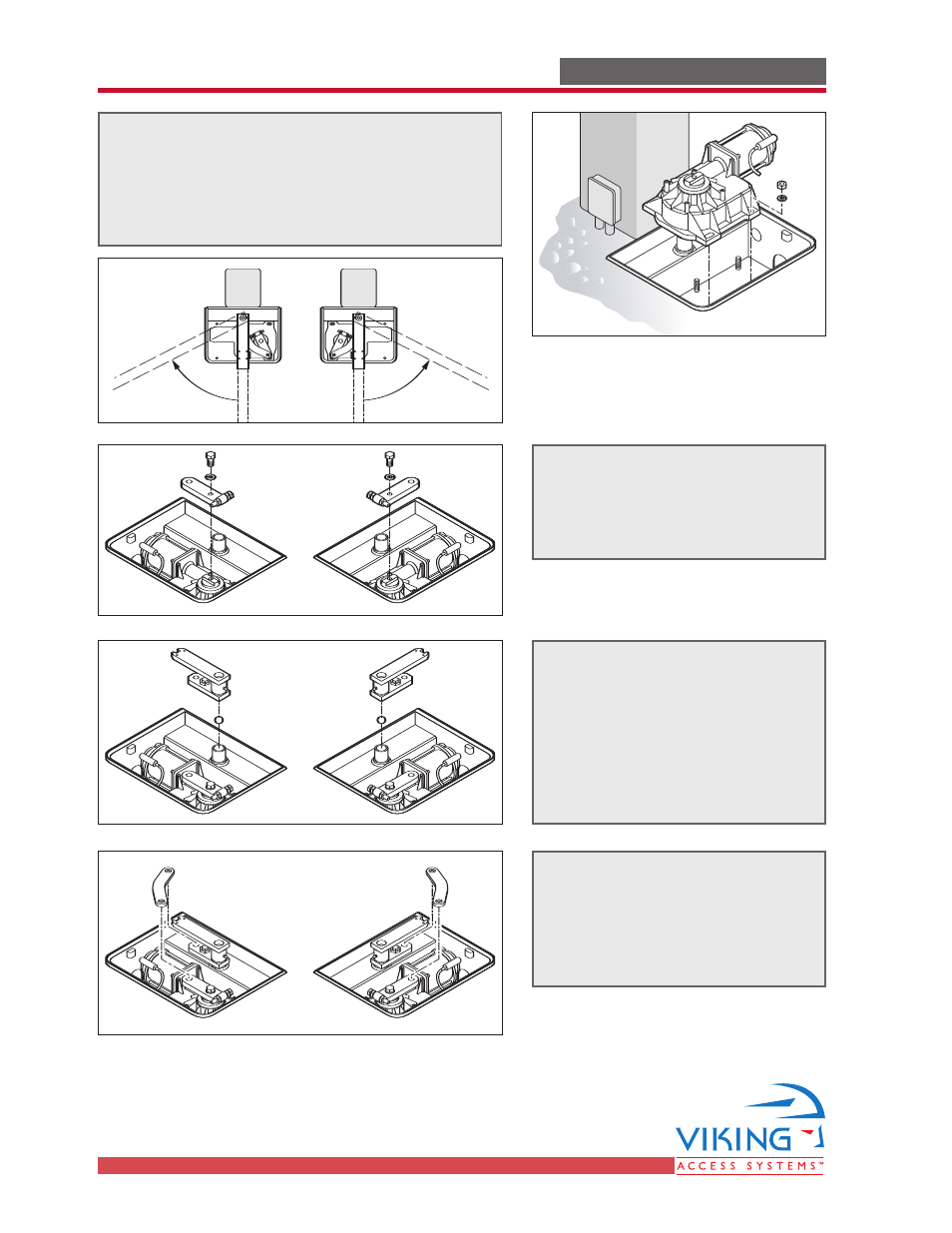

STEP 9
Mount the Gearmotor on the chassis and
secure it using the provided hardware.
Verify the proper direction of the Gearhead
depending on the opening direction.
STEP 10
Install the Primary Drive Arm,
lining up its slot with the flats
on the Gearhead.
STEP 11
Insert the Ball Bearing into the
Intermediate Drive Arm,
lubricating it with silicone-based
grease. Install the arm onto the
Articulation Point of the Gate
Operator
STEP 12
Install the Secondary Drive
Arm onto the Primary Drive
Arm and the Intermediate
Drive Arm as shown.
TECHNICAL SUPPORT 1 800 908 0884 12 16
GATE OPERATOR INSTALLATION GATE OPERATOR INSTALLATION
Opens
Right
Opens
Left
