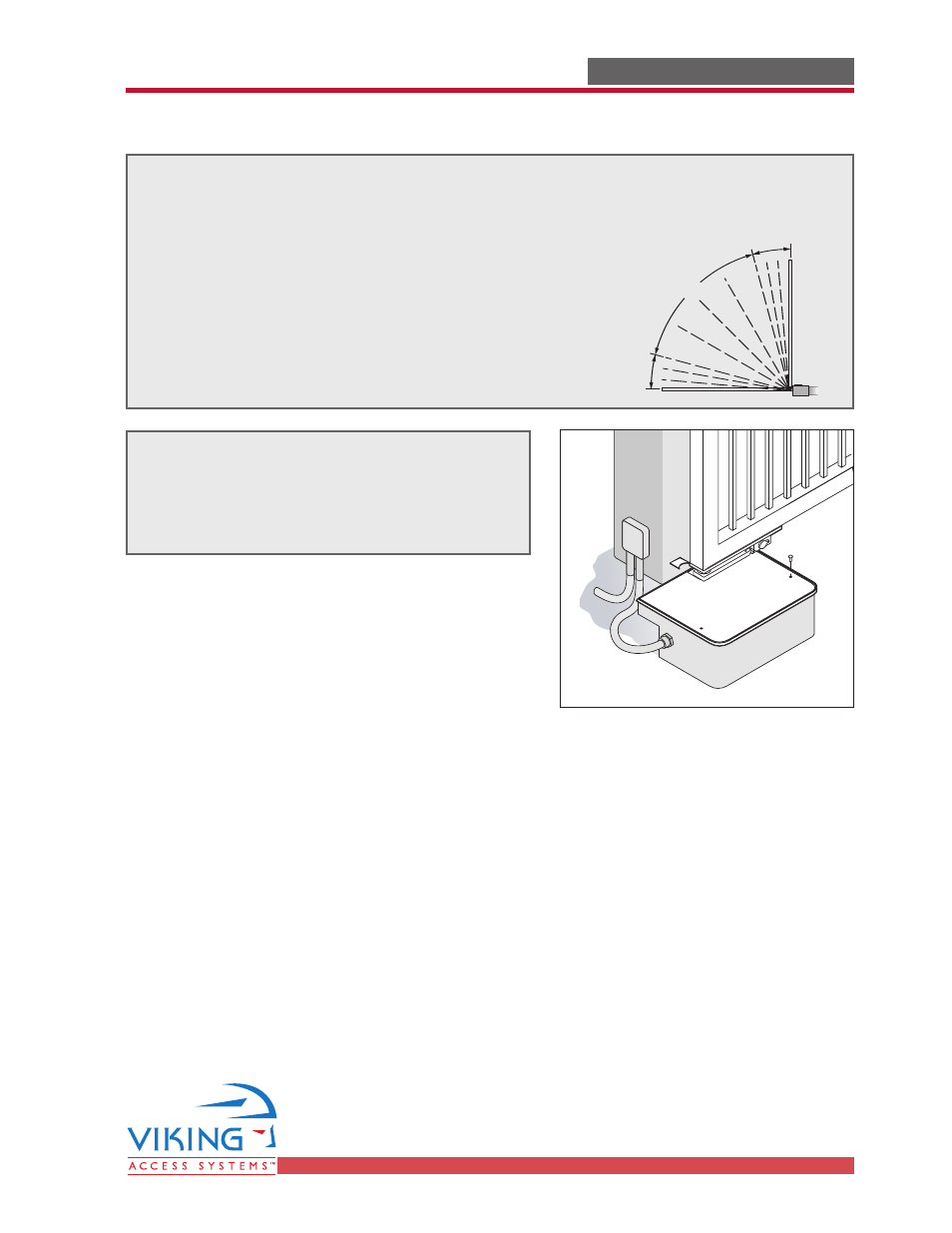

To have the gate operator slow down prior to reaching its limits use the following steps:
1. Setup the positive stops manually to obtain the desired open and closed positions.
2. Allow the gate operator to run a full open
and close cycle (from stop to stop) without
interruption.
3. Allow a complete cycle from limit to limit so
the operator recognizes the limit settings.
Opening/Closing Setup:
GATE OPERATOR INSTALLATION
GATE OPERATOR INSTALLATION
Fast
Slow
Slow
STEP 18
After final installation and adjustment, put
the Aluminum Cover in place and secure
with screw provided.
