9050-065-M-3-11 15

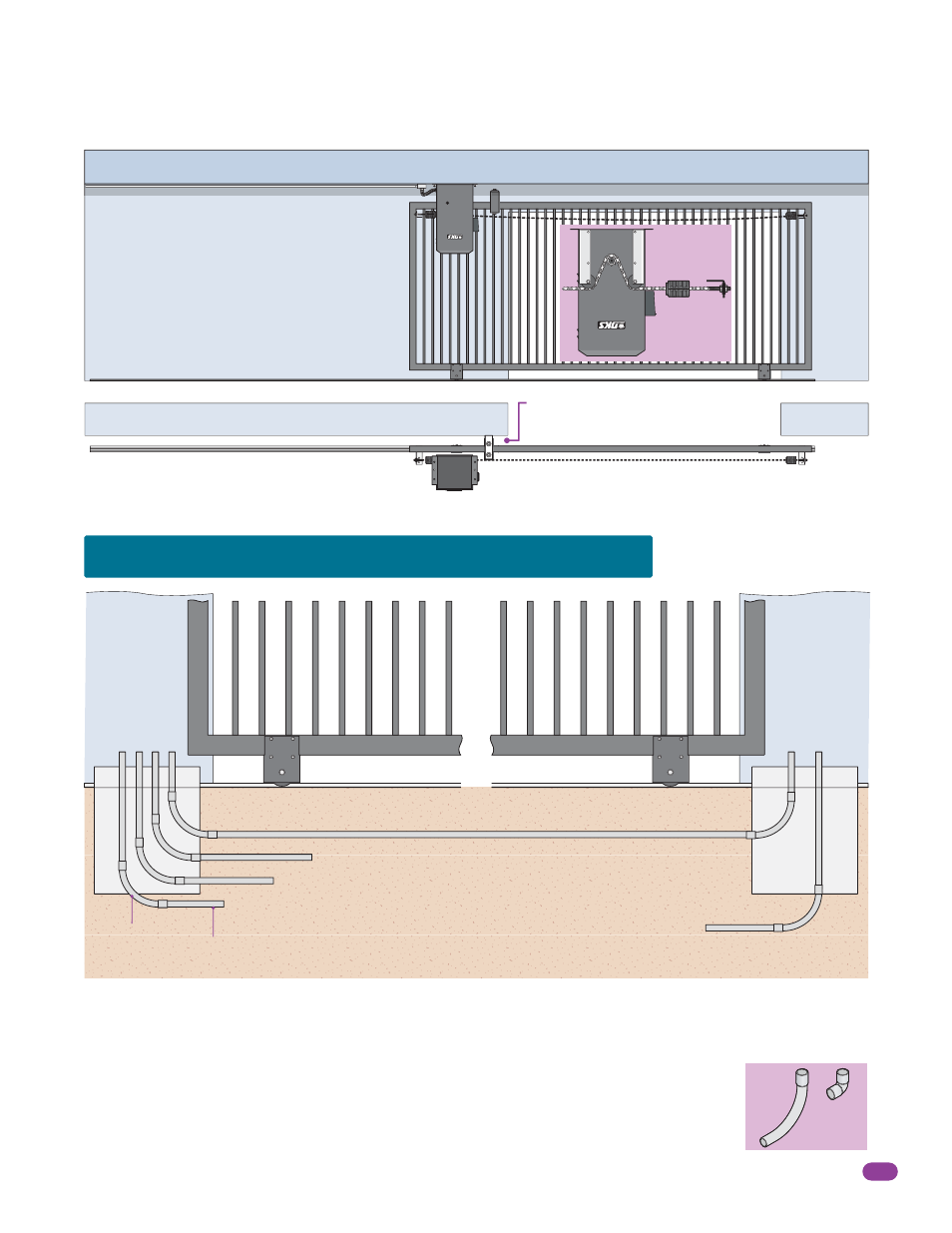

1.5 Underground Conduit Requirements
Sweeps
Concrete
Pad
Primary
Operator
Position
Secondary
Operator
Position
• Operator’s setup is the same as the front
position or rear position with concrete pad
shown on page 12 and 13.
(Front ceiling mount shown here).
• Junction box connection is used for the
ceiling mount installation (See page 16).
Front or Rear Position Ceiling Mount
Can be mounted on the ceiling to conserve floor space.
Chain
Stop
Ceiling
Chain Idler
Wheels
Note: There are NO fluids in the operator
that can leak out. Operator
Bottom
Top View
Chain Setup
• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those
applications where a secondary operator may be used). The conduit requirements for your application may vary from
this depending on your specific needs.
• Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very difficult and can cause
damage to wire insulation.
• DoorKing recommends using 3/4-inch conduit.
• Be sure that all conduits are installed in accordance with local codes.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
Elbow
NO
Sweep
YES
Control and/or P.A.M.S. Wires (Low Voltage wire insulation)
DoorKing’s Primary/Secondary Interconnection Cable (Dual Operator Application Only)
(Secondary Power and Communication wires)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
3/4 Inch Conduit Recommended
A filler post or barrier may need to be
installed between the gate and wall area
(See page 8 for more information).
