9050-065-M-3-11 11
1.3 Typical Gate Types
The Model 9050 operator is designed to be installed on these gate types. See the next 4 pages for
specific operator mounting positions. Individual installations and physical stops can vary.
V-Rail V-Wheel Ornamental
Cantilever
• 300 lb max. weight per gate.
• Single Operator - 16 ft max. gate length.
• Dual Operators - 32 ft max. total gate length.
WA RN ING
MO VIN G G ATE CA N C AU SE Op era te g ate on ly w hen ga te a rea is i n s igh t and fre e o f pe ople an d o bstr ucti ons . Do no t all ow ch ildr en t o p lay in g ate are a or o per ate ga te. Do no t sta nd i n g ate pa th o r w alk thr oug h path w hile ga te is m ovin g. Rea d o wn er’s m anu al a nd s afe ty in stru ctio ns.
SER IOU S IN JU RY OR DE ATH
CLA SS CER TIF IED TO CA N/C SA C2 2.2 NO. 24 7 CO NF OR MS TO AN SI/U L-3 25 VEH ICU LA R G ATE OP ER ATO R HP 533 82 MO DE L SERI AL VOL TS PH AS E AM PS 60 H z MA X GA TE L OA D Doo rKin g, I nc., Ing lew ood , C A

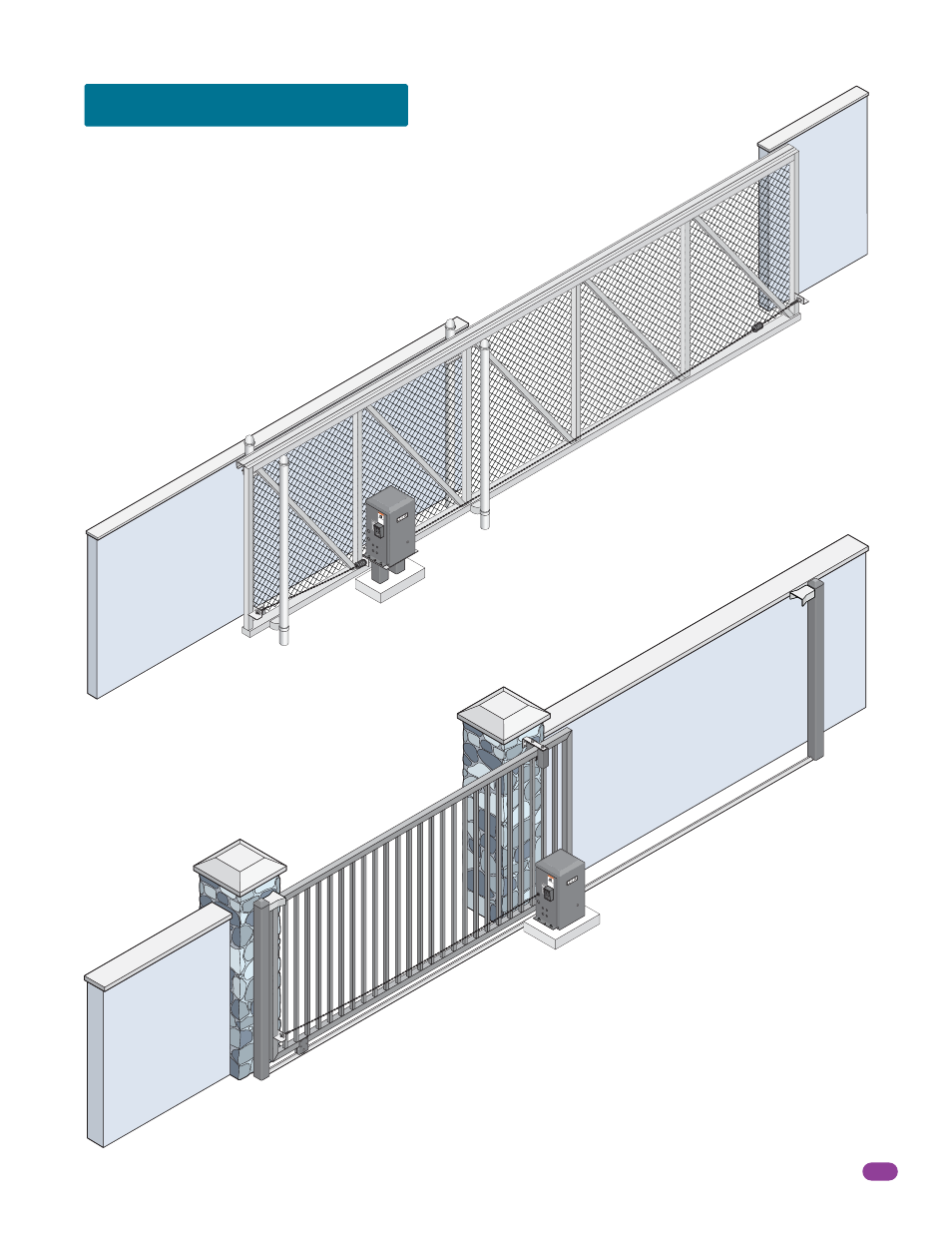

Front position with post mount shown.
Chain stops used as physical stops for gate.
Front position with concrete pad shown.
Gate end retainers on end posts used as physical stops for gate.
WA RN ING MO VIN G G ATE CA N C AU SE Op era te g ate on ly w hen ga te a rea is i n s igh t and fre e o f pe ople an d o bstr ucti ons . Do no t all ow ch ildr en t o p lay in g ate are a or ope rate ga te. Do no t sta nd i n g ate pa th o r w alk thro ugh path w hile ga te is m ovin g. Rea d o wn er’s m anu al a nd s afe ty in stru ctio ns.
SER IOU S IN JU RY OR DEA TH
CLA SS CER TIF IED TO CA N/ CS A C 22. 2 N O. 2 47 CO NF ORM S T O ANS I/U L-3 25 VE HICU LA R G ATE OP ER ATO R HP 533 82 MO DE L SER IAL VO LTS PHA SE AM PS 60 H z MA X G ATE LO AD Doo rKin g, I nc., Ing lewo od, CA
