9050-065-M-3-11 14
Note: Chain stops CANNOT be used for this installation.
End post with a gate end retainer must be installed as
the physical stop if gate does not have any other means
of a physical stop in the open AND close position.
Gate in Close Position
Endless
Idler
Additional hardware required. Post base plate (P/N 2600-418) 4 x 4 steel posts not available from DoorKing. Endless idler
assembly (P/N 2600-818). Additional chain #40 (P/N 2600-442 - 20 ft. per box). Gate end retainer (P/N 1204-004).

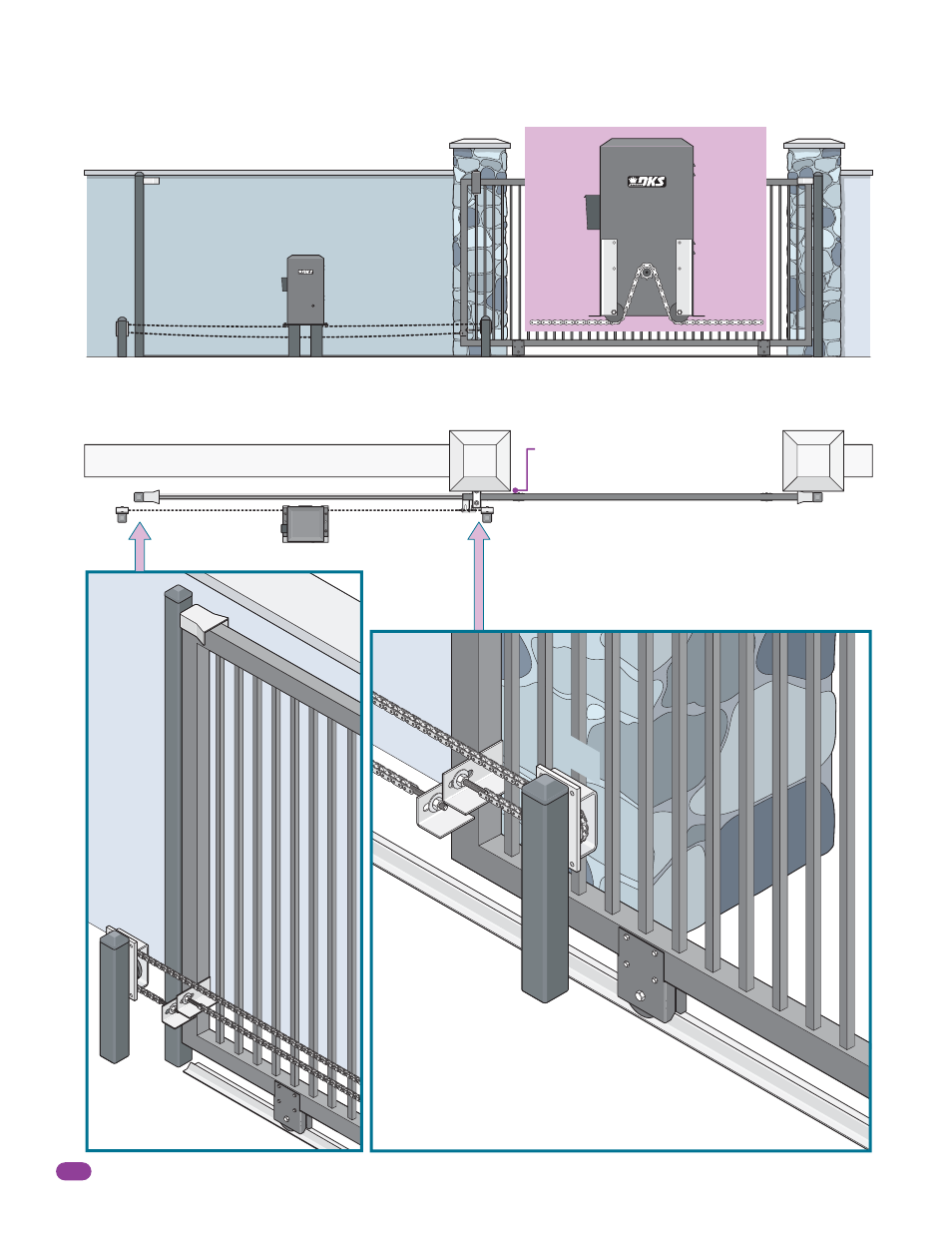

Center Position with Post Mount
Hides the chain from outside the property looking in.
• Set operator chain idler wheels in the
bottom position.
• DO NOT remove chain knockouts.
Chain Idler
Wheels
Gate End
Retainer
End Post
Endless
Idler
Gate in Open Position
Top View
Chain
Setup
See page 18 for
more information
about endless idlers.
A filler post or barrier may need to be
installed between the gate and wall area
(See page 8 for more information).
