Controlled Products Systems Group 6400-080 User Manual
Page 9

6400-065-E-05-07
6400 installation guide 9
2
underground operator installation / enclosure
BEFORE INSTALLING THE GATE OPERATOR
Review the operator specifi cations on page 7.
Review the operator installation dimensions.
Operator and gate should be installed in conjunction to ensure proper alignment
when opening.
Gate should be mounted on heavy-duty ball bearing hinges.
Gate MUST swing freely without binding.
Never attempt to manually operate any gate until the power has been shut-off
unless otherwise specifi ed.
17
.6
6.25
12
.6
1
2

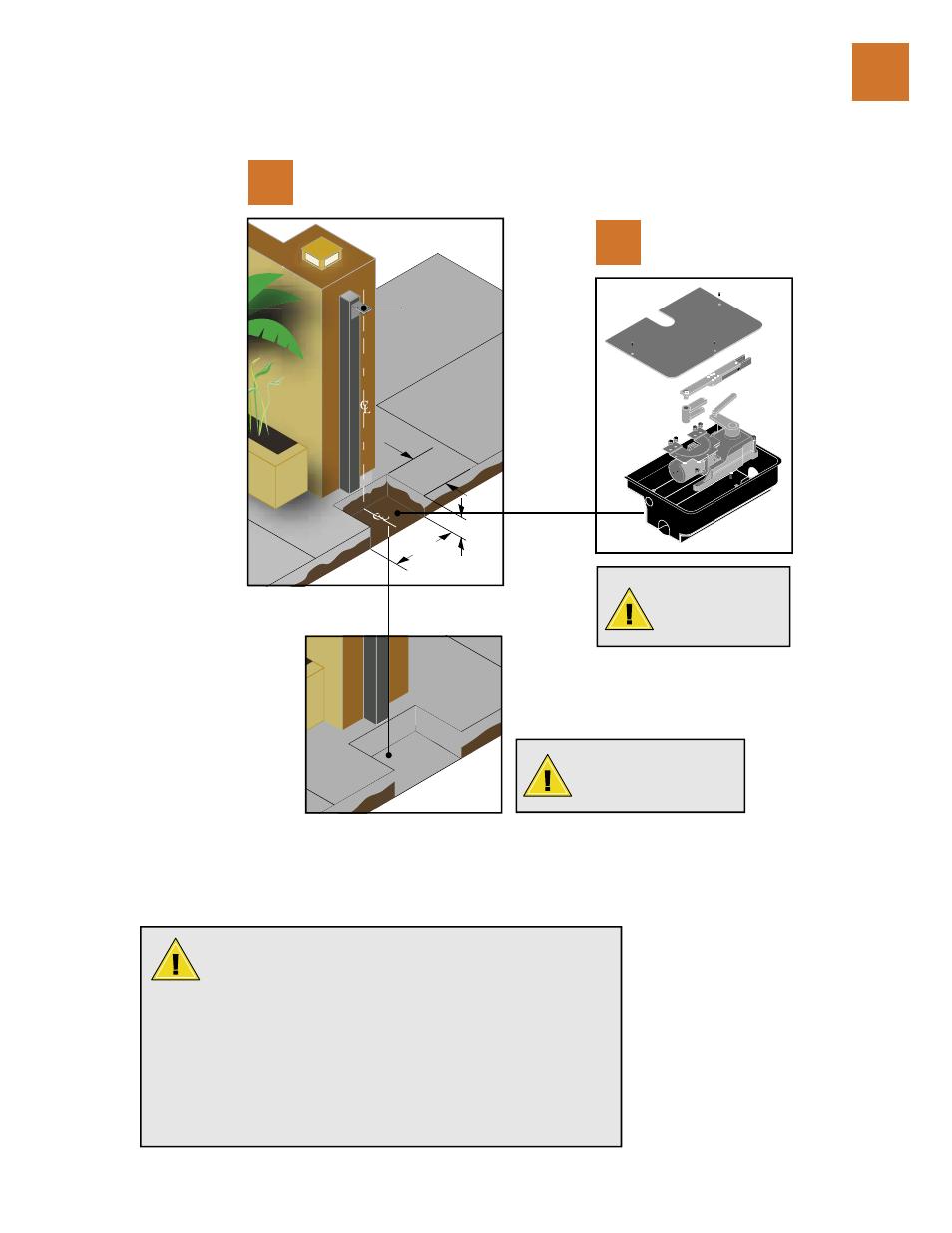

Dig a hole for the enclosure box
using the gate hinge as a center line,
see illustration for dimensions.
Remove components from
the foundation box before
setting in to place.
NOTE: Dimensions
may differ slightly
when fi
tting in the
enclosure.
Gate Hinge
NOTE: Depending on soil
conditions a concrete base
may need to be applied to
avoid run-off.
