6400-065-E-05-07 6400 installation guide 17
REV
ERS
E
LO
OP
EXIT
LO
OP
CTOR
-010
P
REVERSE
LOOP
LOOP DETECTOR
P/N 9406-010
TB 1
LOOP DETECTOR
P/N 9406-010
EXIT
LOOP
LOOP
P/N
TB 1 TB 1

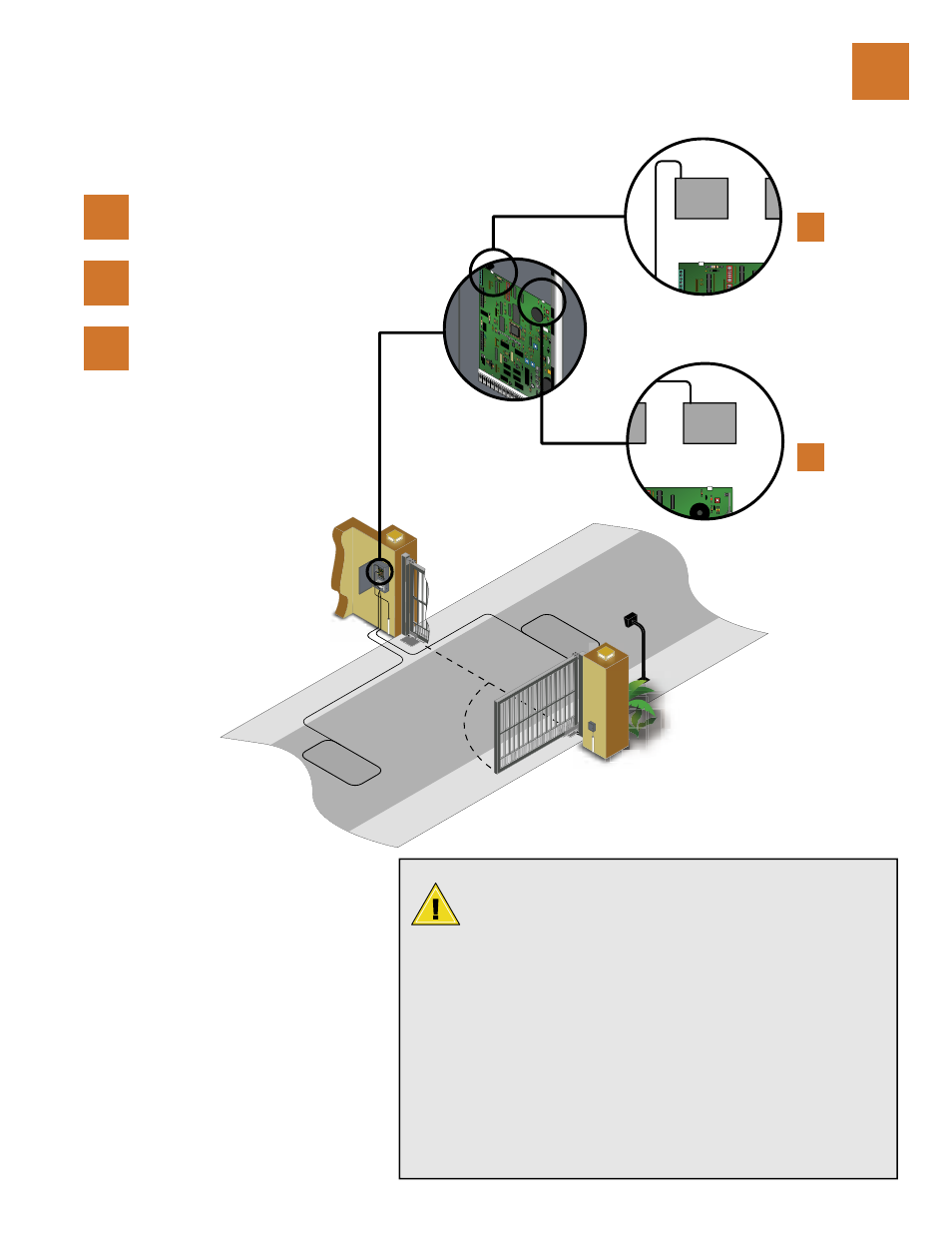

electrical installation / exit/reverse loop detector wiring
3
3 Route and connect the
REVERSE LOOP DETECTOR
cable as shown.
2 Route and connect the EXIT
LOOP DETECTOR cable as
shown.
1
Disconnect power to the gate
operator before installing the
loop detector wiring.
To protect the gated area from accidentally closing on vehicles a
series of Loop Detectors must be installed. Loops are laid underneath,
cut into asphalt or concrete driveways or buried beneath gravel and
earth driveways. A Loop Detection system will sense a vehicle like a
metal detector and send a signal to the gate operator preventing the gate from
automatically closing on a vehicle when exiting.
EXIT LOOP
An exiting vehicle will activate the Exit Loop and automatically open the gate
when exiting the property without having to use a transmitter or keypad.
The Exit Loop can be placed 20-100 feet before the gate so that the gate is
open or partially open as you drive up to it.
REVERSE LOOP
Will stop or reverse the close cycle of an automatic gate preventing the gate
from closing while a vehicle is exiting or stopped in the gate area.
Refer to the separate Loop and Loop Detectors Information Manual (Loop
Info G-3-02) when installing loops.
3
2
