General information / specifi cations – Controlled Products Systems Group 6400-080 User Manual
Page 8

6400-065-E-05-07
8 6400
installation
guide
Class of Operation:
Class I, Underground Residential Swing Gate
Actuator
Type of Gate:
Residential Swing Gates Only
Max Torque:
300Nm
Input Voltage / Operator Voltage:
24 VAC Single Phase Power Input
(transformer provided)
24 VDC
Current:
3 amps
Max Gate Length:
10 Ft.
Max Gate Weight:
300 lb.
Cycles / Hr:
20/Hr with AC Power Transformer Connected
Speed:
90° in approximately 20 seconds
Entrapment Protection:
Primary - Inherent adjustable current sensor
(Type A)
Secondary - Provision for connection of non-
contact (Type B1) sensors.

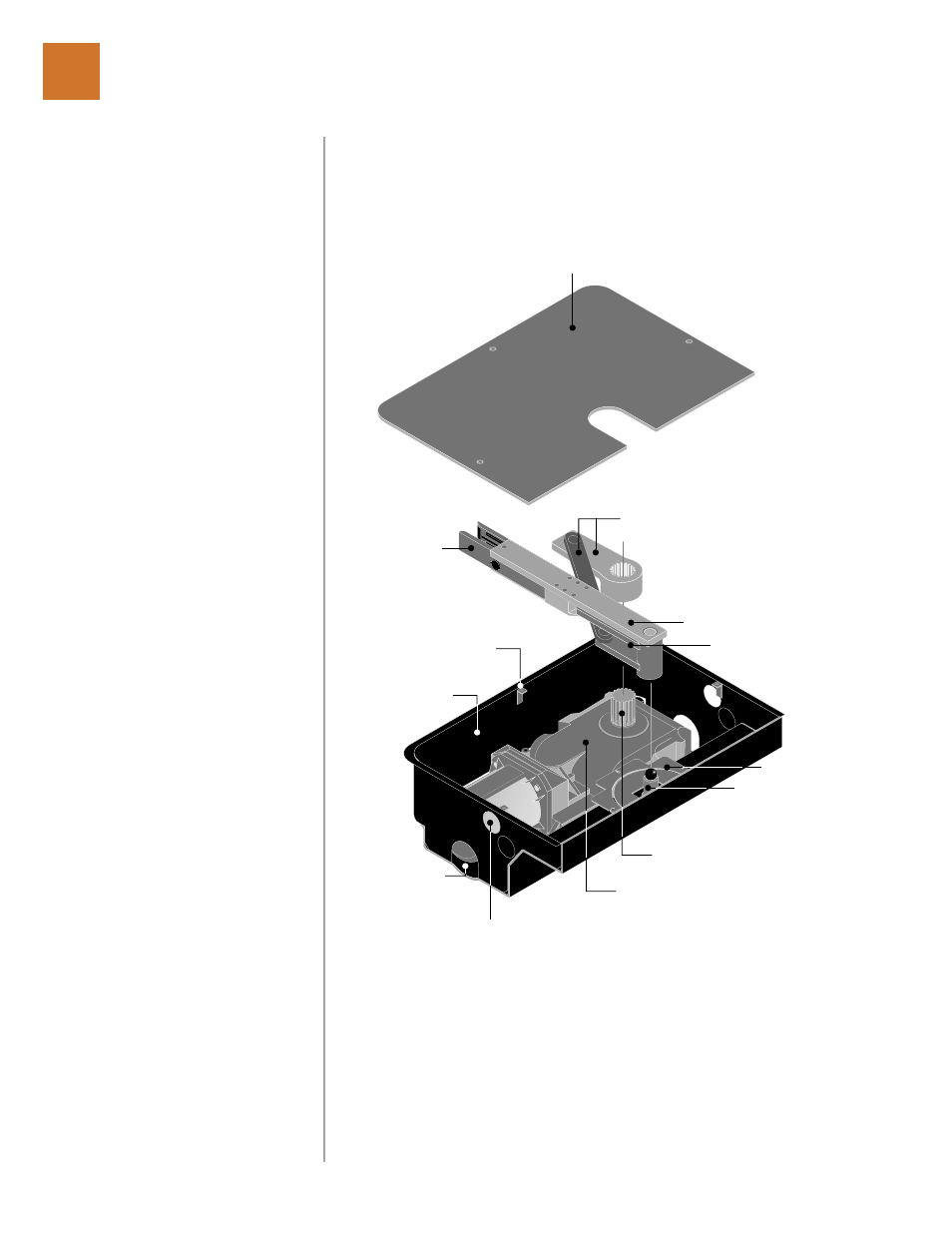

Operator
Cover Plate
Gate Support Bracket
Cover Plate Hinges
general information / specifi cations
1
Foundation Box
Pinion
Release Arm
Limit Switch Plate
Crank Connecting Assembly
Locking Bracket
Conduit Hole
Drain Pipe Hole
Lubrication Slot
