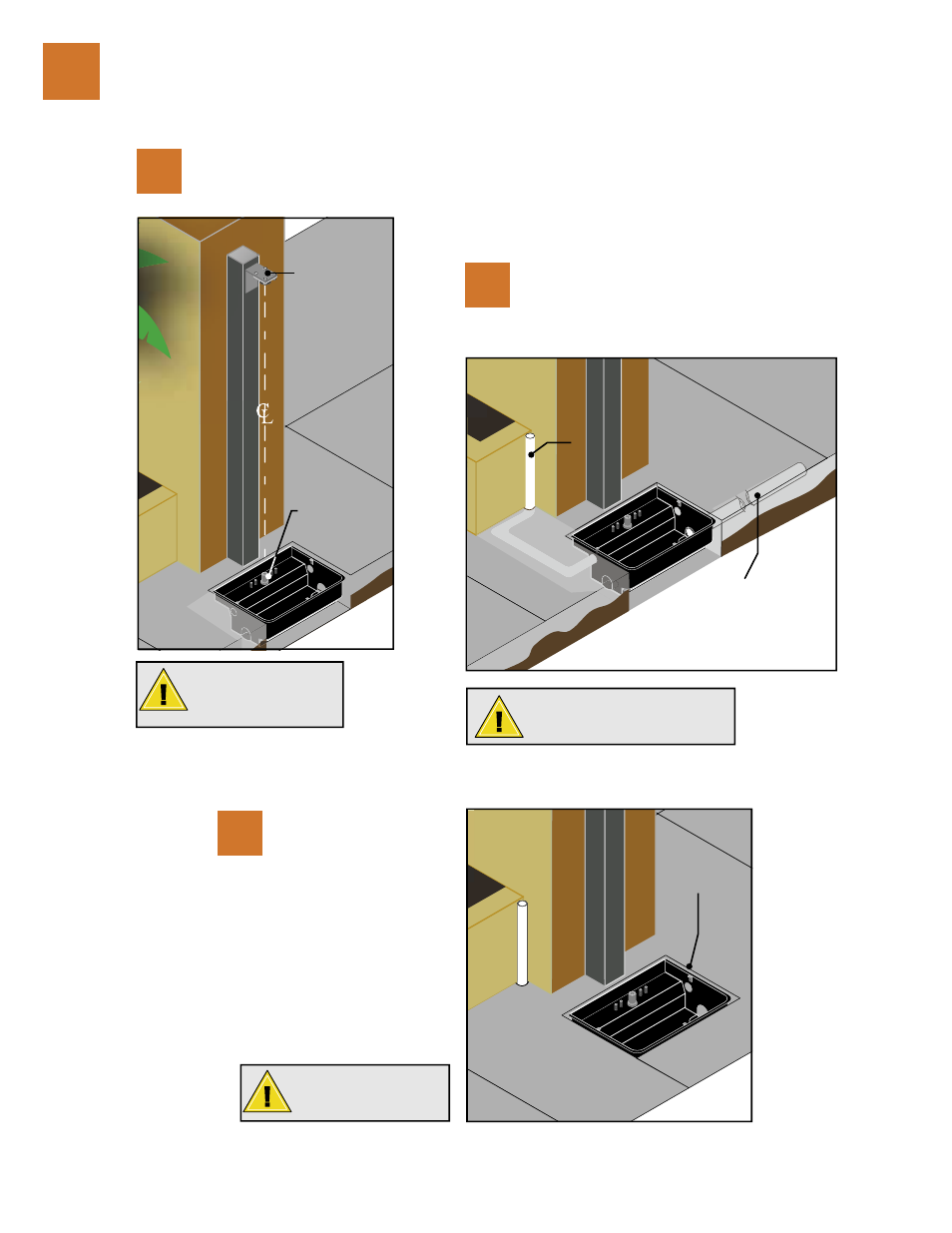

Install electrical and drainage PVC conduits:
Run ectrical conduit from the foundation box to the
control/junction box.
Run drainage conduit from the foundation box to the
nearest drain.
underground operator installation / enclosure
Place the enclosure box inside the
hole ensuring it is leveled and the gate
hinge is centered with the operator
pivot.
4
Pour concrete around the
enclosure box to set in place:
Cover exposed holes
avoiding any concrete to
seep inside the enclosure
box.
Confi rm the operator pivot
and door hinge are centered
and conduits are in position.
5
Gate Hinge
Centered With
Operator Pivot.
Operator Pivot
Drainage Conduit
Electrical Conduit
Pour Concrete
Around the
Edge of the
Foundation
Box.
NOTE: Concrete base
should be fully cured
before setting the
foundation box.
NOTE: Improper drainage will
result in stagnant water leading to
component failure.
NOTE: Concrete should
be fully cured before
installing motor.
