6400-065-E-05-07

12 6400

installation

guide

X

-OUNTING

CONTROL

WHEN INSTALLING THE CONTROL BOX

Be sure the circuit breaker in the electrical panel is in the OFF

position.

Permanent wiring must be installed to the operator as required by local

electrical codes. It is recommended that a licensed electrical contractor

perform this work. Check local building codes prior to installing any

permanent wiring to ensure all wiring and connections comply with local

electrical code requirements.

Control Panel must be properly grounded.

Be sure the control box is properly supported to avoid injury and damage

to the control box.

It may be necessary to temporarily remove the control box components to

avoid any damage when installing.

Depending on installation it may be necessary to drill additional mounting

holes in the control box.

Temporarily cover the terminal strip with tape to avoid damage.

1

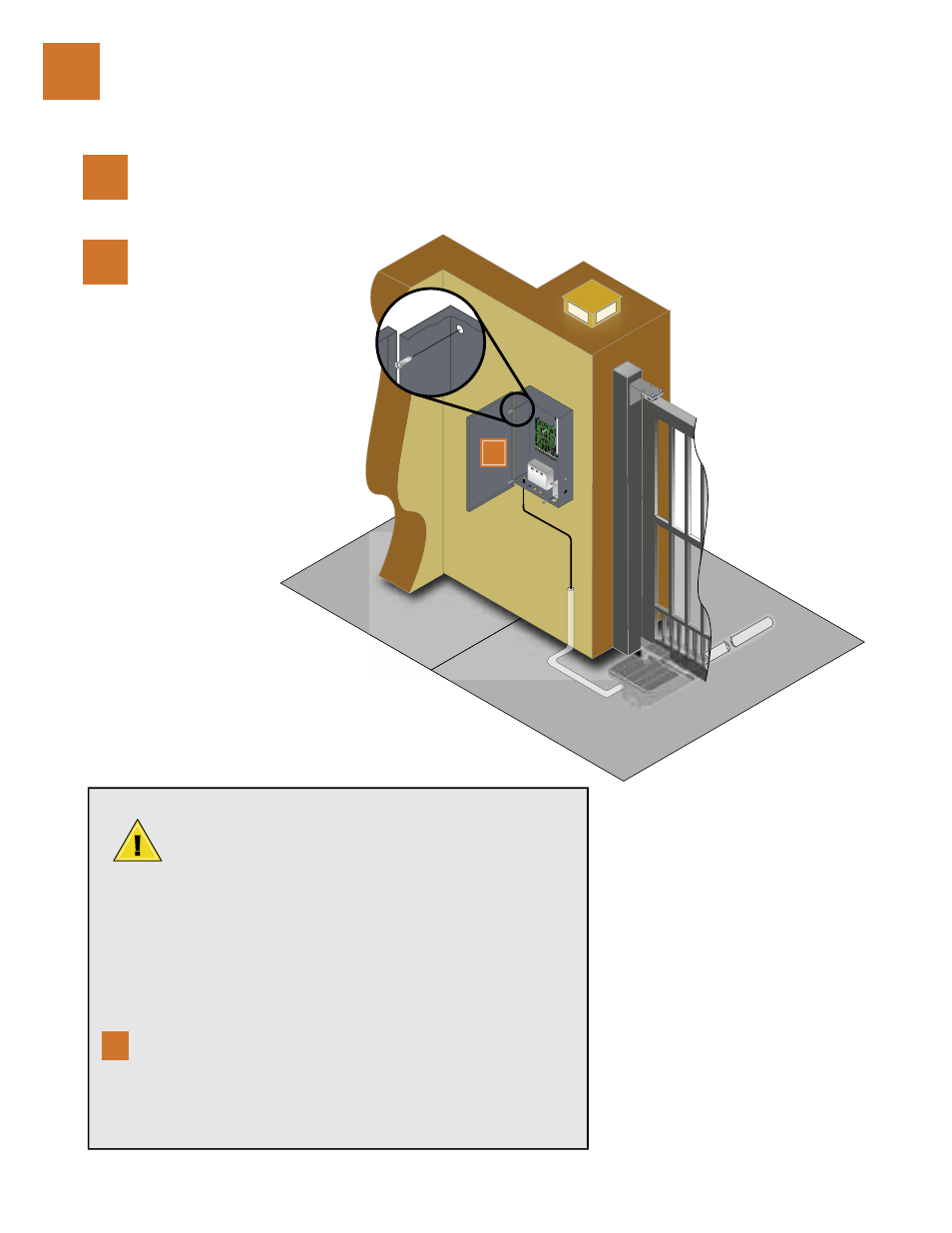

Place the control box in the desired
mounting position, mark and create
the mounting holes.

electrical installation / control box mounting

3

2

Mount and secure the control box
using appropriate hardware. Install
the control box so that the primary
actuator cable can be easily routed
into the control box.

1

1
