Secondary Actuator
1 2 3 4 5 6 7
1 2 3 4 5 6 7
Brown
Purple
Gray
Motor
Yellow
Blue and Brown
Primary Actuator
A
Limit Assembly
Limit Assembly
1 2 3 4 5 6 7
1 2 3 4 5 6 7
Brown
Purple
Gray
Motor
Yellow
Blue and Brown
A
Limit Assembly
Limit Assembly
–
–
+
+

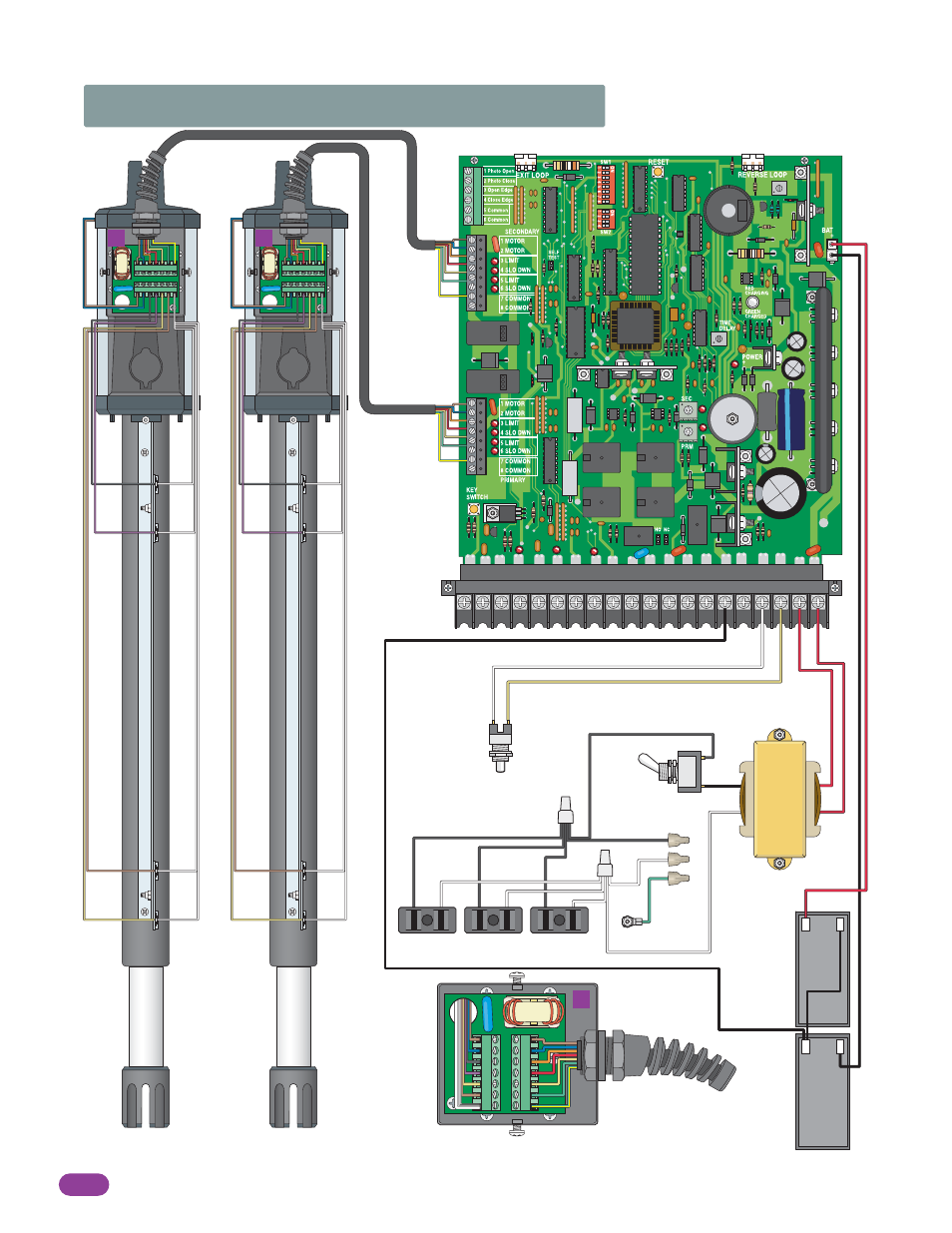

Model 6002 with Deluxe Control Box
Alarm
Reset
Convenience Outlets
Transformer
AC Power
12 V
3 Amp/Hr
Battery
12 V
3 Amp/Hr
Battery
1
7
6
5
4
3
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
1
7
6
5
4
3
2
Yellow Red
Red
Red
Brown 1
Blue 2
Orange 3
Red 4
Yellow 5
Green 6
Green/Yellow 7
Brown 1
Blue 2
Orange 3
Red 4
Yellow 5
Green 6
Green/Yellow 7
Chassis Ground
RED 24V RED BLK 115V WHT
1 Brown
2 Blue
3 Orange
4 Red
5 Yellow
6 Green
7 Green/Yellow
(Motor) Brown 1
(Motor) Blue 2
(Limit) Gray 3
(Slow Down) Purple 4
(Limit) Yellow 5
(Slow Down) Brown 6
(Common) 4 White Wires 7
12
3
4
5
6
7
12
3
4
5
6
7
A
