11
6002-065-M-6-08
Open Position
(Cover Off)
Closed Position
(Cover On)
A support bar must span
the entire length of the
gate to support the gate
pickets. The pickets will
bend if not supported.
Support Bar
Gate in Closed Position
Actuator arm and brackets MUST be level!

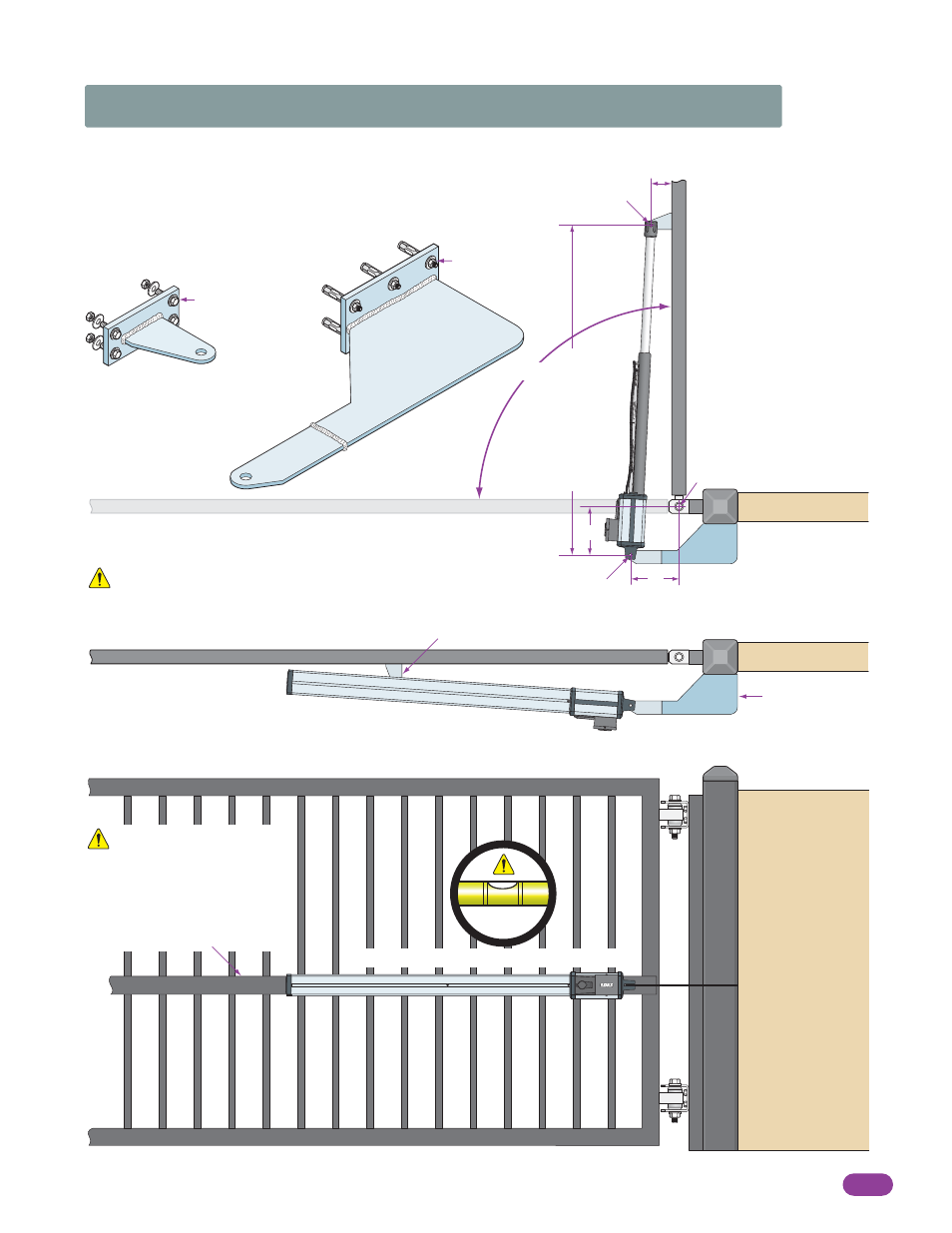

1.3 Gate “Opens to the Outside” Bracket Locations
7”
Addition to rear
bracket must be
fabricated to
reach wall.
Gate Hinge Pivot Point
Front Bracket Pivot Point
Front Bracket
Rear Bracket Pivot Point
90°
7” Do not install the actuator in fully
extended (Bottomed out) position.
This will damage the arm.
46
3
/ 4
” Open Position
Reinforced
Steel Plate
Concrete
Sleeve
Anchors
Bolts with
Lock Washers
Reinforced
Steel Plate
Rear Bracket
Front Bracket
3 1 /
8
”
Mechanically Attaching Brackets
to Surfaces
When mounting brackets with bolts
to the wall and/or gate, weld reinforcing steel plates to the
brackets. Completely weld around brackets. The brackets
must be perpendicular to the wall and/or gate and
horizontally level.
