SECTION 1 - INSTALLATION
1.1 Manual Release
Prior to
beginning the
installation of the swing
gate operator, we suggest
that you become familiar with the
instructions, illustrations, and wiring
guide-lines in this manual. This will help
insure that your installation is performed in an
efficient and professional manner.
The proper installation of the vehicular swing gate operator is
an extremely important and integral part of the overall access
control system. Check all local building ordinances and building codes
prior to installing this operator. Be sure your installation is in compliance with
local codes.
The actuator arm can be manually operated in case of power failure. Never manually release the arm until you have
verified that ALL power has been shut-off to it (Including batteries).
Use key to unlock and remove the cover. Remove allen wrench from inside of cover.
Insert allen wrench
and turn 180° to release the arm.
Remove 3 screws
and slide cover off.

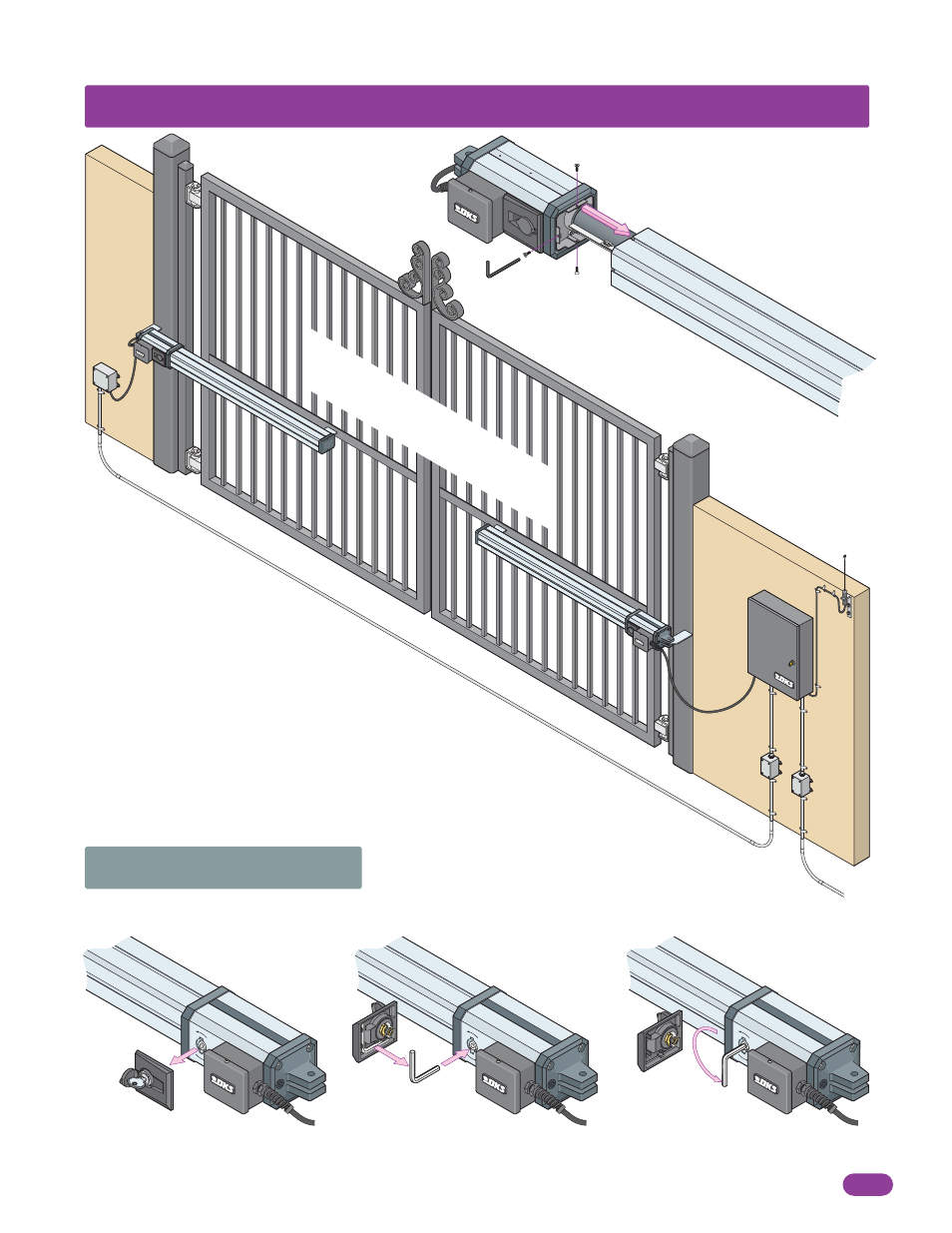

Sample Installation
Dual Gate Operators
