2.4 Main Terminal Wiring
1
ON
2
3
4
SW 2
Switch 3 ON
Controls must be far enough from the gate so that the user is prevented from coming in contact with the gate while operating
the controls. Outdoor or easily accessible controls should have a security feature to prevent unauthorized use. When installing
electrical equipment make certain all wiring complies with local code requirements. Do not power any control devices from the
circuit board other than low voltage devices.

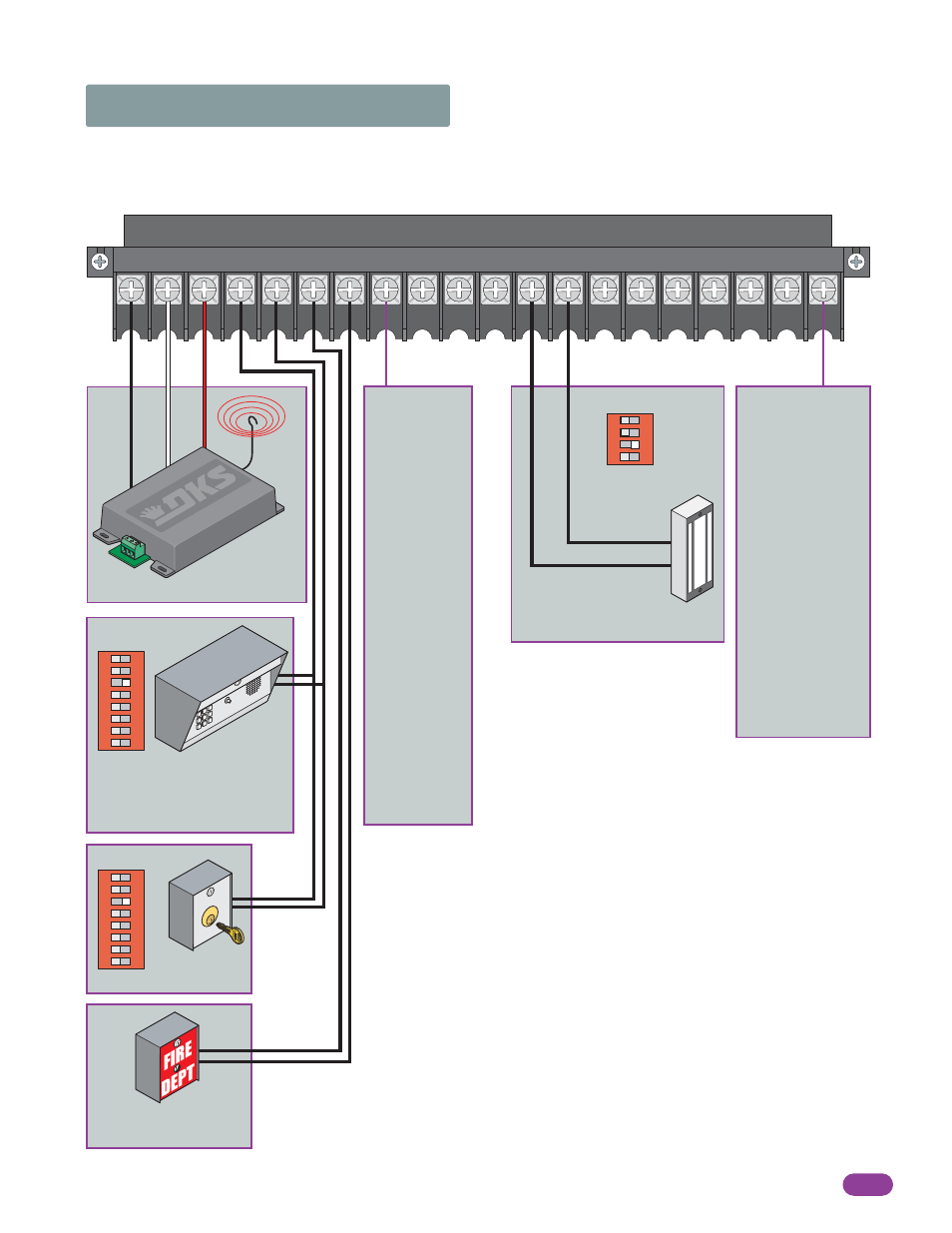

Connect optional
control devices to
the main terminal
strip. Use 18 AWG
wire for all low
voltage wiring,
maximum distance
3000 feet. Use a
low voltage surge
suppressor,
(DoorKing P/N
1878-010) if low
voltage wire runs
exceed 1000 feet.
All inputs to the
terminal strip must
be NORMALLY
OPEN.
1. Com
Com
N.C.
3. 24 V
olt
2. Relay
Magnetic Lock
3-Wire Receiver
Mount inside of control box door.
Reversing input
on Terminal 8
only functions
while the gate
is at the full
open position
or during the
closing cycle. It
should not be
used as an
input for a
secondary
entrapment
protection
device during
the opening
gate cycle.
Refer to
Section 2.2
Secondary
Entrapment
Protection
Wiring.
Knox Box
(Dry contact)
1
ON
2
3
4
5
6
7
8
SW 1
Switch 3 ON
1
ON
2
3
4
5
6
7
8
SW 1
Switch 3 ON
Telephone
Entry
Note: Telephone entry device
must use a separate power
source.
Note: Circuit board
provides 24 VDC to
power maglock.
