1150-065-F-1-11 3
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.

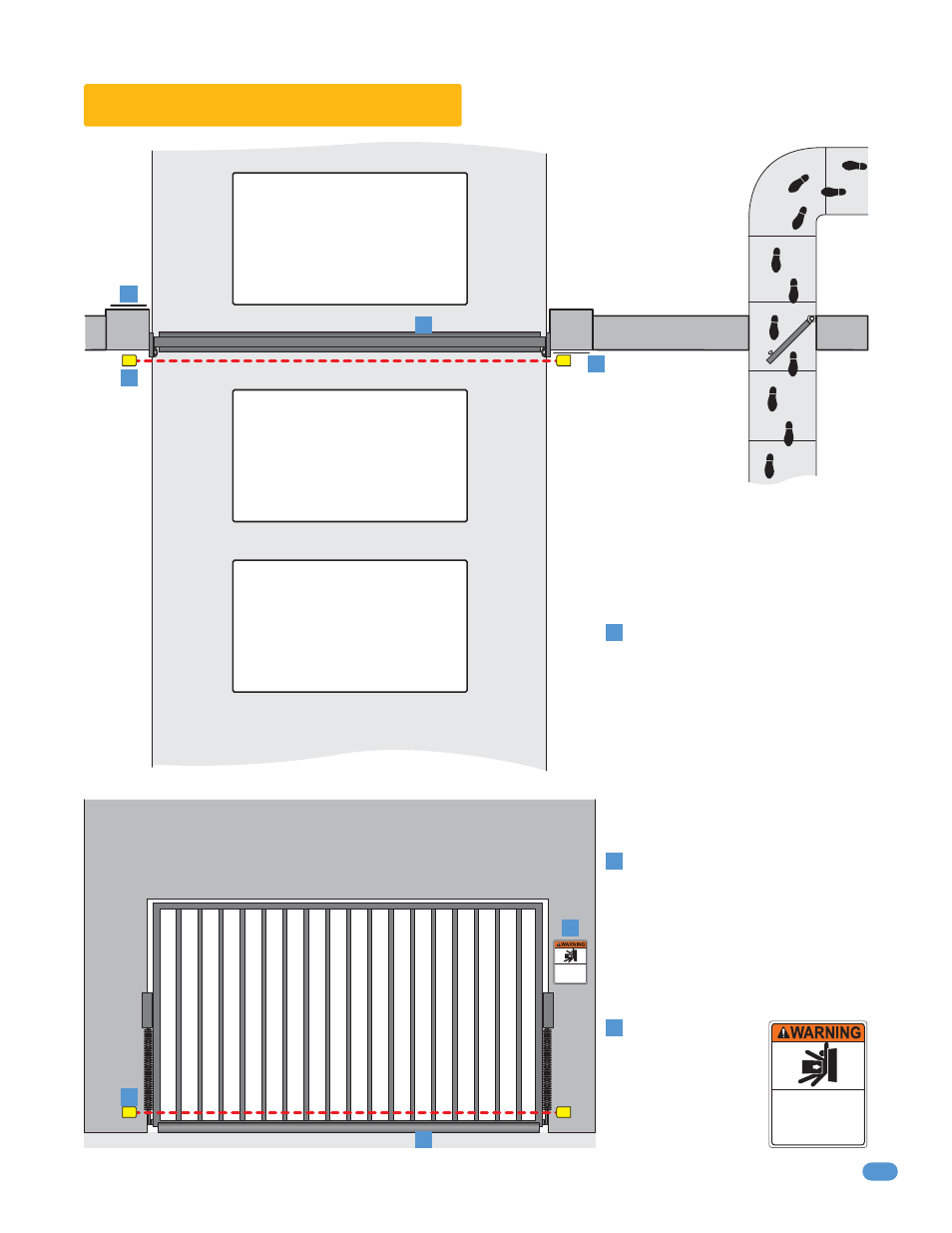

Overhead Gate Protection
Non-contact Sensor
Reverse Loop
Automatic Exit Loop
C
C
A
A
A
Minimizes the potential of the gate
closing when a vehicle is present.
Placement of loops is dependent
on the application.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Placement of loops is dependent
on the application.
(Optional) will provide an open
command to the gate operator
when a vehicle is exiting the
property.
Separate Pedestrian
Walkway
Located so pedestrians
cannot come in contact
with the vehicular gate.
Minimizes the potential of the gate closing
on vehicular or other traffic that loops
cannot sense. Actual placement of sensors
depends on the installation requirements.
Position non-contact sensors so that an
entrapment cannot occur at the lower
travel of the gate. Do not place the sensors
so high that a person could be trapped
under the gate without activating the
sensor.
Contact Sensor B
Minimizes the potential of the gate closing
on vehicular or other traffic that loops
cannot sense. Install the contact sensors
at the bottom edge of the gate. Additional
contact sensors may be added for
additional protection where entrapment
zones exist.
Warning Signs C
C
Permanently mounted
and easily visible from
either side of the gate.
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
B
B
