Header Bracket Assembly
1.6 Mount Powerhead and Finish Installation
Mount Powerhead Directly to Ceiling

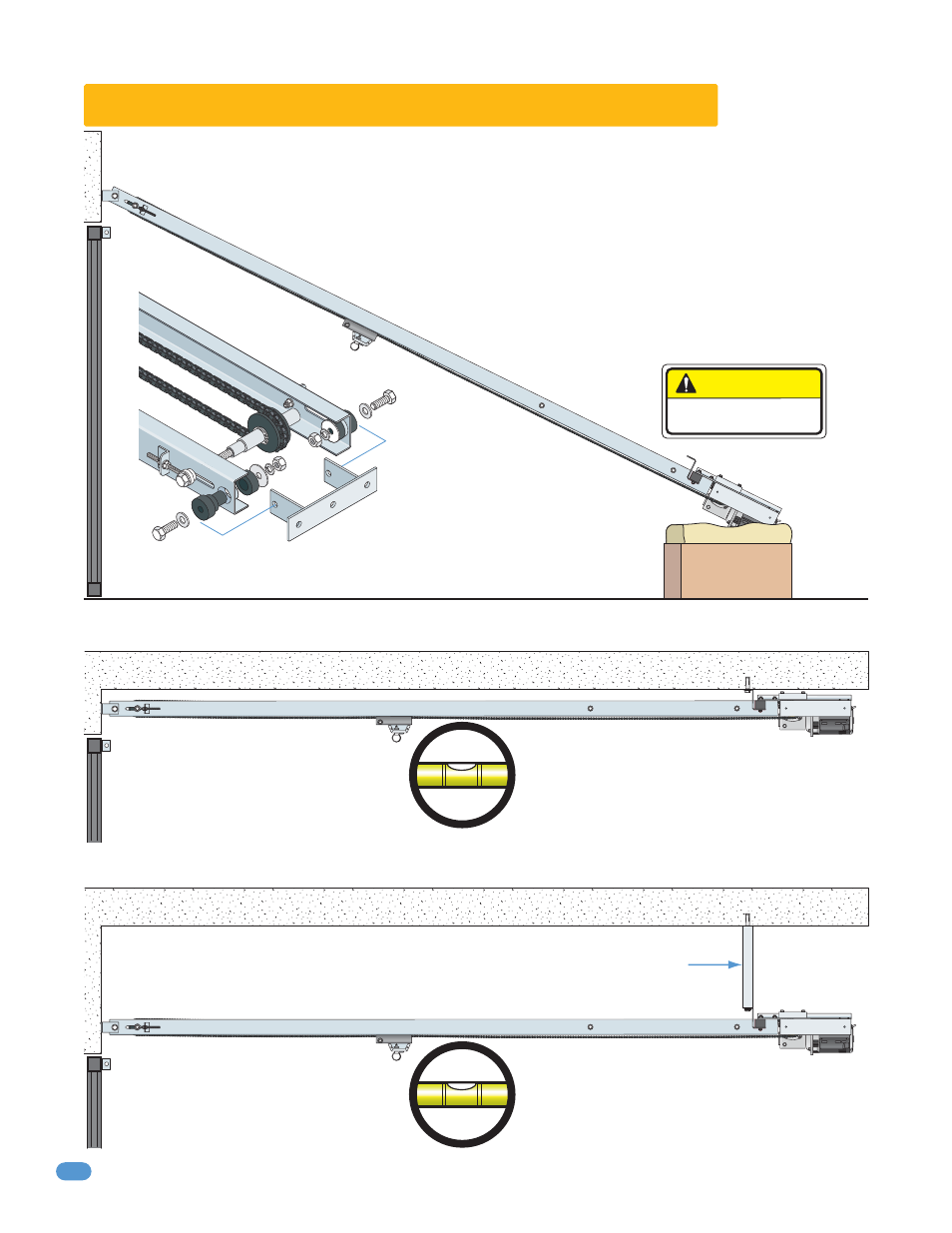

Connect rails to header bracket. The powerhead must be protected from damage. Use the shipping box and packing
material to set the powerhead on while connecting the rails to the header bracket.
Packing Material
Mount Powerhead Using a Ceiling Extension Bracket
Install the powerhead with lag bolts or anchor sleeves.
Rails must be mounted level!
Ceiling extension bracket must be fabricated (2” wide L angle steel is recommended).
Install the powerhead with lag bolts or anchor sleeves.
Rails must be mounted level!
Ceiling
Ceiling
CAUTION
FRAGILE POWERHEAD!
SHIPPING BOX
