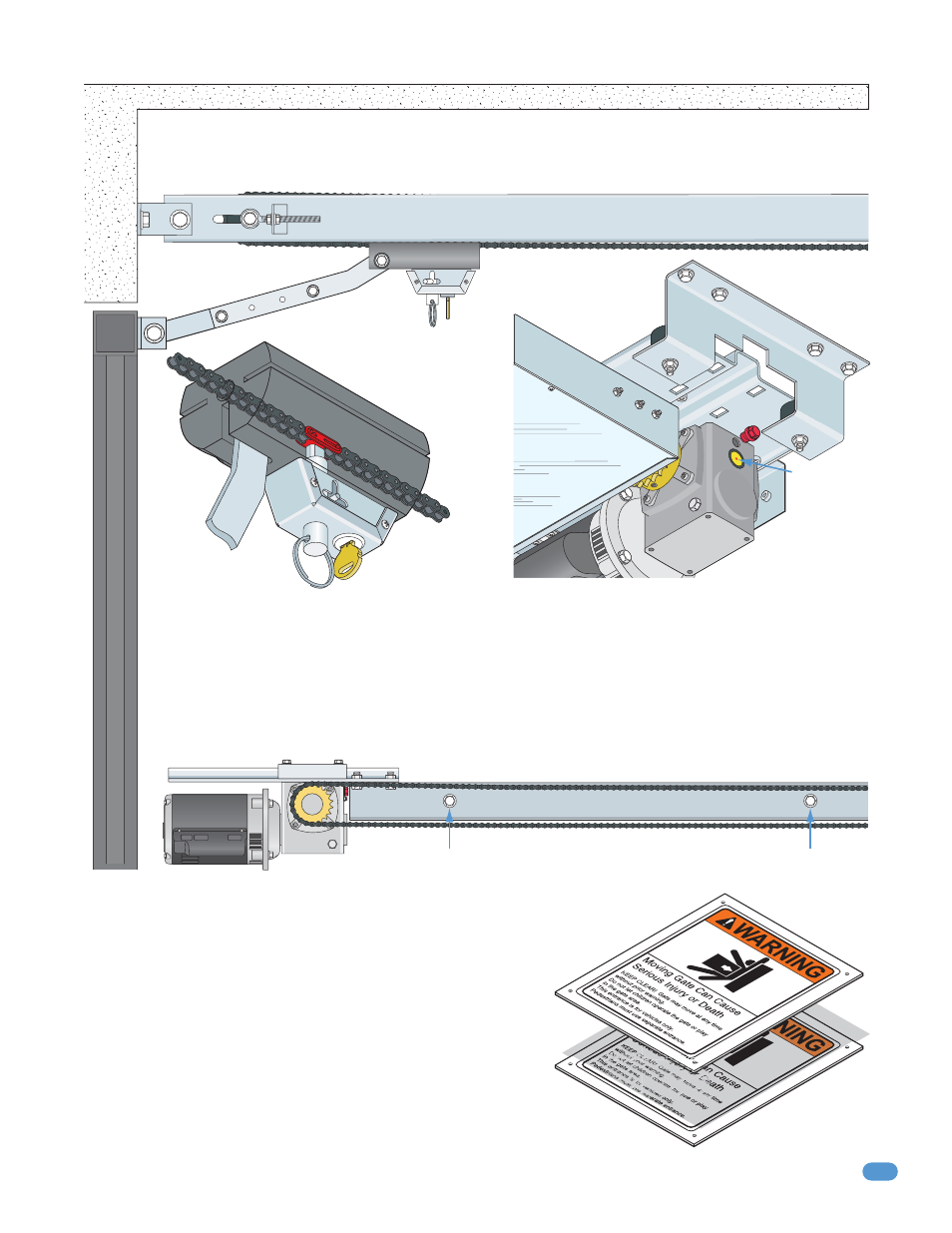

Connect Carriage Arm
Final Chain Adjustment
Carriage assembly must to be unlocked. After connecting the arm, manually raise and lower the gate, be sure the
gate is operating smoothly and is not binding anywhere. Any interference must be corrected now.
Check that the chain is not rubbing on the steel rail separators. Final tension adjustment might be needed.
Installation of Warning Signs
This DoorKing Overhead Gate Operator is shipped with two warning
signs. The purpose of the warning sign is to alert uninformed persons,
and to remind persons familiar with the gate system, that
a possible hazard exists so that appropriate action can be taken to avoid
the hazard or to reduce exposure to the hazard.
• Permanently install the supplied warning signs in locations so
that the signs are visible by persons on both sides of the gate.
• Use appropriate hardware such as wood or sheet metal screws
(not supplied) to install the warning signs.
IMPORTANT: The carriage assembly’s spring
loaded chain catch will only lock into place in the
double master chain link.
Steel Rail Separator Steel Rail Separator
Fill Mark
Install Breather Cap in Gearbox
Install breather cap after operator has been mounted.
Check oil level, use Mobil SHC-629 synthetic gear oil
or equivalent.
IMPORTANT: Gearbox should be filled to fill mark only.
Do not overfill.
