1150-065-F-1-11 15

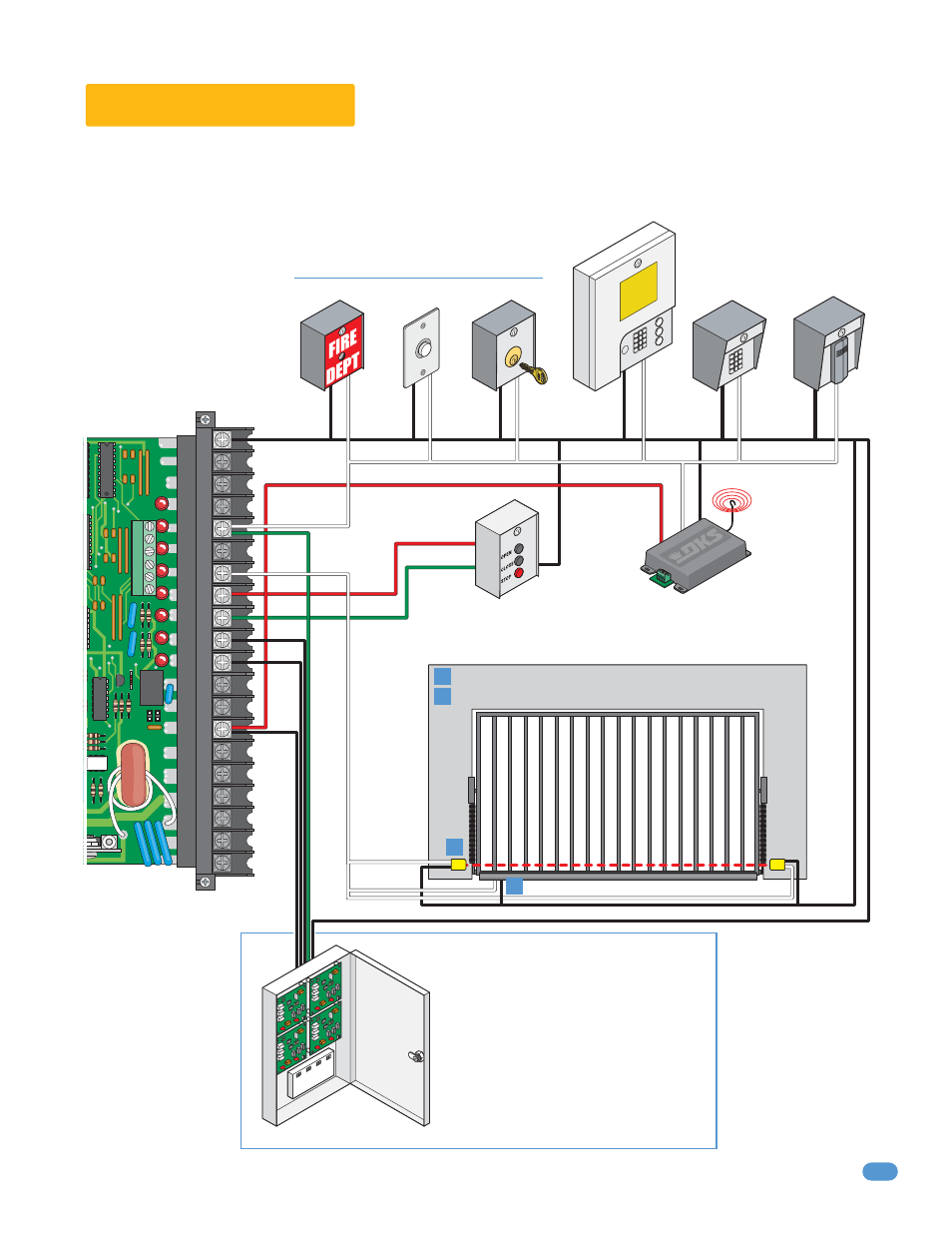

2.5 Control Wiring
Radio Receiver
Controls must be installed far enough from the gate so that the user is prevented from coming in contact with the gate while
operating the controls. Use 18 AWG wire for all low voltage wiring, maximum distance 3000 feet. Use a low voltage surge
suppressor, DoorKing P/N 1878-010 if low voltage wire runs exceed
1000 feet. All inputs to the main terminal must be Normally Open (NO).
DoorKing Access Control System (Model
1833, 1835, 1837 or 1838) tracker system
can be connected.
This system can keep track of gate operator
cycle count, shorted inputs, loop detector
problems, any forced entry attempts, if the
gate has struck anything during the open or
close cycle, power interruptions, etc.
For more detailed information refer to the
Tracker Installation and Wiring Manual,
DoorKing P/N 2351-010.
Terminal 5 Optional
Com
Com
Relay
24 V
olt
Com
Open
Close
Key Switch Lock Boxes Push Button
Stand-Alone
Keypad
Stand-Alone
Card Reader
Telephone Entry
Gate Tracker
3-Button Control Station
Entrapment Protection
Dry-Contact
Note: All stand-alone and
telephone entry devices must
use a separate power source.
NO NC
A
Non-contact sensor
Contact sensor
These systems can be used together.
B
A
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
B
