Class of Operation Model 1150 - UL325 Class II, III and IV
Type of Gate Vehicular high traffic overhead gates only.
Horsepower/ Voltage / Phase ½ HP - 115 VAC - 60 Hz. Single-Phase
Current 5.4 Amps
Max Gate Dimensions Height - 14 Feet, Width - 25 Feet
Gear Reduction 40:1 Worm gear in a continuous oil bath.
Chain Type #40
Cycles Per Hour Continuous Duty
Speed Approximately 10 inches per second
Entrapment Protection Primary - Inherent entrapment sensing
system (Type A)
Secondary - Provision for connection of
a non-contact and/or contact sensor
(Type B1 and/or B2)
SPECIFICATIONS
DoorKing, Inc. reserves the right to make changes in the products described in this manual without
notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions or
changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this
manual. This manual is copyrighted, all rights reserved. No portion of this manual may be copied,
reproduced, translated, or reduced to any electronic medium without prior written consent from
DoorKing, Inc.

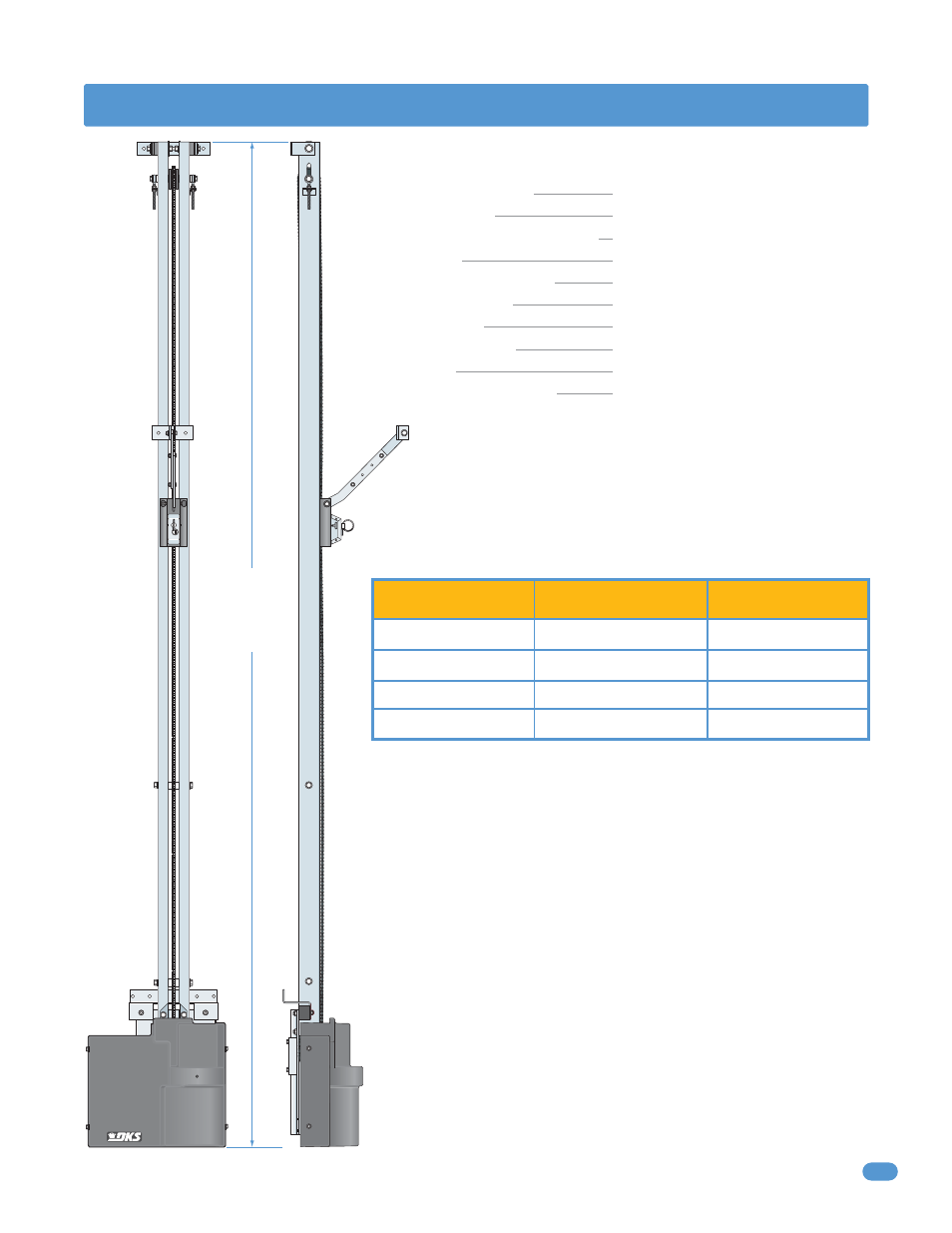

Dimension A
1150-120
1150-121
1150-122
Rail Part Number Max. Gate Height Dimension A
1150-123
12 feet 5 inches
14 feet 5 inches
16 feet 5 inches
18 feet 5 inches
8 feet
10 feet
12 feet
14 feet
