1150-065-F-1-11

8

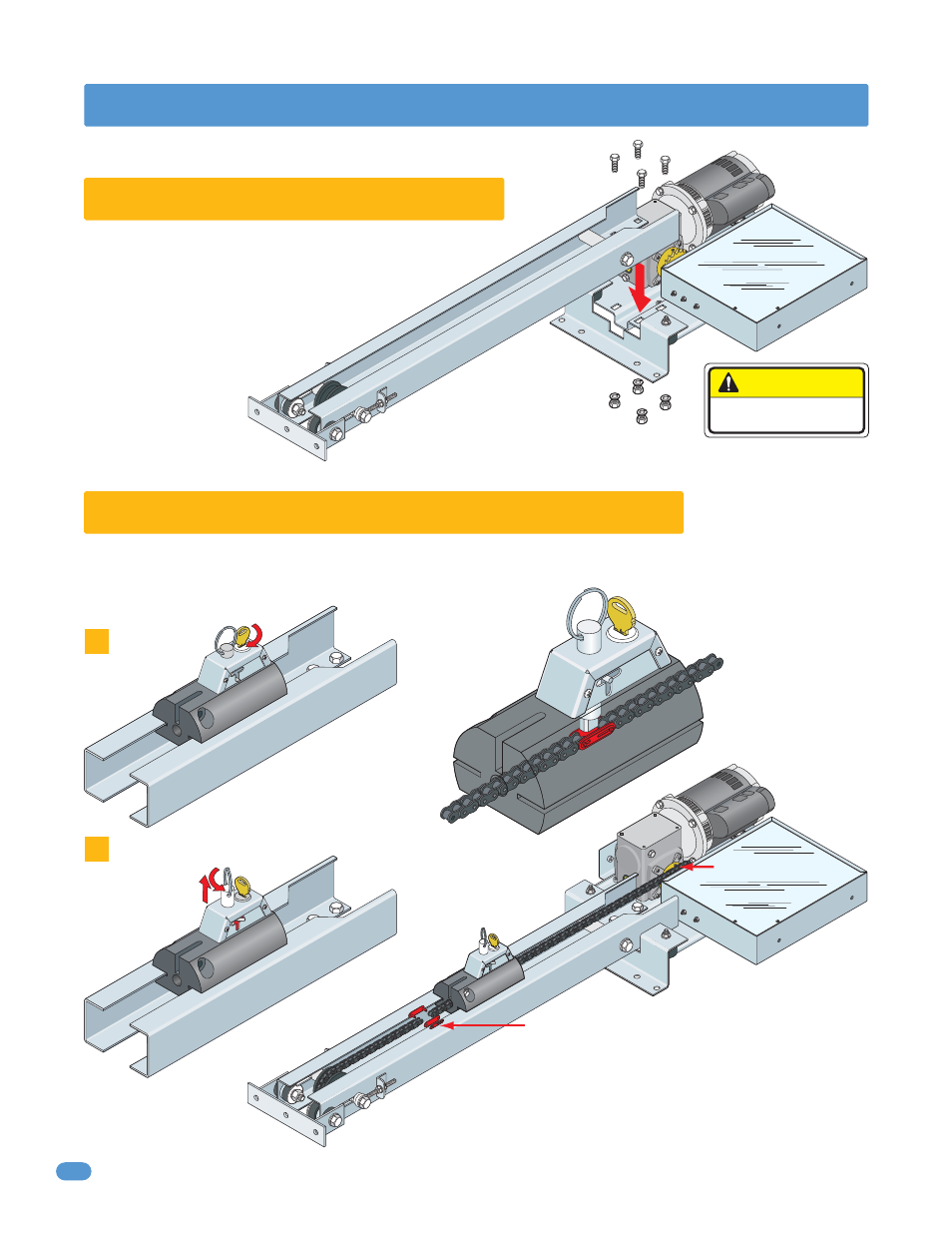

SECTION 1 - INSTALLATION

1.1 Attach Rails to Powerhead

Secure rails with 4 bolts, nuts and lock washers.

1.2 Manual Release and Chain Connection

Unlock

Pull and Turn Ring

Double Master Chain Link

Cut wire ties and route chain around gear reducer’s sprocket and through unlocked carriage assembly (To unlock assembly,
use key to unlock release ring, pull ring up and rotate 45° to release spring loaded chain catch). Connect chain together with
double master link.

IMPORTANT:

The carriage assembly’s

spring loaded chain catch will only
lock into place in the double
master chain link.

1

2

CAUTION

FRAGILE POWERHEAD!

Sprocket
