1150-065-F-1-11 21

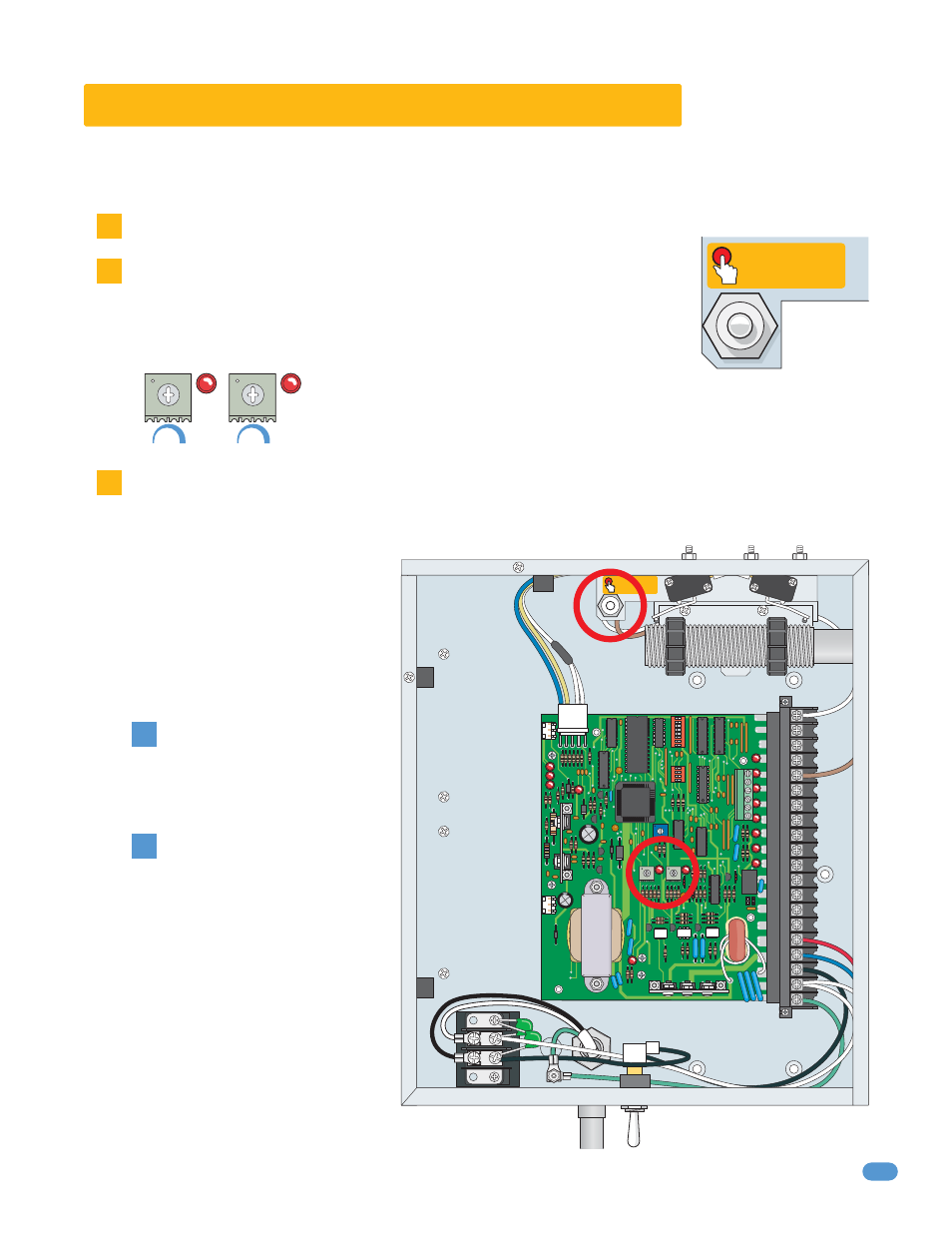

3.4 Inherent Reverse Sensors Adjustment
This vehicular gate operator is equipped with an inherent (Type A) entrapment sensing system. This system will sense an
obstruction in either the opening or closing gate cycles and will cause the gate to reverse direction should an obstruction be
encountered. For this system to function correctly, the gate must be properly installed and work freely in both directions.
After the limit switches have been adjusted, activate the gate operator by pushing “Push to Operate” button.
NOTE: You may have to repeat these
steps a few times to get the gate to
completely cycle open and closed.
While the gate is OPENING, slowly rotate the reverse open sensor clockwise until the
gate stops and the Open LED will light up, then rotate the sensor 1/8 turn counter-
clockwise. After the gate has stopped, push “Push to Operate” button again to
continue the open cycle of the gate. Auto close timer (If on) will then close the gate,
completing the gate’s open/close cycle.
While the gate is CLOSING, slowly rotate the reverse close sensor clockwise until the
gate stops and the Close LED will light up, then rotate the sensor 1/8 turn counter-
clockwise. The gate will automatically reverse direction and open. Auto close timer
(If on) will then close the gate, completing the gate’s open/close cycle.
Place an immobile object along
the path of the gate so that the
gate strikes it while opening.
Gate must stop! Re-adjust Open
sensor if necessary.
Place an immobile object along
the path of the gate so that the
gate strikes it while closing.
Gate must reverse direction and
open! Re-adjust Close sensor if
necessary.
Min Max
OPEN CLOSE
Min Max
Sensitivity Sensitivity
NOTE: Clockwise INCREASES the reverse sensitivity.
Counter-clockwise DECREASES the reverse sensitivity.
PUSH TO OPERATE
technician use only
1
1
2
2
3
Test Reverse Sensors
LIMIT
LIMIT
PART
TIME
DELAY
REV SENSE
CLOSE
REV SENSE
OPEN
1 ON
2
3
4
1 ON
2
3
4
5
6 7
8
NO NC
EXIT
LOOP
REVERSE
LOOP
GATE FORCED
PUSH TO OPERATE
technician use only
