CTI Products, Inc.
EXB-IP User Guide
Introduction
12
R
EAR
P
ANEL
DC IN
OPTION
10BASE-T
1 2 3 4 5 6 7 8
ON

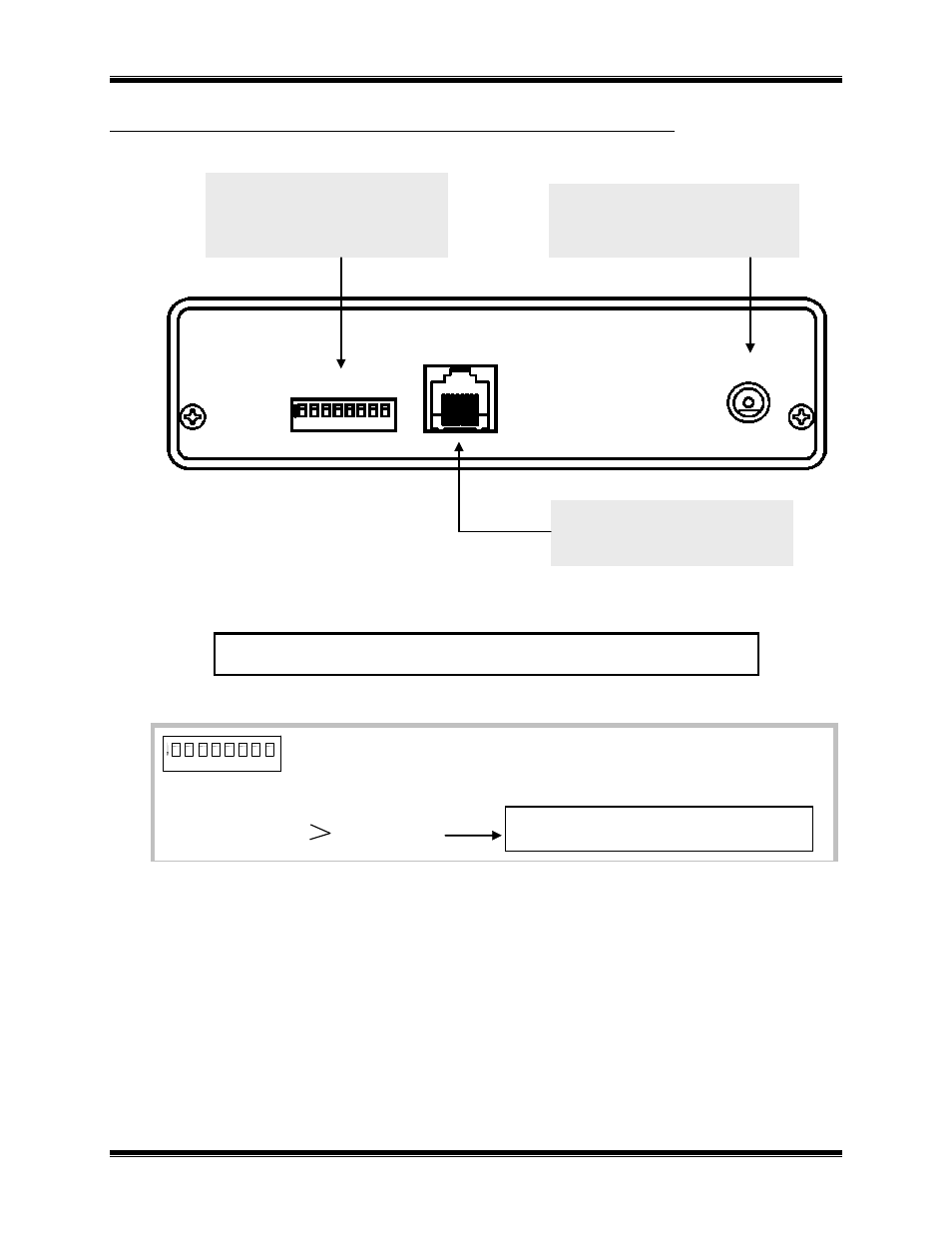

Figure 4 EXB-IP module Rear Panel
10Base-T Warning
Do not connect the 10Base-T connector to an MCN Network connector.
Damage could result.
Option Switch Settings
1
2
3
4
5
6
7
8
ON
1. Must be Up
2. HTTP Page Default Down
Up = Enabled
Down = Disabled
3. Not Used
Default Up
4. Not Used
Default Up
5. Not Used
Default Up
6. Not Used
Default Up
7.
8.
Ethernet Mode
Switch:
7
8
10Base-T
UP
UP
Ethernet Connector
DC IN
Input Power
This powers only this unit.
Power is not passed to the
Network Out connector.
OPTION Switches
Selects the active Ethernet
connector.
See table below.
Ethernet Connector
*** See 10Base-T Warning ***
