BDx-Series Installation & User
’s Manual
1
2
9
10
3
4
5
6
7
8
11
12
13

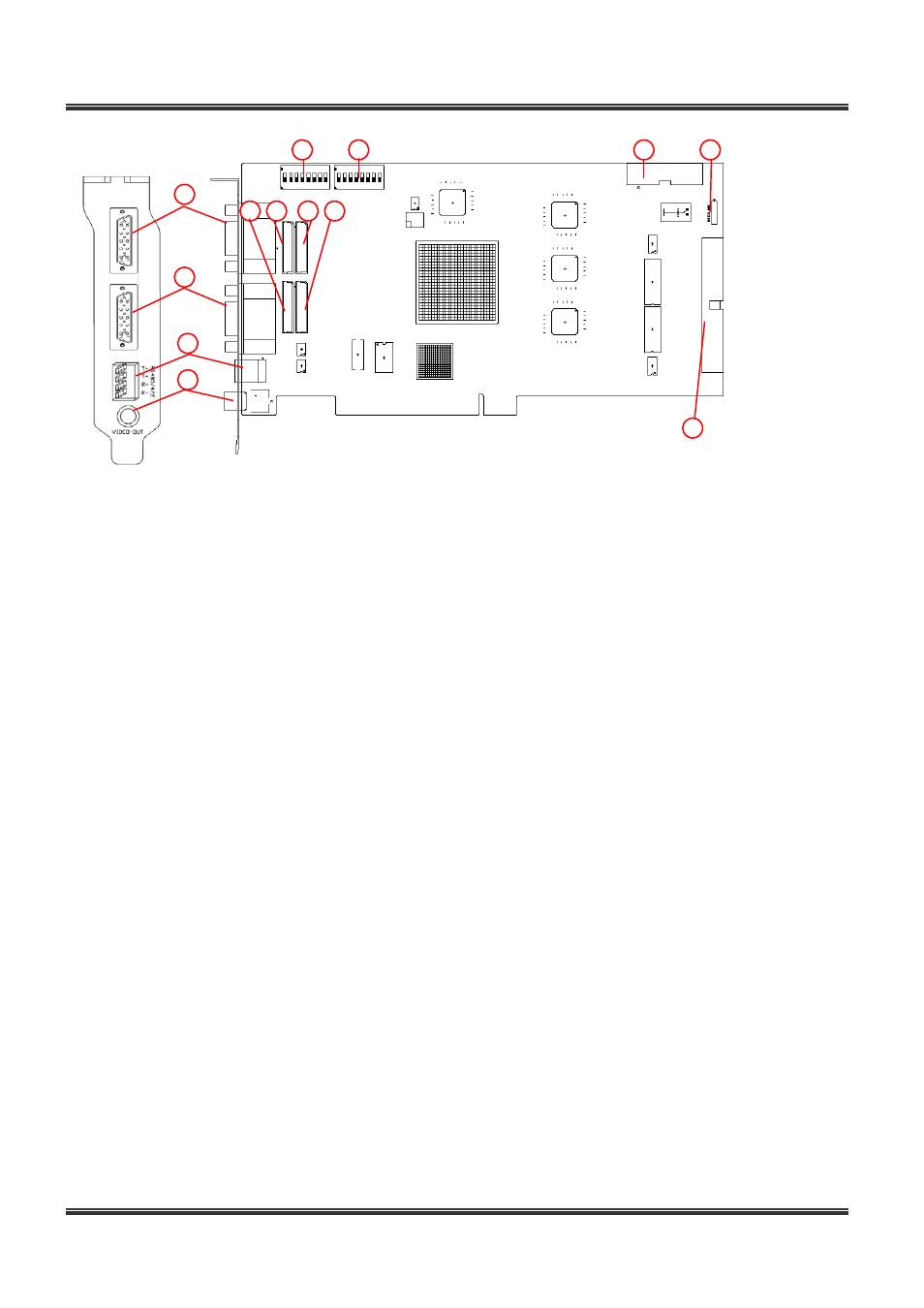

< Capture B/D – RBDS4812 / RBDS4824 / RBDS4848>
①
Video Inputs (external connector):
Camera In 1 ~ 8
⑦
Video termination switch: Camera In 1 ~ 8
Termination resistor(75ohm)
②
Video Inputs (external connector):
Camera In 9 ~ 16
⑧
Video termination switch: Camera In 9 ~ 16
Termination resistor(75ohm)
③
Video Inputs (internal connector): 1 ~ 4
⑨
RS422/RS485 port : Camera PTZ control
④
Video Inputs (internal connector): 5 ~ 8
⑩
Video Output : Multiple video output
⑤
Video Inputs (internal connector): 9 ~ 12
⑪
Watch-Dog Connector : Hardware Reset
⑥
Video Inputs (internal connector): 13 ~ 16
⑫
DIO Connector : DIO control port.
Connecting to the DIO board
⑬
Audio Connector : Audio interace port.
Connecting to the Audio16 board
