Preparing for Operation
49
SIPART PS2 Manual
A5E00074631-01
Shield

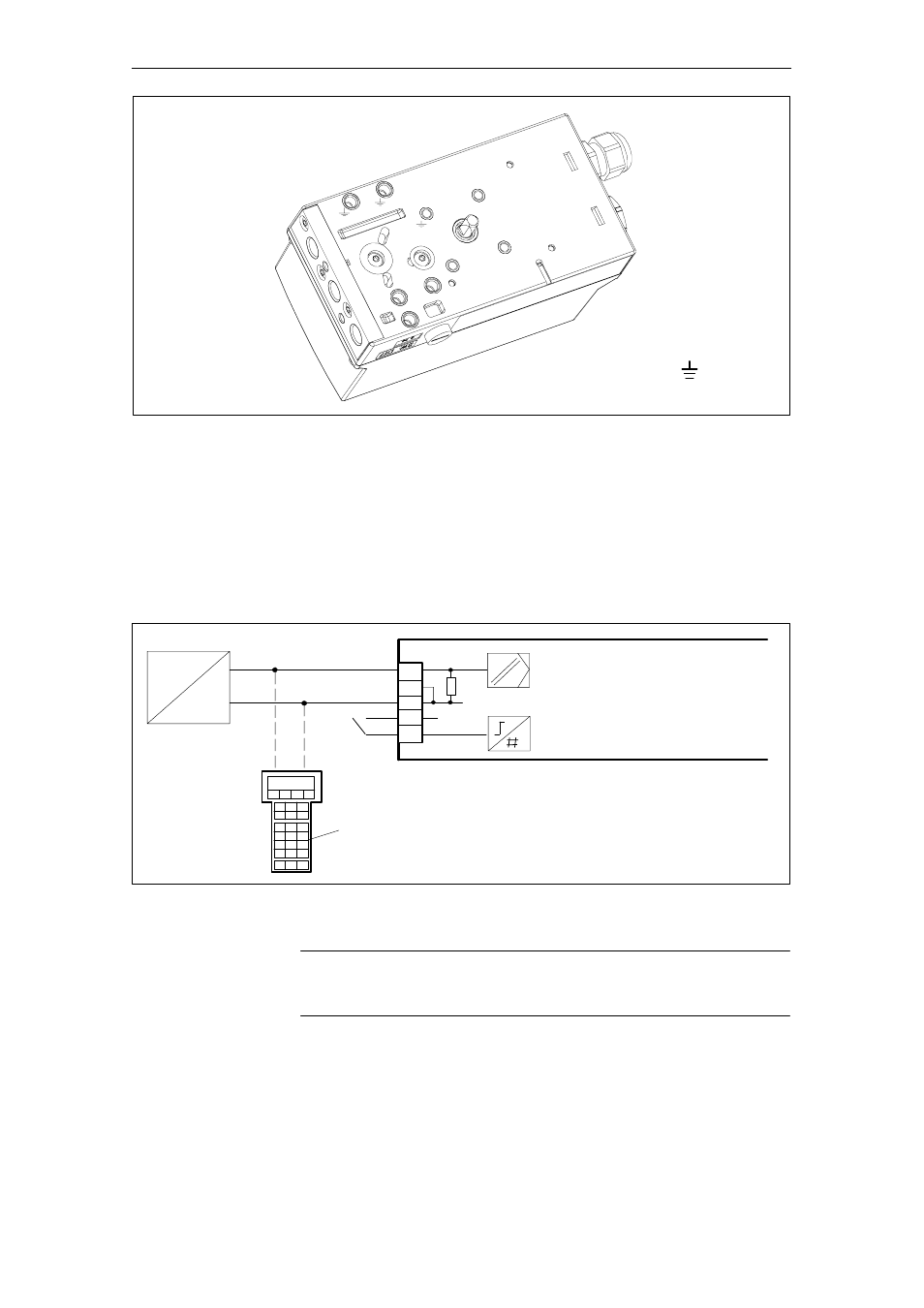

Figure 3-11 Base plate
3.4.1 Connection variants
3.4.1.1 Connection variant: not intrinsically safe
The electrical connection of the positioner can be made in the following
ways:
+
J
4 to 20 mA
Positioner
Digital inputs 1
6DR5010-xNxxx
6DR5020-xNxxx
6DR5011-xNxxx
6DR5110-xNxxx
6DR5120-xNxxx
6DR5111-xNxxx
6
7
8
9
10
+3 V
Only for:
6DR5110-xNxxx
6DR5120-xNxxx
6DR5111-xNxxx
HART Communicator
A
E
Figure 3-12 Two--wire connection non Ex
.
NOTE
The current i
y
≥ must be 3.6 mA to maintain the power supply.
Please also observe the warning on page 48!
