INSTALLATION, OPERATION & MAINTENANCE MANUAL (IOM) IOM-Ranger
12-13

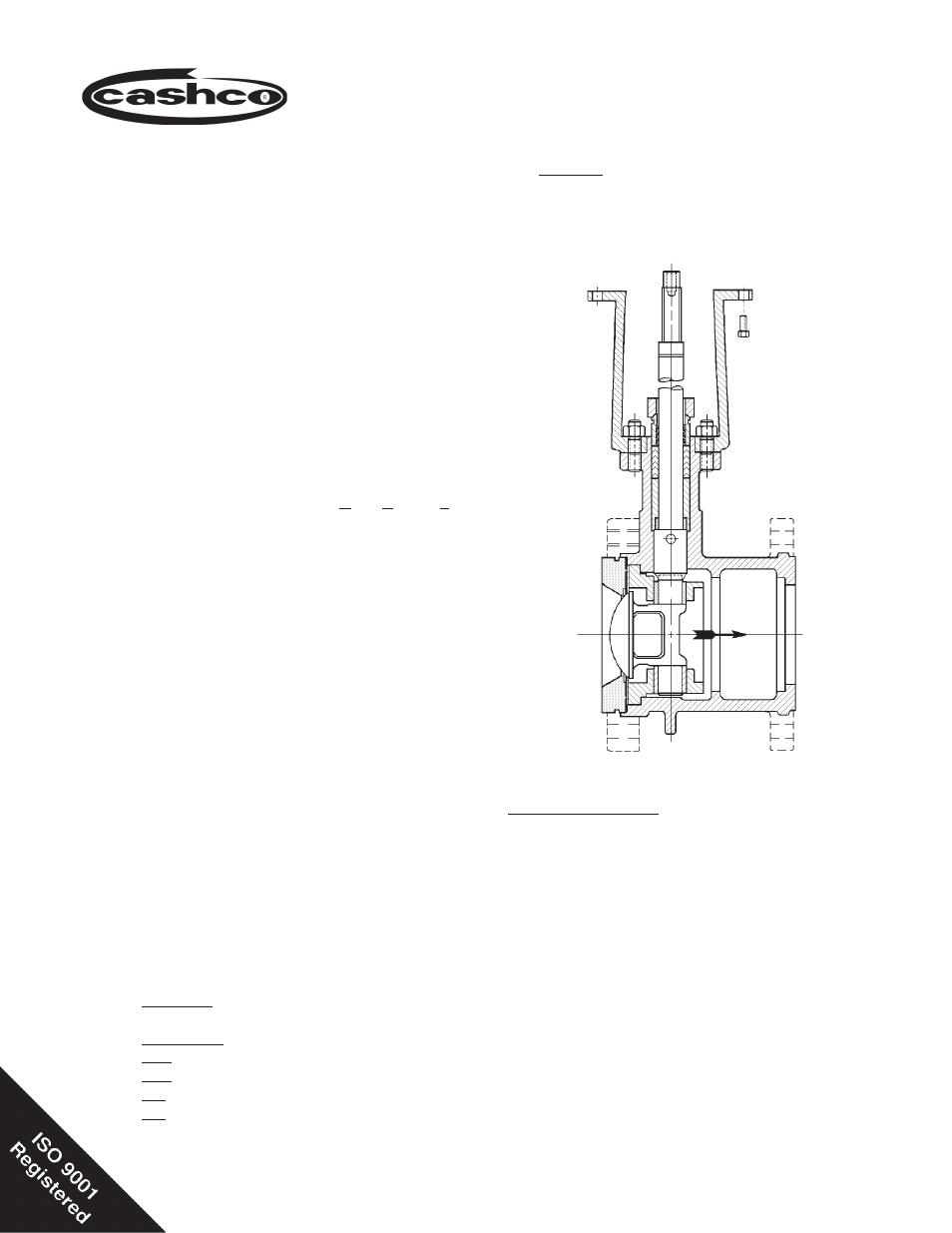

RANGER QCT
ROTARY CONTROL VALVE BODY ASSEMBLY
FLANGED OR FLANGELESS DESIGN
SECTION I
SECTION II
ABBREVIATIONS
ATC-FO – Air-to-Close, Fail Open
ATO-FC – Air-to-Open, Fail Close
CCW – Counter-Clockwise Rotation
CS – Cast Carbon Steel
CW – Clockwise Rotation
CWP – Cold Working Pressure
DIR – Direct Acting
DI – Ductile Iron
IAS – Instrument Air Supply
IOM – Installation, Operation and Maintenance
Manual
LOAD – Positioner Output Air Pressure
REV – Reverse Acting
RF – Raised Face
SIG – Output Signal from Instrument
SST – Cast or Wrought 316 Stainless Steel
V – Vent
I. DESCRIPTION AND SCOPE
This manual covers the body assembly of the Cashco
Ranger QCT. Available sizes include 1", 1-1/2", 2",
3", 4", 6" and 8" (DN25, 40, 50, 80, 100, 150, 200).
Flangeless DI bodies fi t 150 and 300 lb. RF fl anges.
Flangeless CS and SST bodies, all sizes, fi t 150, 300
and 600 lb. RF fl anges. Integral fl anged CS and SST
bodies, sizes 1" through 3", mate with 150, 300 and
600 lb. RF fl anges. Integral fl anged CS and SST bod-
ies, sizes 4", 6" and 8", mate with 150 and 300 lb. RF
Flanges. All sizes of fl angeless construction may be
installed between PN40 fl ang es. Quick Change Trim
(QCT) is furnished as a stan dard feature and allows
use of several seal re tain ers and inserts to vary orifi ce
size, help control cav i ta tion and reduce noise. All trims
use 90° plug rotation. Dis as sem bly, in spec tion and
reassembly of the trim can be accomplished easily
without disturbing the packing, linkage or po si tion er
calibration. Trim parts are self-centering.
Either of Cashco's pneumatically actuated actuators,
Model 48 and Model 148, can be mounted to the
Ranger QCT body.
II. REFERENCES
Refer to Technical Bulletin Ranger-TB for complete
tech ni cal specifi cations coupled with either Cashco
Actuator Model 48 or 148.
www.cashco.com/techbulletins/ranger.pdf
Refer to following Installation, Operation & Main-
te nance Manuals (IOM’s) for either actuator and/or
devices that maybe mounted to a Model Range body:
Actuators: www.cashco.com/IOM/48.pdf
www.cashco.com/IOM/148.pdf
Positioners:
P/P: www.cashco.com/techbulletins/73.pdf
P/P: www.cashco.com/techbulletins/9540r.pdf
I/P: www.cashco.com/techbulletins/srd991.pdf
I/P: www.cashco.com/iom/PS2iom.pdf
