Cashco Siemens PS2 I/P - Manual (Page 44)

Preparing for Operation
44
SIPART PS2 Manual
A5E00074631-01
0%20 40 60 80 100%
1) 2)
3)
4)
5)
18
2
9
4.2
3
16
17
2
4.1
2
3
9
14
15

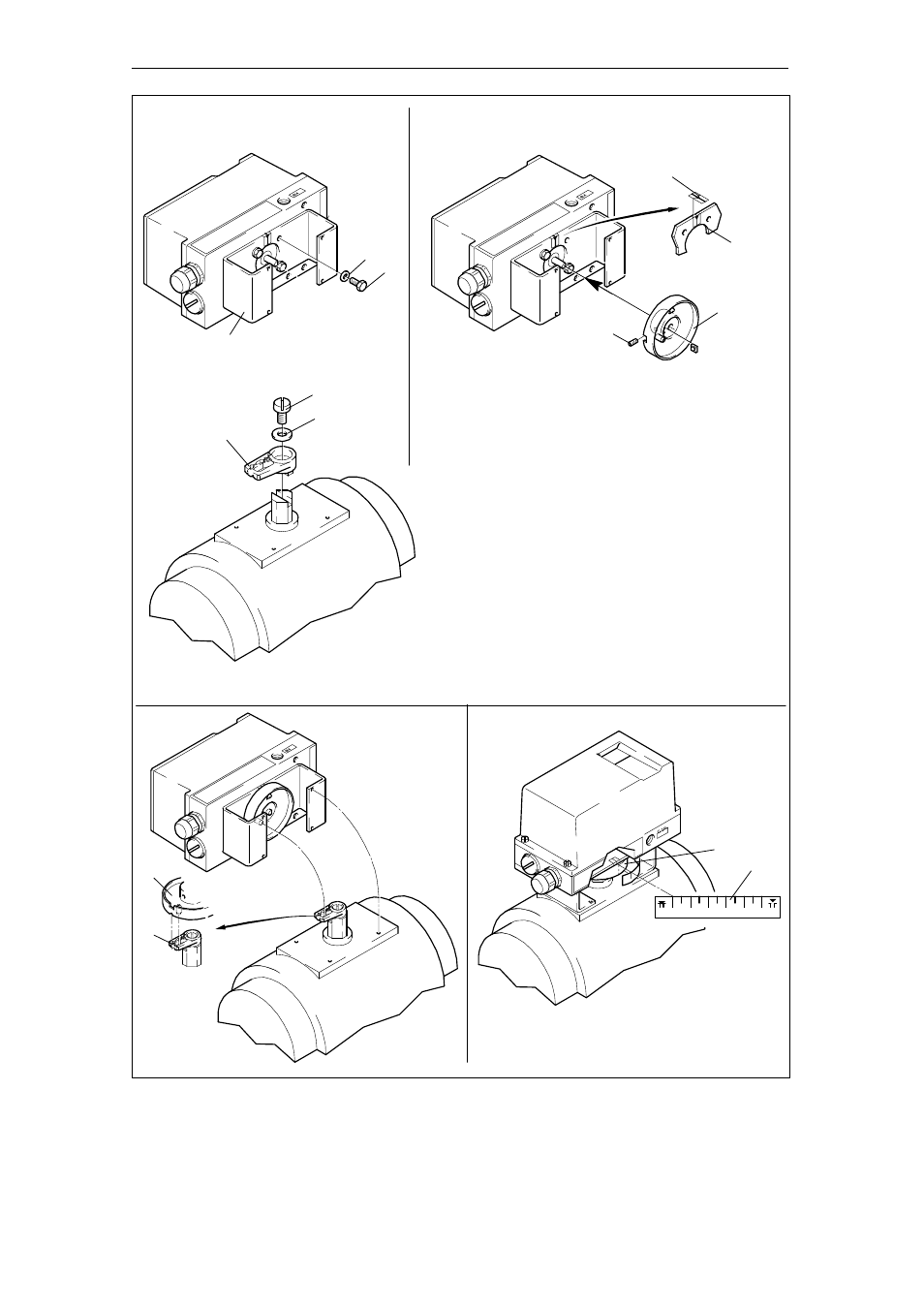

Figure 3-7 Assembly procedure (rotary actuator)
